15000 GVWR Deluxe Wood Floor Equipment Trailer

Request a Quote

$4,290.00 Factory Direct

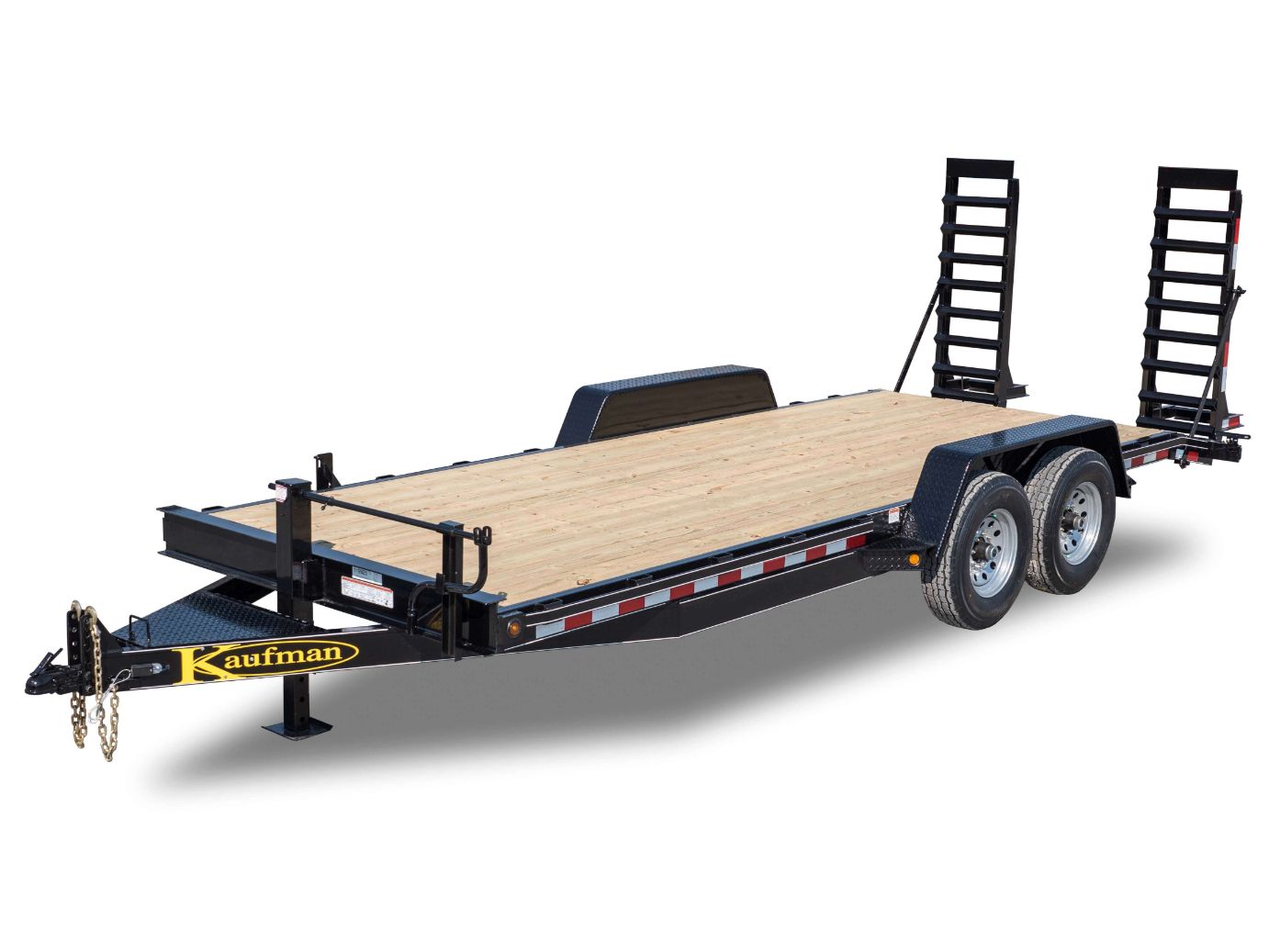

Our 15000 GVWR Deluxe Wood Floor Equipment Trailer is on of our best selling models! The frame is 6 in. channel with a 6″ channel full length wrap around tongue, a 12,000 lb. drop foot jack and a heavy duty cast iron adjustable coupler. Running gear is 7,000 lb. four wheel brake axles with heavy duty slipper spring suspension and 235/80 R16 load range E tires. A tool box with a lockable lid, stake pockets with rub rail, and heavy gauge diamond plate fenders are all included. We beef up the ramps with 4 in. channel ramp runners and include spring assist. A dovetail helps make an easy loading angle. Trouble free lighting is assured with a US made sealed modular wiring harness and lifetime LED lighting.



Contact our customer service team today to find out how easy it is to have a 15000 GVWR Deluxe Wood Floor Equipment Trailer delivered direct to your location.

Premium USA made tires – upgrade now available – see options

VIEW OUR ENTIRE LINE OF EQUIPMENT TRAILERS

CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444

Specifications
G.V.W.R. 15,000 lb.
Electrical Sealed modular wiring harness with LED lights
Frame 6 in. Channel, with 3 in. channel cross members
Dovetail 2 ft. Dove
Upper Deck N/A
Side Rail N/A
Tongue 6 in. Channel wrap around
Tires 235/80 R16 LRE (3,520 lb.)
Floors 2 in. Treated Wood
Coupler 2-5/16 in. Adjustable ball coupler
Safety Chains Heavy duty safety chains
Ramps 60 in. x 20 in. Flip up ramps. 4 in. channel ramp runners with 2x2x1/4 cleats. - with spring assist
Tie Downs Stake pockets and Rubrail
Deck Length 20 ft. (18 ft. flat + 2 ft. dovetail)
Deck Height 26 in.
Deck Width 82 in. Between fenders
Fenders Diamond plate fenders
Lower Deck N/A
Brakes All wheel electric brakes
Tailgate N/A
Wheels Silver or white mod (Based on stock)
Jack 12,000 lb. Drop foot jack
Axles 2-7,000 lb. e-z lube axles
Suspension Slipper springs
Toolbox Chain box with lockable lid standard
Finish Primed, 2 coats of automotive grade enamel, pin striped
Additional Options
Spare tire and rim $190.00
Load Range G (14 ply rating) all-steel radials (Chinese made - good quality) $340.00
Load Range G (14 ply rating) all-steel radial - spare tire (Chinese made - good quality) $275.00
Premium 235/85 R16 LRE USA made tires - Cooper Discoverer HT3 in NC - Firestone Transforce in NE $380.00
Premium 235/85 R16 LRE USA made spare tire - Cooper Discoverer HT3 in NC - Firestone Transforce in NE $285.00
Adjustable 2-5/16 in. ball and pintle ring $50.00
Removable fenders (each) $75.00
Gooseneck $700.00
6K Winch $950.00
9K Winch $1,150.00
20,000 GVWR Heavy Duty Package - Includes 3/7,000 lb. axles, required flat adjustable nose plate with pintle ring coupler, standard 6 in. channel frame with 5 in. channel frame doubler, 16 in. on center crossmembers, and heavy duty spring assist ramps (***Premium tire upgrade for this option requires special quote***) $1,400.00
No dovetail (Straight deck) $0.00
Cleated angle iron self-cleaning dovetail $100.00
No ramps (Straight deck) *Special deposit required $-80.00

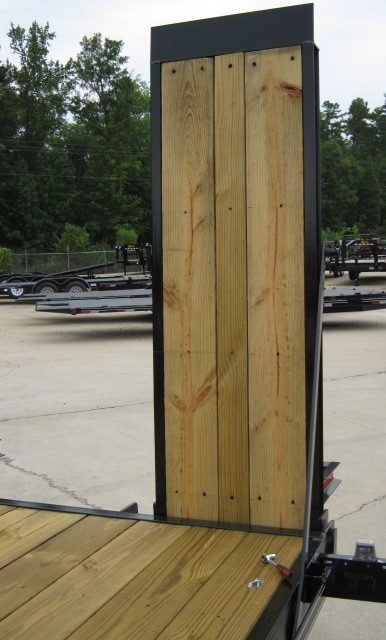

Wood lined ramps - 60 in. x 20 in. $100.00
Black paint standard. Any paint center optional color - 20 ft. standard length (5 dollars per foot of length) $100.00
Fork holders (requires measurement information) $200.00

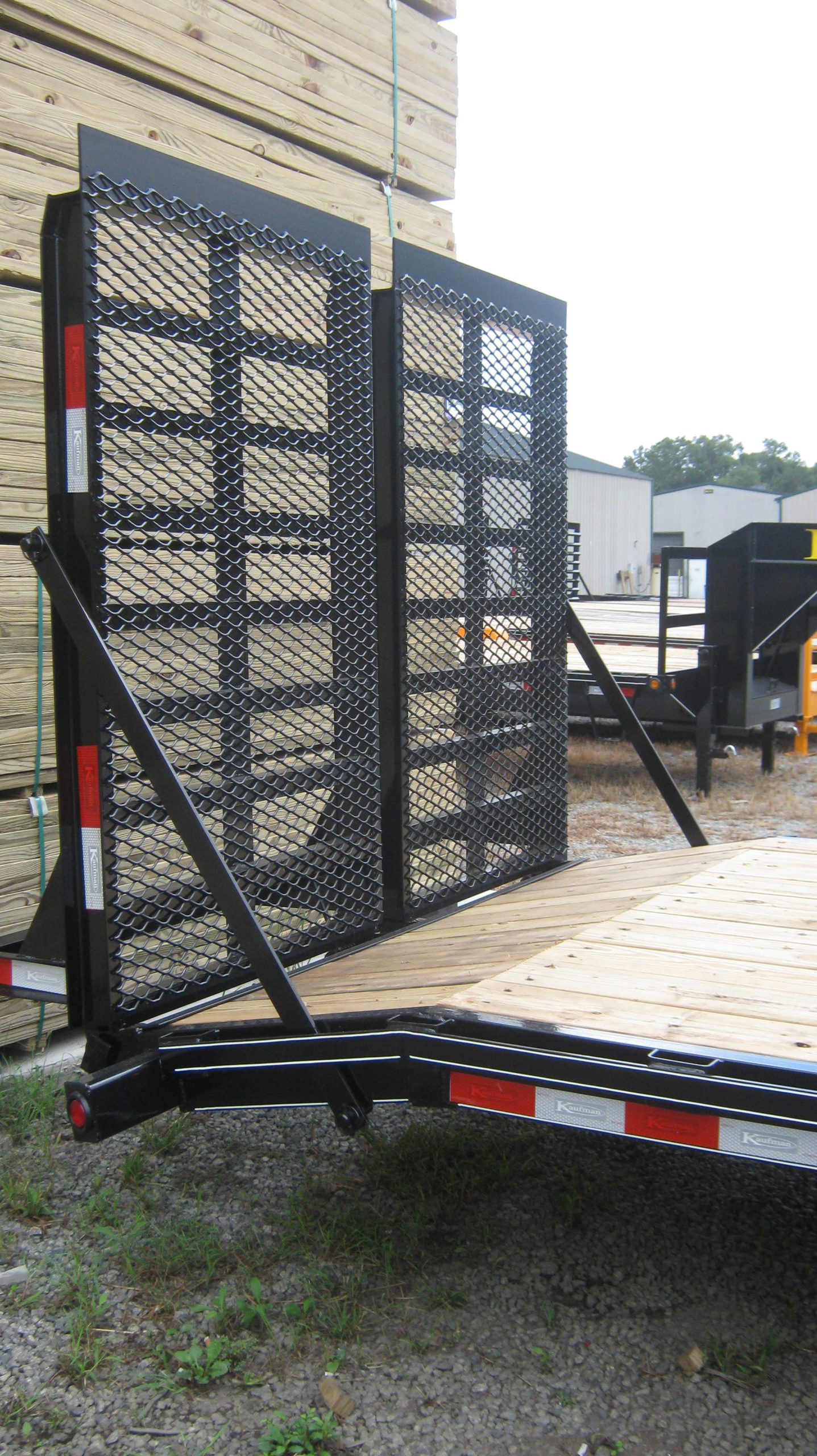

5 ft. Heavy duty spring assist split gate (Capacity 13,000 lb. piece of equipment) $500.00
Additional Lengths
Product Number Length Price Additional Info
FDW-7K-16D 16 ft. $4,270.00 Tongue: 6 in. Channel
Frame: 6 in. Channel
Crosspiece: 3 in. Channel
Centers: 16 in.
Ramp Runners: 4 in. Channel
FDW-7K-18D 18 ft. $4,280.00 Tongue: 6 in. Channel
Frame: 6 in. Channel
Crosspiece: 3 in. Channel
Centers: 16 in.
Ramp Runners: 4 in. Channel
FDW-7K-20D 20 ft. $4,290.00 Tongue: 6 in. Channel
Frame: 6 in. Channel
Crosspiece: 3 in. Channel
Centers: 16 in.
Ramp Runners: 4 in. Channel
FDW-7K-22D 22 ft. $4,490.00 Tongue: 6 in. Channel
Frame: 6 in. Channel with doubler
Crosspiece: 3 in. Channel
Centers: 16 in.
Ramp Runners: 4 in. Channel
FDW-7K-24D 24 ft. $4,690.00 Tongue: 6 in. Channel
Frame: 6 in. Channel with doubler
Crosspiece: 3 in. Channel
Centers: 16 in.
Ramp Runners: 4 in. Channel
FDW-7K-26D 26 ft. $4,990.00 Tongue: 6 in. Channel
Frame: 6 in. Channel with doubler
Crosspiece: 3 in. Channel
Centers: 16 in.
Ramp Runners: 4 in. Channel
FDW-7K-28D 28 ft. $5,190.00 Tongue: 6 in. Channel
Frame: 6 in. Channel with doubler
Crosspiece: 3 in. Channel
Centers: 16 in.
Ramp Runners: 4 in. Channel
