Triaxle Drop Deck Flatbed Trailer

Request a Quote

$23,590.00 Factory Direct

dropdeck-main-beam

Price Shown Does Not Include FET

Kaufman Trailer’s Tri-Axle Drop Deck Flatbed Trailer is built with full length fabricated beam frames. These cambered main frame beams are 24 in. deep in the main body and are manufactured with 80,000 psi high-tensile steel. Fleetcraft or Power Products 22,500 lb. airbrake oil bath axles ride on a Hutchens slipper spring suspension. A Haldex ABS braking system, spring brakes on all axles, and oak flooring are included. A US made Sealco wiring harness with lifetime LED lights are added features. This top quality drop deck flatbed trailer is a true industry leader and is built to last! Optional hydraulic ramps make this tri-axle drop deck flatbed trailer ideal for paving equipment.

Premium Continental tire upgrade now available – see options

VIEW OUR ENTIRE LINE OF FLATBED TRAILERS

CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444

Specifications
G.V.W.R. 70,000 lb. 13,500 lb. approx. empty wt., Capacity 56,500 lb. evenly distributed over full length of trailer. Concentrated load 46,500 lb. in 12 ft.
Electrical DOT approved lighting, US made sealed wiring harness, LED lights
Frame 24in.Fabricated main beam.Cambered, High Tensile,1 piece from front to rear of trailer
Dovetail 5 ft. Wood
Upper Deck 10 ft. Oak deck, with 2 ft. Oak slope, and 46 in. jumper ramps stored under slope.
Side Rail 8 in. channel
Tongue N/A
Tires 215/75 R17.5 LRH (4,540 lb.)
Floors Full oak floor with 4 in. crossmembers, 16 in. oncenter
Coupler SAE Kingpin hitch
Safety Chains N/A

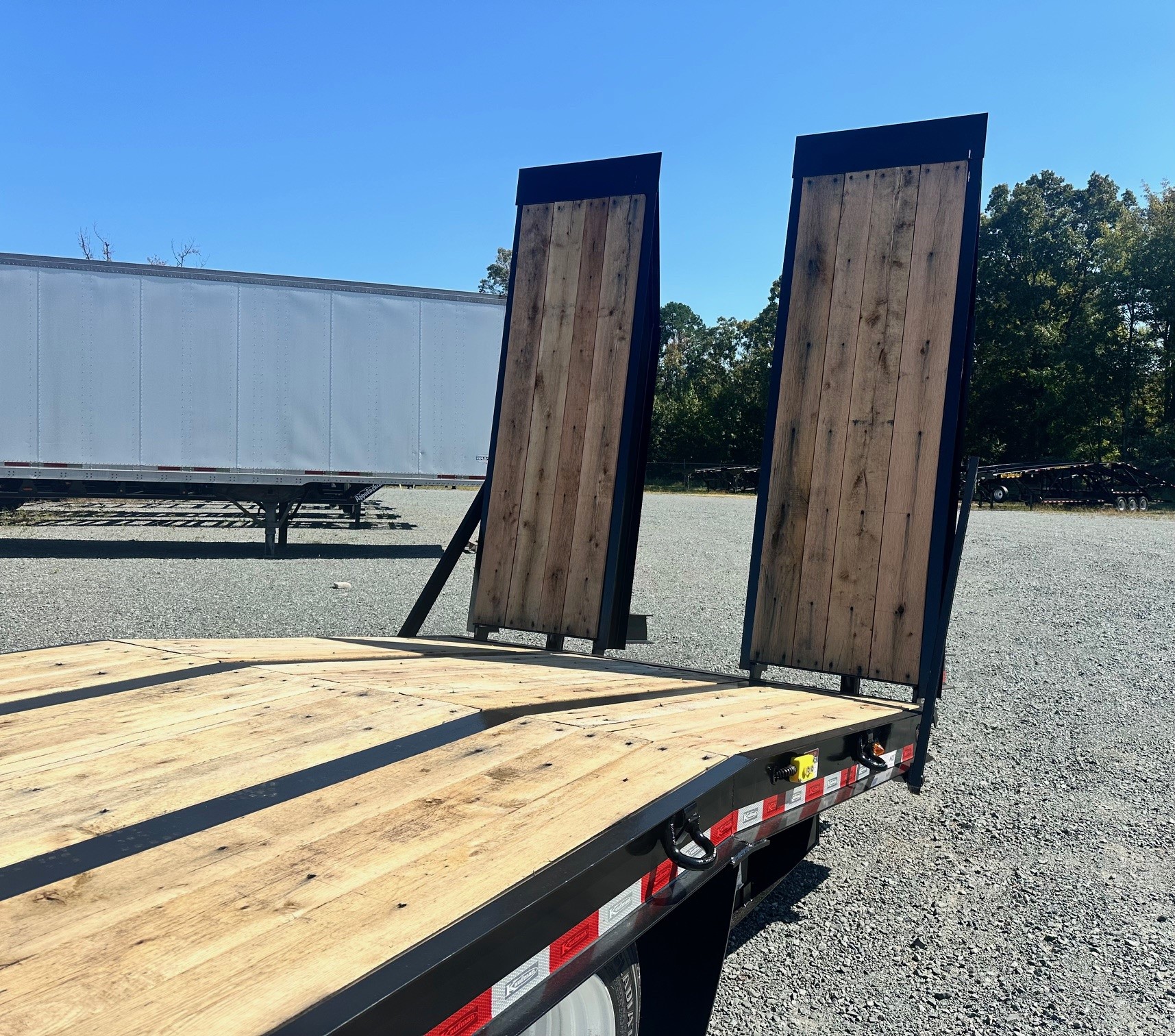

Ramps 72 in. x 28 in. Heavy duty oak lined, swing-up ramps with spring assist
Tie Downs D-rings
Deck Length 43ft. 6in (10 ft. upper + 2 ft. slope + 26 ft. lower + 5ft. dove)
Deck Height 39 in. (loaded) - with side steps standard
Deck Width Maximum 102 in.
Fenders N/A
Lower Deck 26 ft. Oak deck
Brakes All wheel air brake with spring lock each wheel (ABS)
Tailgate N/A
Wheels Heavy duty dual 17.5 in. wheels
Jack 2-25,000 lb. Dual speed jacks
Axles 3-22,500 Fleetcraft or Power Products oil bath axles
Suspension Hutchens slipper
Toolbox N/A
Finish Primed, 2 coats of automotive grade enamel
Additional Options
Spare tire and rim $300.00
Spare tire and rim (17.5 Continental upgrade) $400.00
215/75R 17.5 LRH Continental HTL 2 Long Distance - premium tire upgrade $1,500.00
Black paint standard. Any paint center optional color - 43.5 ft. standard length (10 dollars per foot of length) $435.00

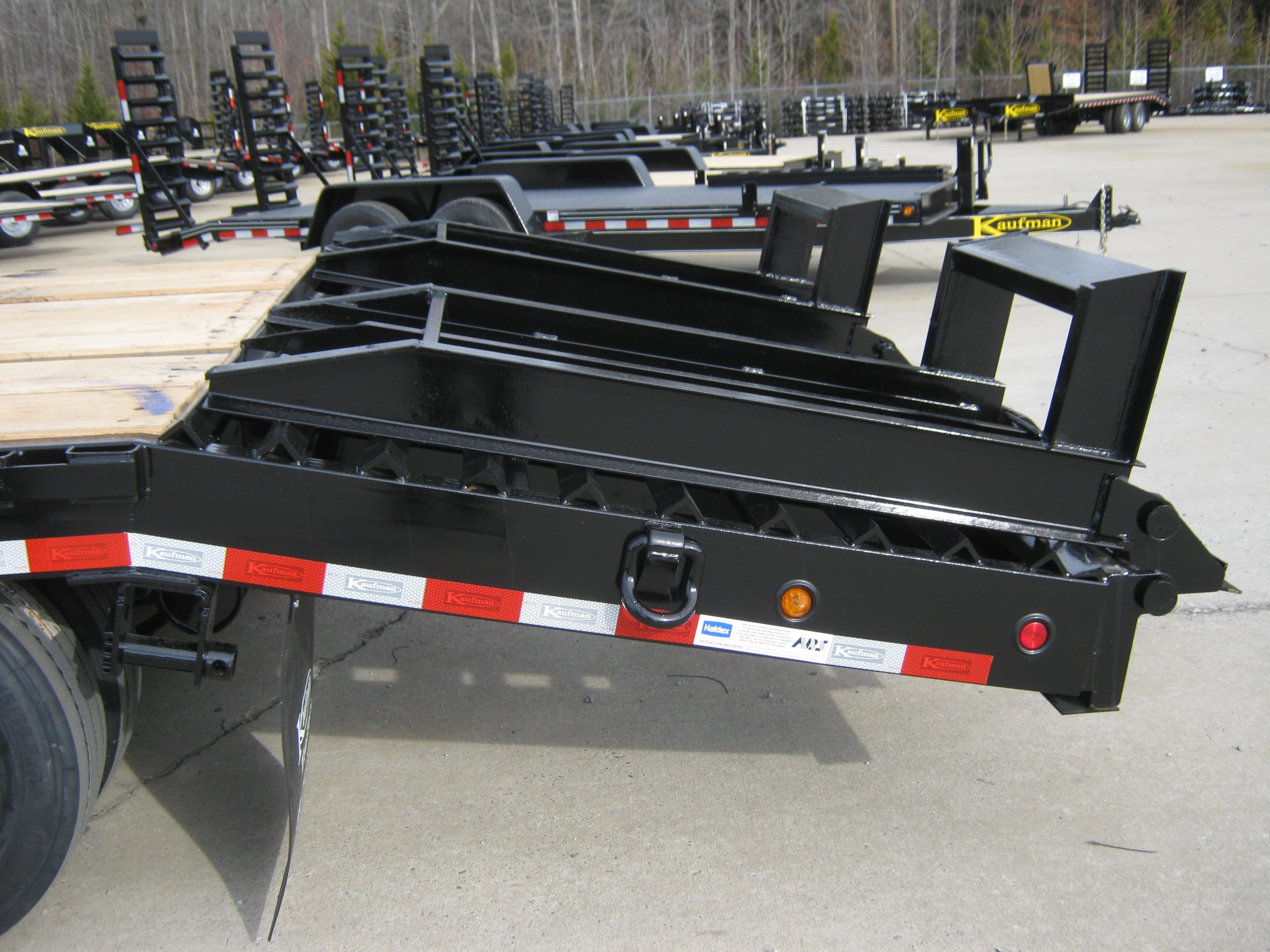

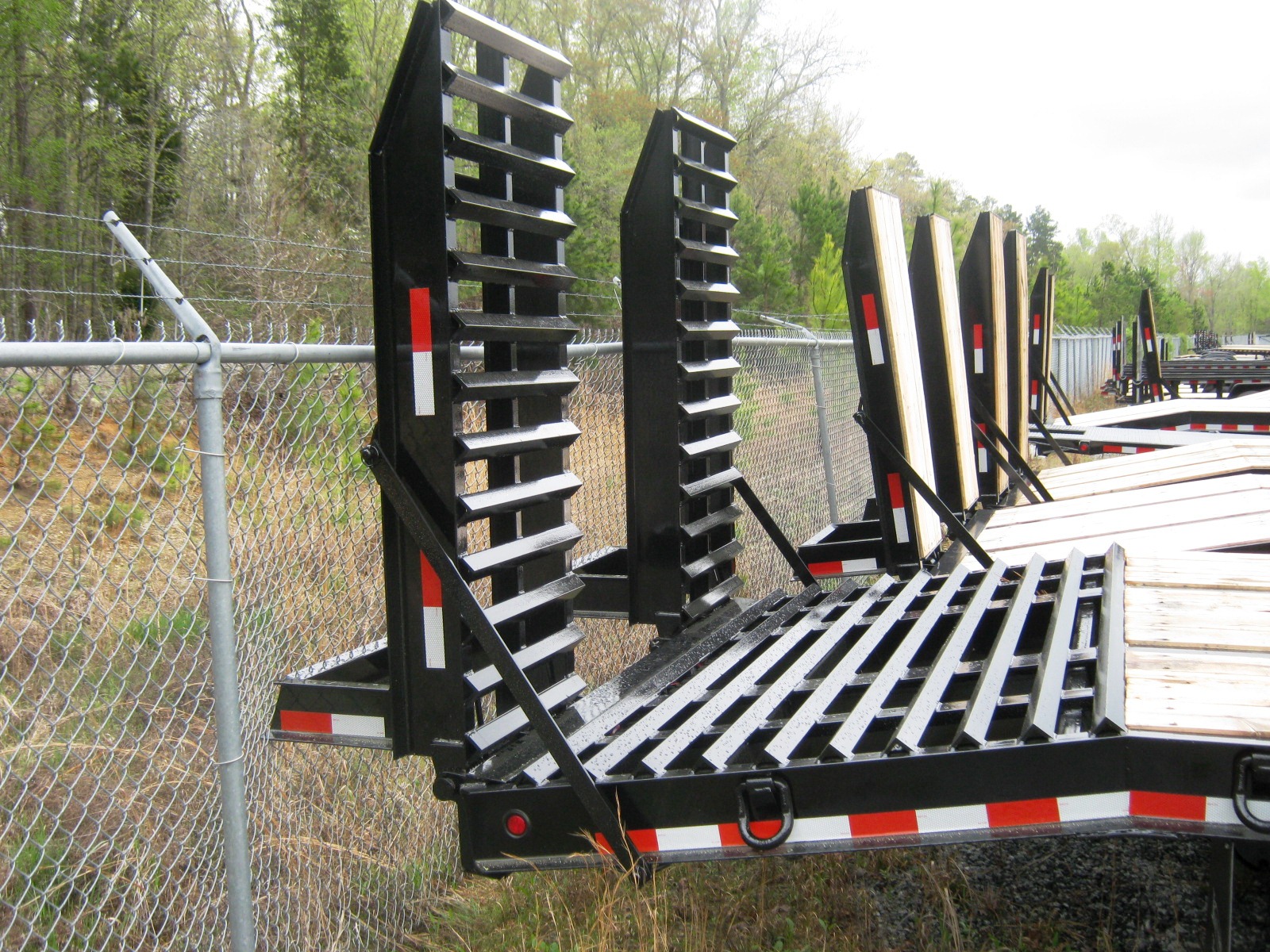

5 ft. Self-cleaning Dovetail $300.00

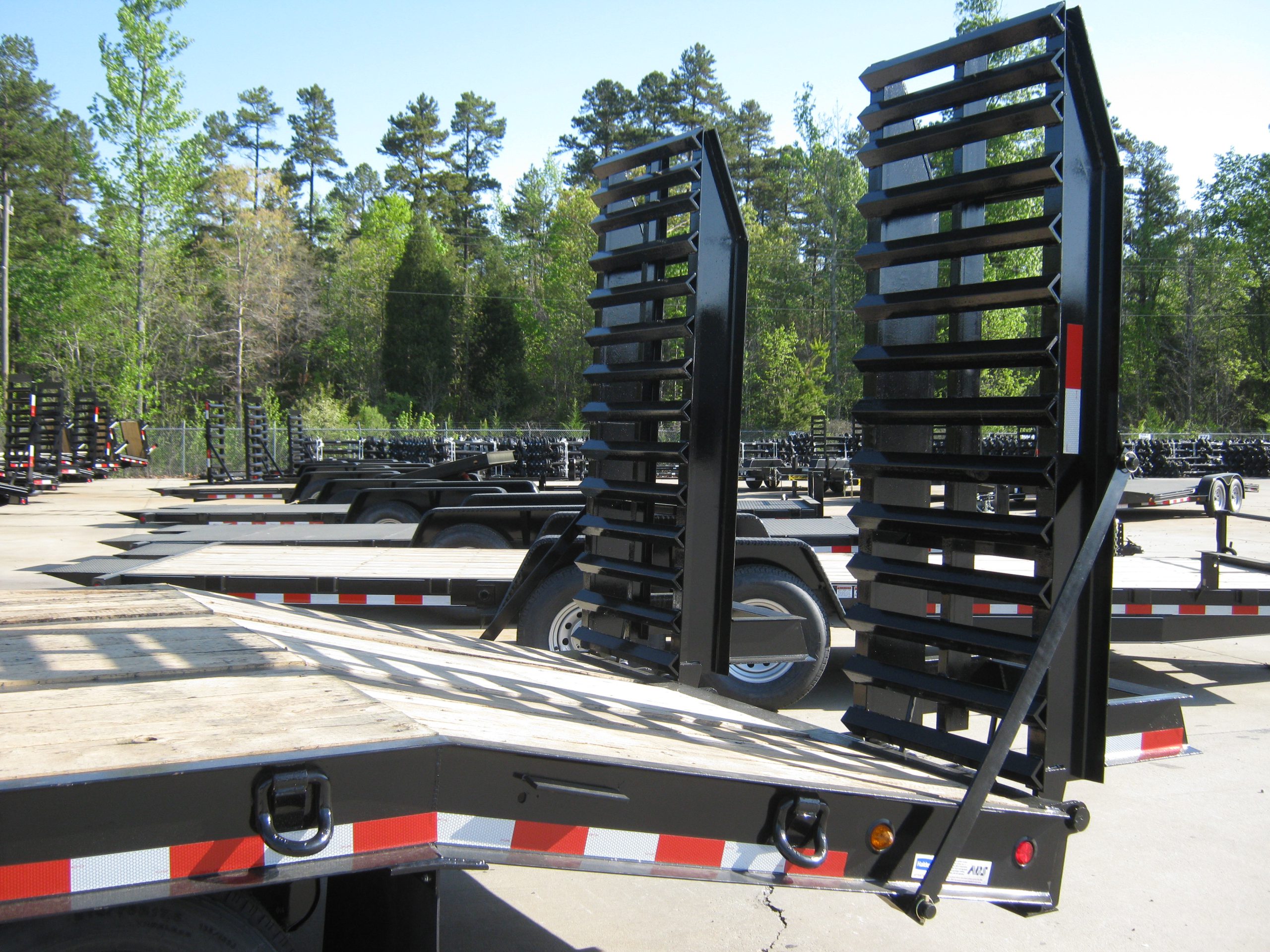

72 in. x 28 in. Heavy duty cleated ramps with spring assist $150.00

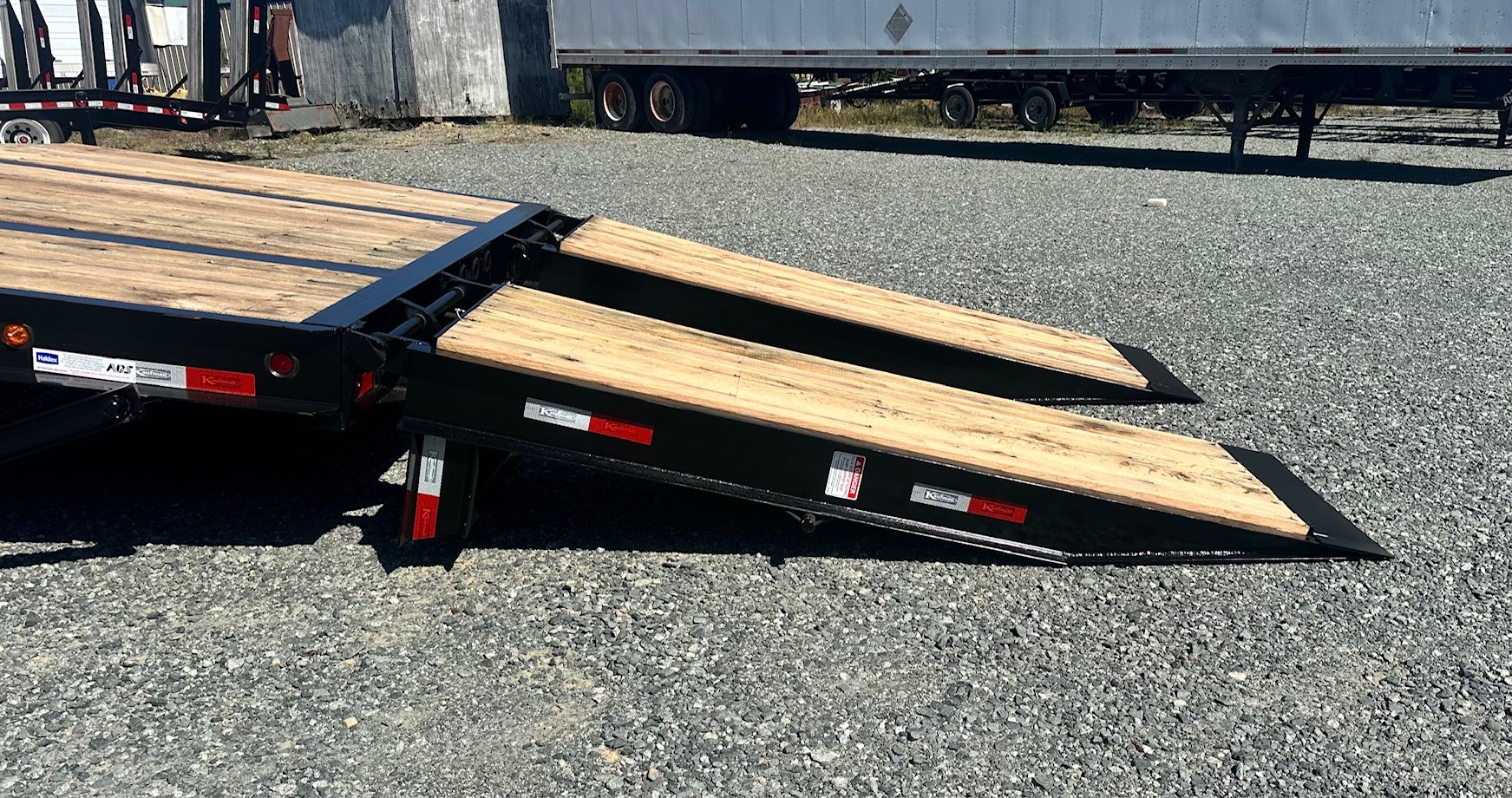

60 in. Wood-lined, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment. $350.00

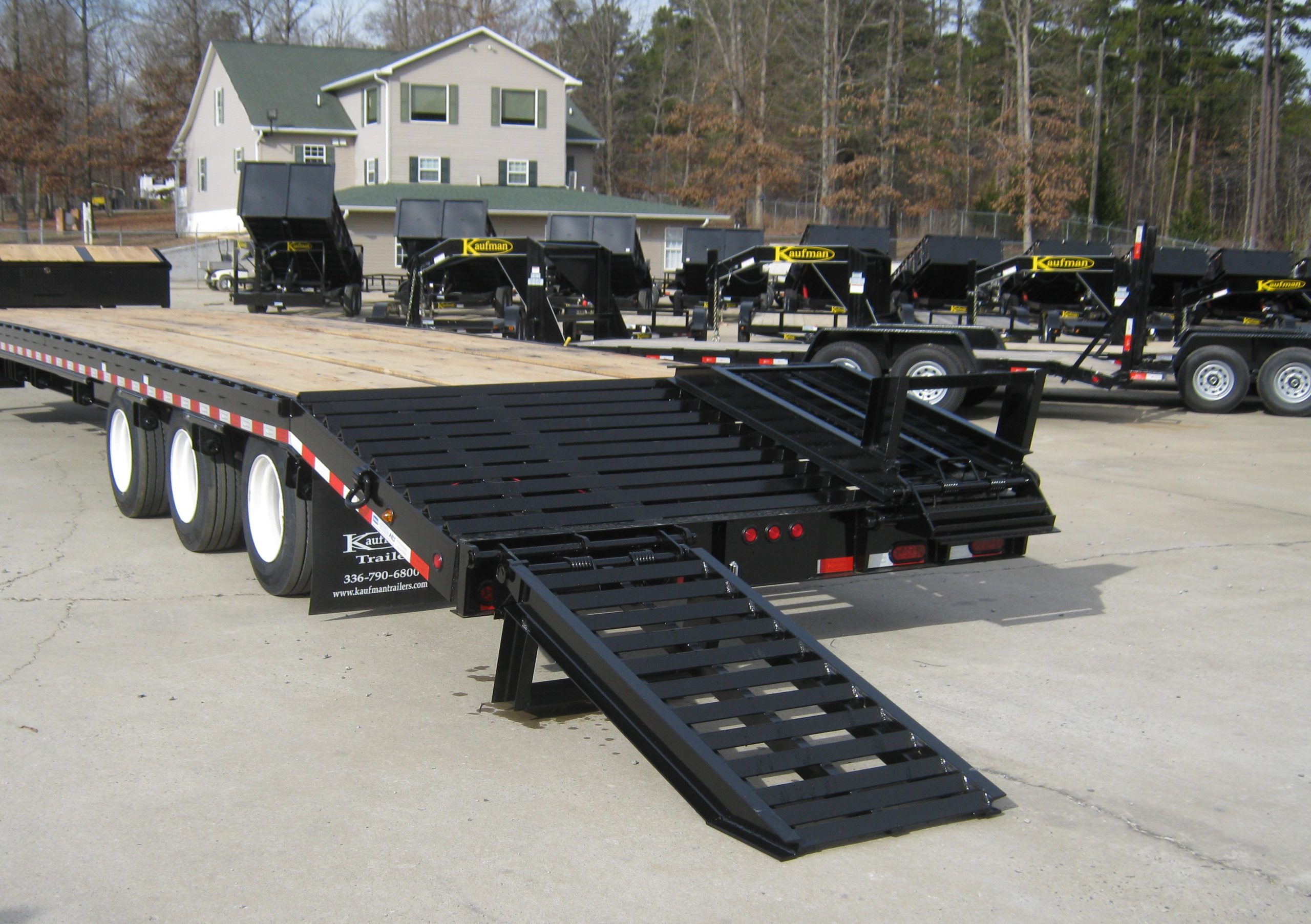

60 in. Cleated, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment. $450.00

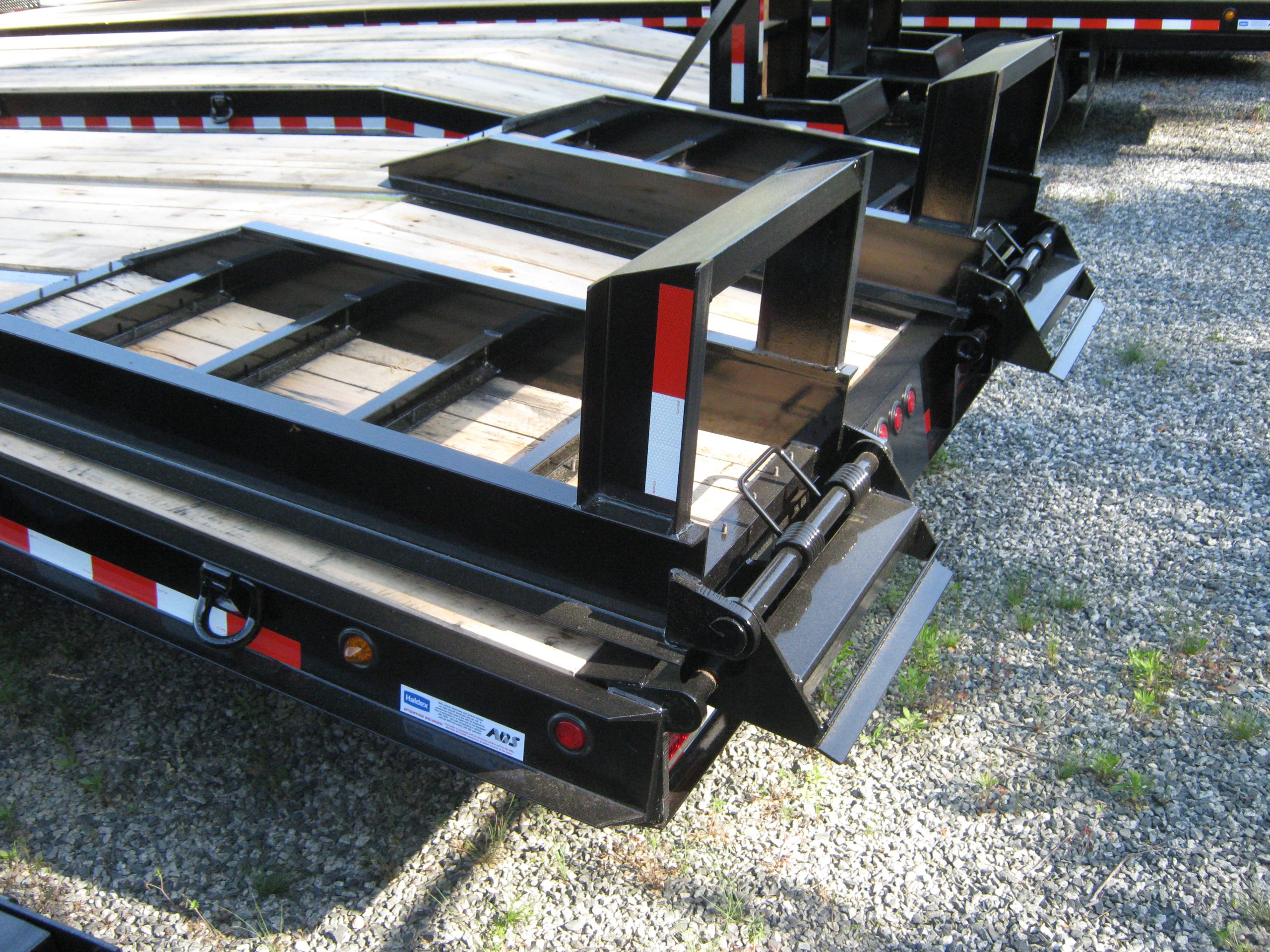

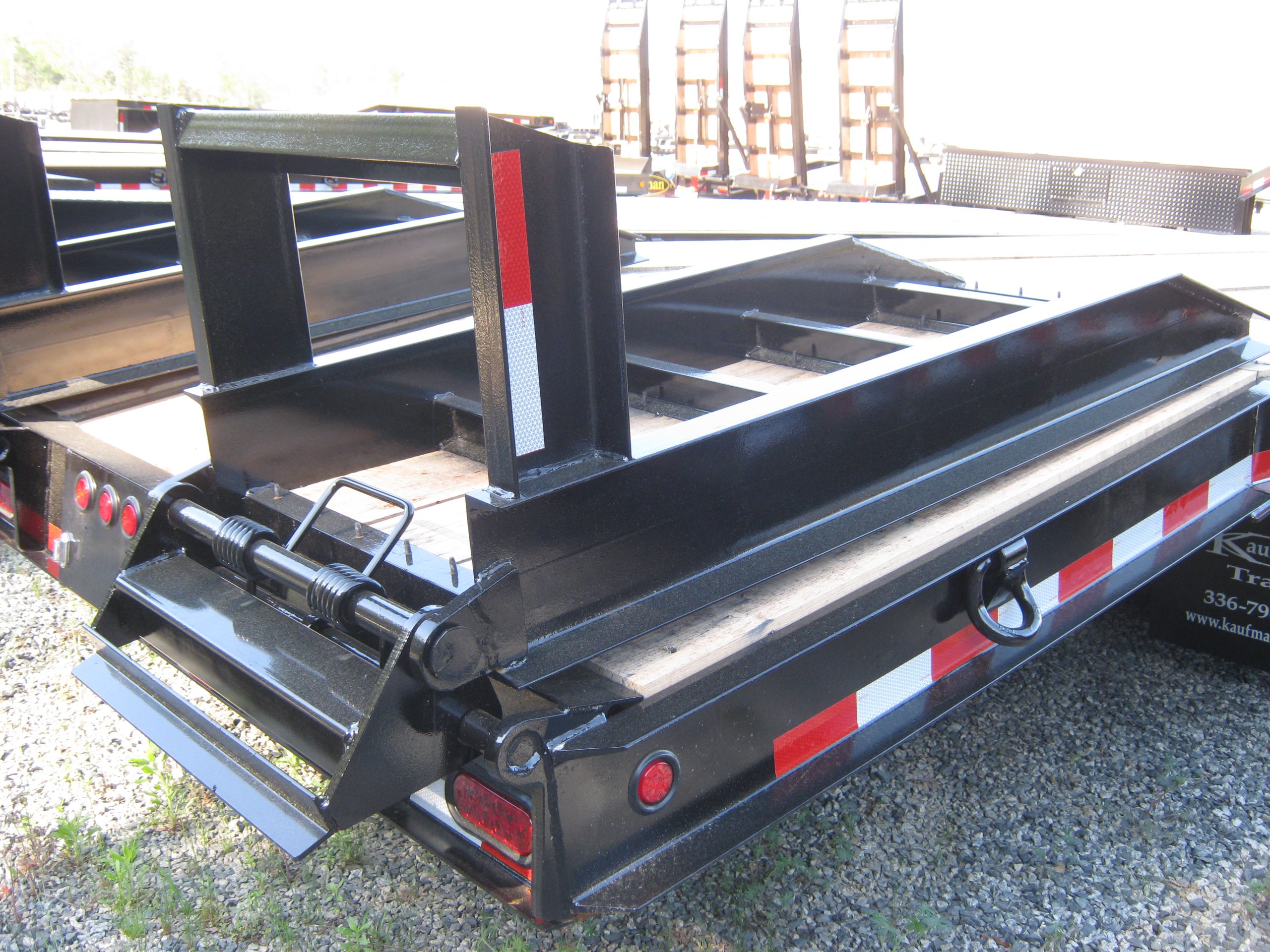

Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron - additional cost) Specify to your Sales Rep 5' OR 6' dovetail. 6' dovetail recommended for paving equipment $2,800.00
Additional Lengths
Product Number Length Price Additional Info
FAD-3/22.5K-43.5FabD 43 ft. 6 in. $23,590.00 Frame: 24in. Fabricated main beam
Crosspiece: 4 in. Channel, pierced
Centers: 16 in.
Side Rail: 8 in. Channel
Ramp Runners: 8 in. Channel
FAD-3/22.5K-47.5FabD 47 ft. 6 in. $24,590.00 Frame: 24in. Fabricated main beam
Crosspiece: 4 in. Channel, pierced
Centers: 16 in.
Side Rail: 8 in. Channel
Ramp Runners: 8 in. Channel
FAD-3/22.5K-51.5FabD 51 ft. 6 in. $25,590.00 Frame: 24in. Fabricated main beam
Crosspiece: 4 in. Channel, pierced
Centers: 16 in.
Side Rail: 8 in. Channel
Ramp Runners: 8 in. Channel
