22500 GVWR Tri-axle Flatbed Trailer

Request a Quote

$6,490.00 Factory Direct

Kaufman’s medium duty Standard 22500 GVWR Tri-axle Flatbed Trailer features a 12 in. I-beam one-piece mainframe and cold formed tongue with 3 in. channel stacked cross-members on 24 in. centers and 6 in. outer rails. It has 20 ft. of flatbed with a 5 ft. dovetail and 5 ft. cleated spring assist ramps for easy loading of equipment. Three 7,000 lb. electric brake axles with heavy duty slipper spring suspension, and radial tires gives a long lasting and durable running gear. A heavy duty 12,000 lb. drop foot jack, stake pockets with rub rail, treated wood flooring, sealed beam lighting, and an adjustable pintle ring complete the standard features on this 22500 GVWR Tri-axle Flatbed Trailer.

Kaufman Trailers expert customer service team can help with all your trailer needs.

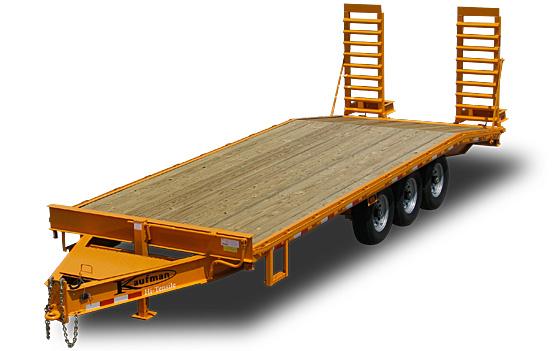

TRAILER IS SHOWN IN OPTIONAL YELLOW.

Layover Level Ramp option not recommended for Steel Tracked Equipment (Dozers, Trackhoes, etc.) No Ramp warranty for this use.

Premium USA made tires – upgrade now available – see options

VIEW OUR ENTIRE LINE OF FLATBED TRAILERS

CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444

Specifications
G.V.W.R. 22,500 lb.
Electrical DOT approved lights, wiring, and connectors
Frame 12 in. I-beam, with 3 in. channel crossmembers 24 in. on center
Dovetail 5 ft. Wood Dove
Upper Deck N/A
Side Rail 6 in.
Tongue Cold formed
Tires 235/80 R16 LRE (3,520 lb.)
Floors 2 in. Treated Wood
Coupler Adjustable pintle eye
Safety Chains Heavy duty safety chains
Ramps 60 in. x 24 in. Heavy duty flip up ramps, with spring assist
Tie Downs Stake pockets and Rubrail
Deck Length 25 ft. (20 ft. flat + 5 ft. dovetail)
Deck Height 35 in. With side steps standard
Deck Width Maximum 102 in.
Fenders N/A
Lower Deck N/A
Brakes All wheel electric brakes
Tailgate N/A
Wheels Silver or white mod (Based on stock)
Jack Single 12,000 lb. drop foot jack
Axles 3-7,000 lb. e-z lube axles
Suspension Slipper springs
Toolbox Toolbox with lockable lid
Finish Primed, 2 coats of automotive grade enamel, pin striped
Additional Options
Spare tire and rim $190.00
Load Range G (14 ply rating) all-steel radials (Chinese made - good quality) $510.00
Load Range G (14 ply rating) all-steel radial - spare tire (Chinese made - good quality) $275.00
Premium 235/85 R16 LRE USA made tires - Cooper Discoverer HT3 in NC - Firestone Transforce in NE $570.00
Premium 235/85 R16 LRE USA made spare tire - Cooper Discoverer HT3 in NC - Firestone Transforce in NE $285.00
Longer ramp bars for closer center adjustment (Standard adjustment is 32 in. Optional adjustment is 38 in. in from outside of floor to inside edge of ramp) $50.00
Sliding 4 in. ratchets (each) - requires sliding track $20.00
Fork holders (requires measurement information) $200.00
Dual 12K jacks $140.00
Dual 12K two speed jacks $290.00
9K Winch $1,150.00
Lifetime LED lights $120.00
Sealed wiring harness $170.00
Sealed wiring harness WITH lifetime LED lights $250.00
Sliding track for ratchets (per foot) $18.00
No dovetail and no ramps (Straight deck) *Special deposit required $-99.00
Self cleaning dovetail $250.00
Pop-up cleated dovetail (19 ft. flat + 4 ft. pop-up dove) $300.00
Third swing up ramp $150.00
Slide-in ramp for tri-axle tractor 150 $.00
2 - 5 ft. Wedge shaped, lay-flat spring assist ramps $200.00
3 - 5 ft. Wedge shaped, lay-flat spring assist ramps $400.00
5 ft. Wedge shaped, lay-flat spring assist ramps WITH cleated center popup $400.00
Crossmembers 16 in. on center $200.00
Torque tube $100.00
Black paint standard. Any paint center optional color - 23 ft. standard length (7 dollars per foot of length) $161.00
