25000 GVWR Tandem Dual Flatbed Trailer – 25 ft. – Deluxe
$12,490.00 Factory Direct
Kaufman Trailer’s heavy duty Deluxe 25000 GVWR Tandem Dual Flatbed Trailer has 20 ft. of flatbed with a 5 ft. self-cleaning, cleated angle iron dovetail and 5 ft. cleated spring assist ramps. Construction begins with a one piece 12 in. at 16 lb./ft. high tensile main beam frame and tongue. The tongue is cold formed in a hydraulic press. Pierced crossmember construction – on 16 in. centers – with 6 in. channel outer rails give the best frame in the industry! 10,000 lb. oil-bath electric brake dual axles, heavy duty slipper spring suspension, and 16 in. radial tires give a long lasting running gear. A heavy duty 12,000 lb. drop foot jack, stake pockets with rub rail, tool tray with a lockable lid, treated wood flooring, and an adjustable pintle eye are all standard features. We use a US made sealed modular wiring harness and lifetime LED lights to make this 25000 GVWR Tandem Dual Flatbed Trailer an industry leader. It is an outstanding value and one of our best selling models!
This 25000 GVWR Tandem Dual Flatbed Trailer can be delivered to you anywhere in the continental US. Call our customer service team at 866-455-7444 today!
See options for 12,000 lb. axles and 17.5″ radial tires. The GVWR does not increase as the frame size and nose plate that the pintle ring mounts to are still the same size and are the factors that limit the GVWR.

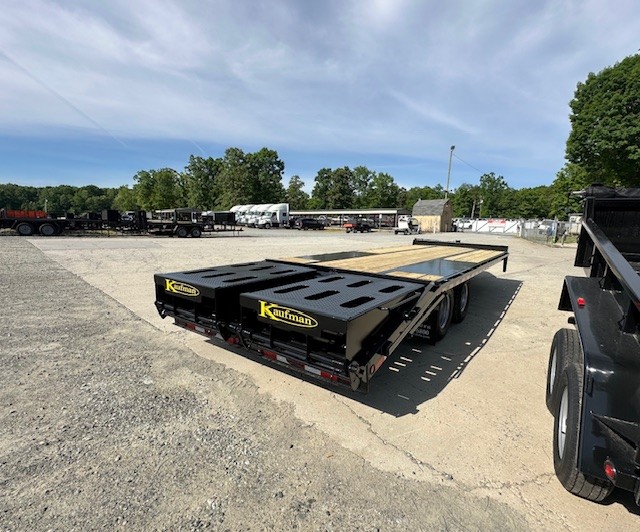

TRAILER IS SHOWN IN OPTIONAL YELLOW.
VIEW OUR ENTIRE LINE OF FLATBED TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications| G.V.W.R. | 25,000 lb. Load capacity 19,000 lb. with 6,000 lb. hitch load. |
| Electrical | Sealed modular wiring harness with LED lights |
| Frame | 12 in. Pierced i-beam, with 3 in. crossmembers 16 in. on center |
| Dovetail | 5 ft. Self-cleaning cleated angle iron |
| Upper Deck | N/A |
| Side Rail | 6 in. Channel |
| Tongue | Cold formed |
| Tires | 235/80 R16 LRE (3,097 lb.) |
| Floors | 2 in. Treated Wood |
| Coupler | Adjustable pintle eye - mounts on four bolt 1/2" thick 25,000 GVWR nose plate |
| Safety Chains | Heavy duty safety chains |

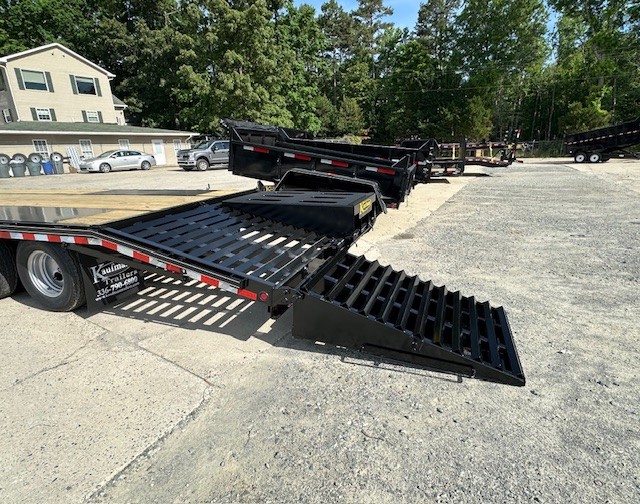

| Ramps | 60 in. x 18 in. Heavy duty flip up ramps, with spring assist |
| Tie Downs | Stake pockets and Rubrail |
| Deck Length | 25 ft. (20 ft. flat + 5 ft. dove) |
| Deck Height | 37 in. with side steps |
| Deck Width | Maximum 102 in. |
| Fenders | N/A |
| Lower Deck | N/A |
| Brakes | All wheel electric brakes |
| Tailgate | N/A |
| Wheels | Silver or white mod (Based on stock) |
| Jack | Single 12,000 lb. drop foot jack |
| Axles | 2-10,000 lb. Oil bath axles |
| Suspension | Slipper springs |
| Toolbox | Chain box with lockable lid standard |
| Finish | Primed, 2 coats of automotive grade enamel |
| Spare tire and rim | $260.00 |
| Dual 12K jacks | $140.00 |
| Dual 12K two speed jacks | $290.00 |
| 9K Winch | $1,250.00 |
| Torque tube | $100.00 |
| 12,000lb. Dexter Axles w/ Load Range H 215/75R 17.5" Tires | $3000.00 |
| Fork holders (requires measurement information) | $200.00 |
| Load Range G (14 ply rating) all-steel radials. | $1000.00 |
| Load Range G (14 ply rating) all-steel radial - spare tire | $330.00 |
| No dovetail and no ramps (Straight deck) *Special deposit required | $-99.00 |
| Pop-up cleated dovetail (3 piece) | $500.00 |
| Third swing up ramp | $200.00 |
| Slide-in ramp for tri-axle tractor | $200.00 |
| Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron) | $3,400.00 |
| Sliding 4 in. ratchets (each) - requires sliding track | $30.00 |
| Sliding track for ratchets (per foot) | $30.00 |
| Product Number | Length | Price | Additional Info |
|---|---|---|---|
| FHPP-10K-25D | 25 ft. | $12,490.00 | Tongue: Cold Formed Frame: 12 in. Pierced i-beam Crosspiece: 3 in. Channel Centers: 16 in. Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel |
| FHPP-10K-30D | 30 ft. | $13,490.00 | Tongue: Cold Formed Frame: 12 in. Pierced i-beam 19 PPF, with torque tube Crosspiece: 3 in. Channel Centers: 16 in. Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel |
| FHPP-10K-35D | 35 ft. | $14,490.00 | Tongue: Cold Formed Frame: 12 in. Pierced i-beam 19 PPF, with torque tube Crosspiece: 3 in. Channel Centers: 16 in. Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel |
