45000 GVWR Heavy Equipment Flatbed Trailer

Request a Quote

$14,660.00 Factory Direct

Price Shown Does Not Include FET

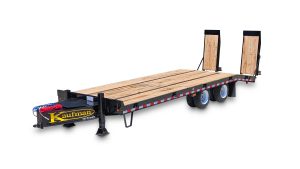

Kaufman Trailers 45000 GVWR Heavy Equipment Flatbed Trailer is an industry leader in value. Construction begins with one piece 14 in. at 22 lb./ft. high tensile main beams. We cold form the tongue in a hydraulic press with 4 in. channel pierced crossmember construction. Fleetcraft or Power Products 22.5K airbrake oil bath axles ride on a Hutchens suspension. A Haldex ABS braking system with spring brakes on both axles, oak flooring, Sealco modular wiring harness, and a tool tray with a lockable lid make this tandem axle flatbed trailer a fully equipped value. Our popular optional hydraulic ramps make this 45000 GVWR Heavy Equipment Flatbed Trailer ideal for paving equipment.

TRAILER IS SHOWN IN OPTIONAL YELLOW.

Premium Continental tire upgrade now available – see options

VIEW OUR ENTIRE LINE OF FLATBED TRAILERS

CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444

Specifications
G.V.W.R. 45,000 lb. 9,500 lb. empty wt., Capacity 35,500 lb.
Electrical DOT approved lights, connectors, and sealed wiring harness
Frame 14 in. Pierced i-beam, 22 ppf. with 4 in. channel crossmembers, 16 in. o.c.
Dovetail 5 ft. Oak
Upper Deck N/A
Side Rail 8 in. channel
Tongue Cold formed
Tires 215/75 R17.5 LRH (4,540 lb.)
Floors Oak
Coupler Adjustable pintle eye
Safety Chains Heavy duty safety chains

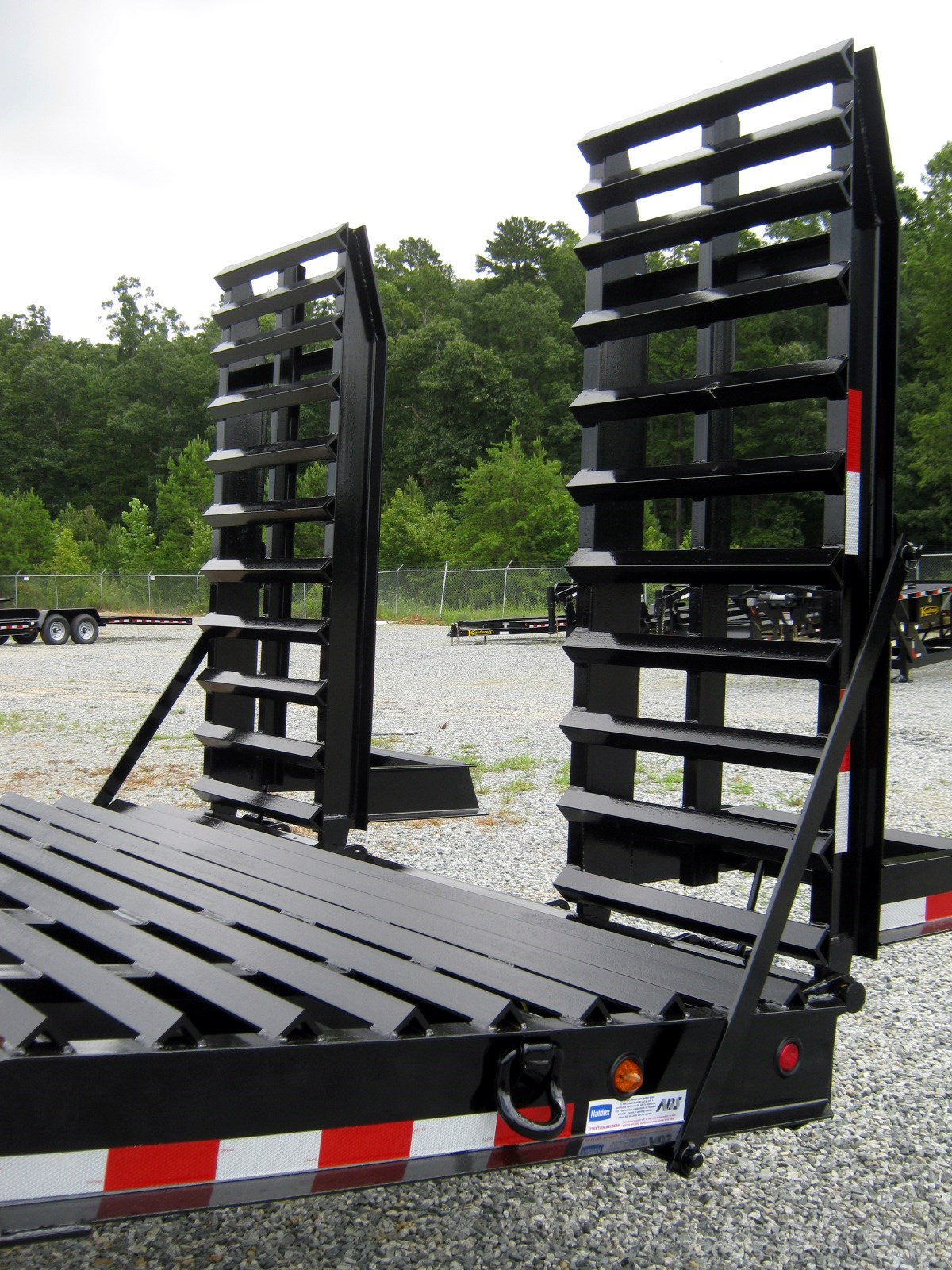

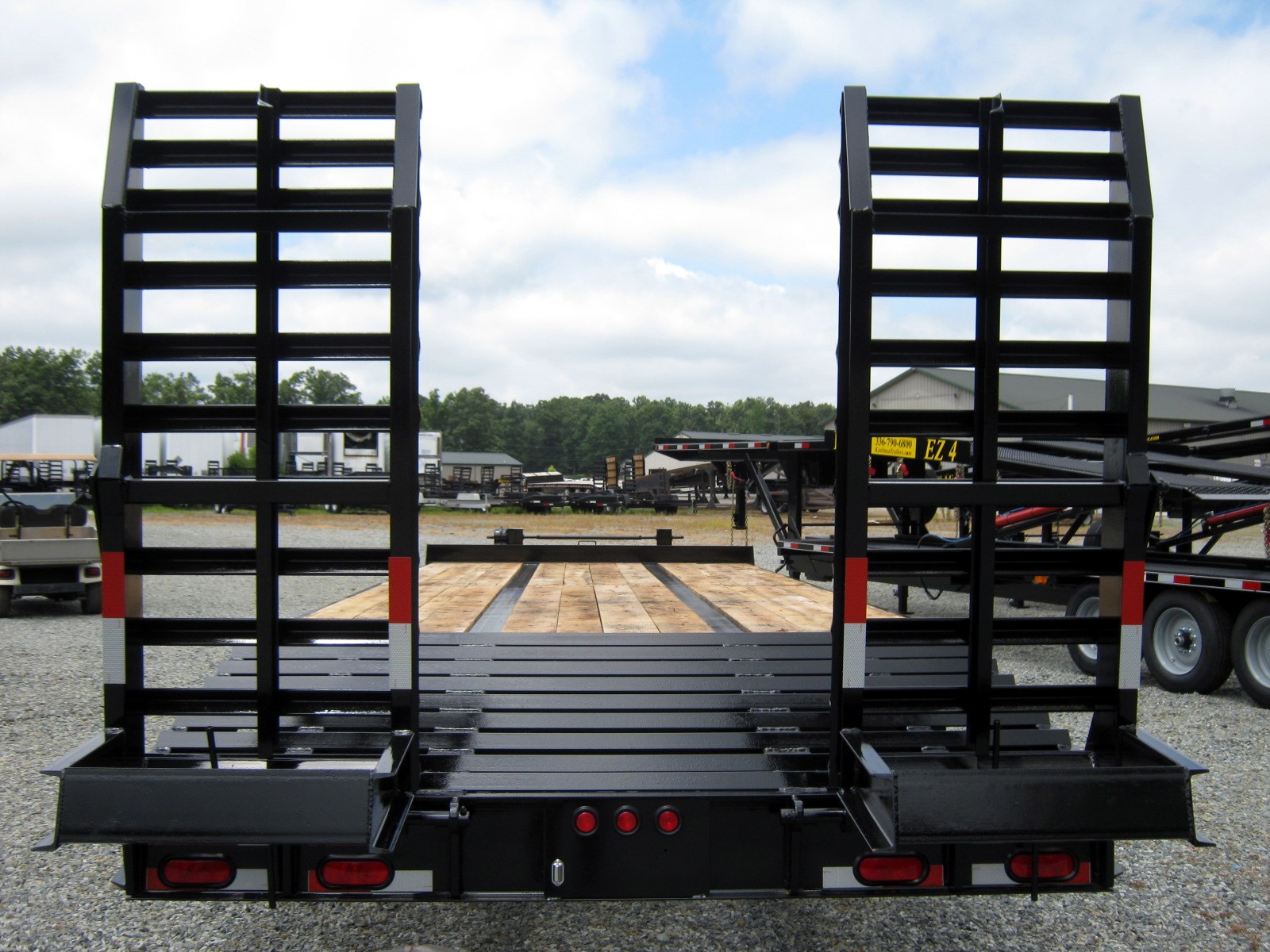

Ramps 66in. x 28in. Heavy duty 6 in. channel wood lined, Swing-up with spring assist
Tie Downs D-rings
Deck Length 25 ft (20 ft. flat + 5 ft. dove)
Deck Height 35 in. With side steps standard
Deck Width Maximum 102 in.
Fenders N/A
Lower Deck N/A
Brakes All wheel air brake with spring lock each wheel (ABS)
Tailgate N/A
Wheels Heavy duty dual 17.5 in. wheels
Jack 2-25,000 lb. Dual speed jacks
Axles 22,500 Fleetcraft or Power Products oil bath axles
Suspension Hutchens slipper
Toolbox Lockable lid on tongue
Finish Primed, 2 coats of automotive grade enamel
Additional Options
Spare tire and rim $300.00
Spare tire and rim (17.5 Continental upgrade) $400.00
215/75R 17.5 LRH Continental HTL 2 Long Distance - premium tire upgrade $1,000.00

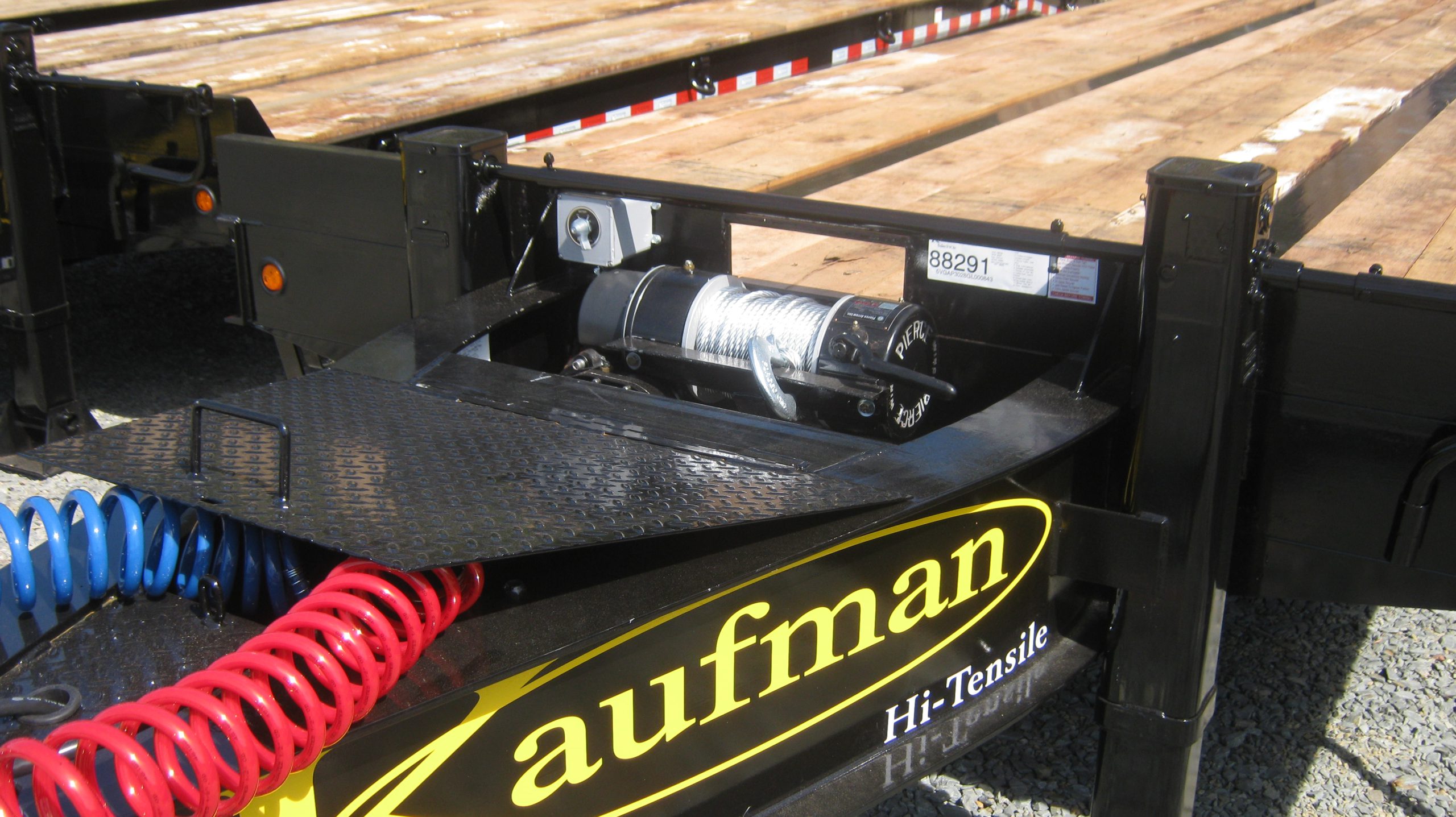

9K Winch $1,150.00
Black paint standard. Any paint center optional color - 25 ft. standard length (8 dollars per foot of length) $200.00
No dovetail or ramps (Straight deck) *Special deposit required $-99.00
5 ft. Self-cleaning (cleated angle iron) dove $300.00
66 in. x 28 in. self cleaning cleated iron ramps (6 in. channel ramp runner) $125.00
72 in. x 28 in. Heavy duty wood lined ramps with spring assist (upgrades to 8 in. channel ramp runners) $150.00
72 in. x 28 in. Heavy duty cleated angle iron ramps with spring assist (upgrades to 8 in. channel ramp runners) $275.00

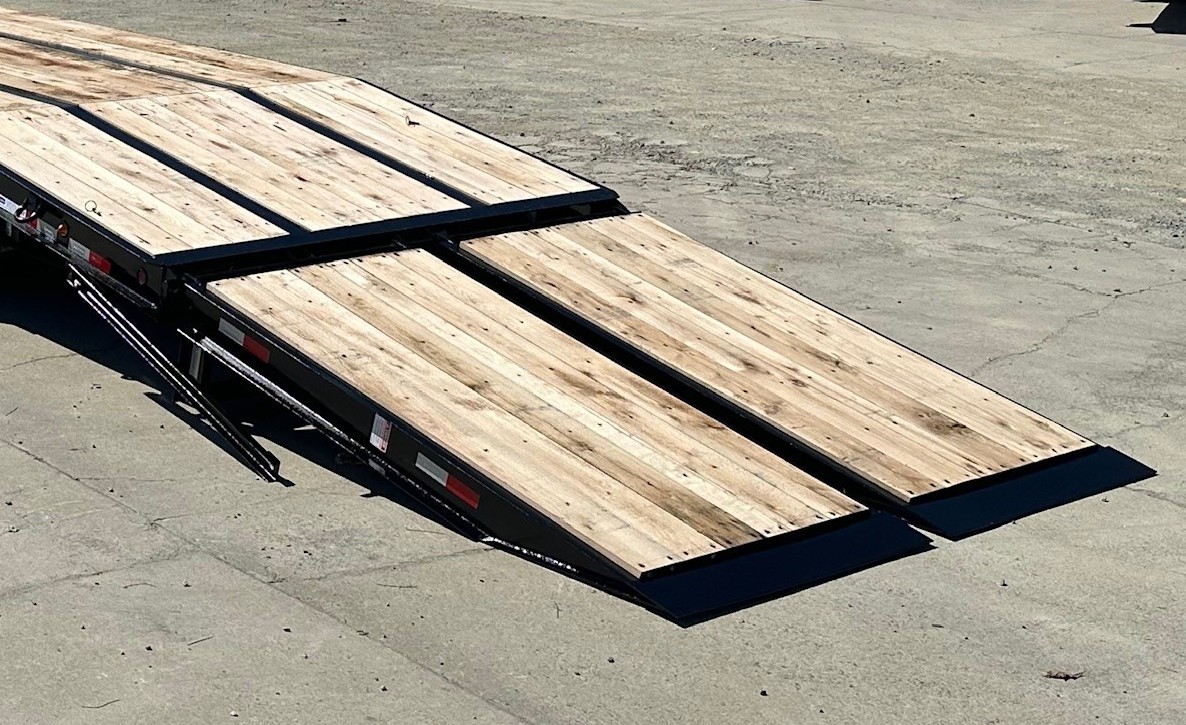

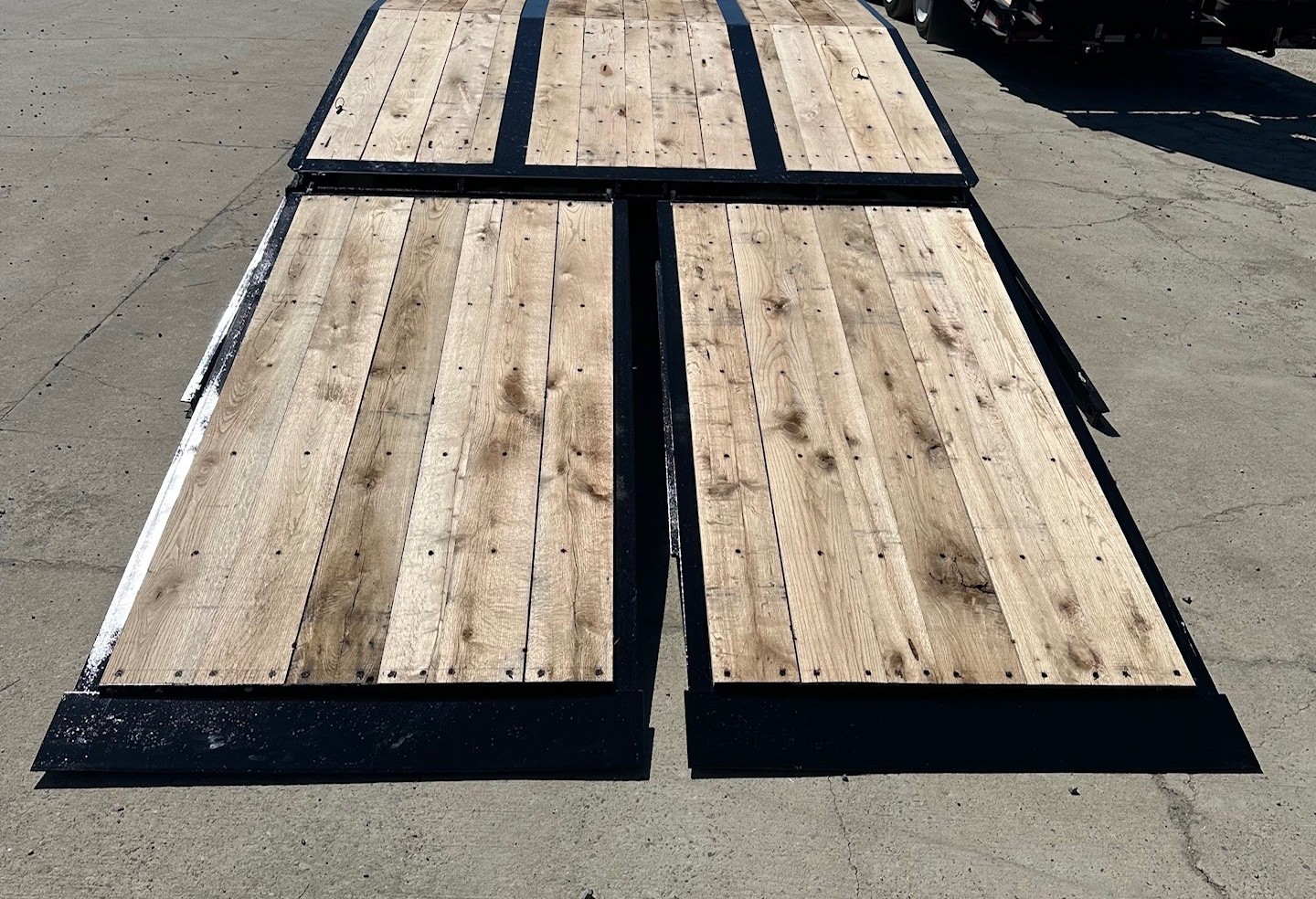

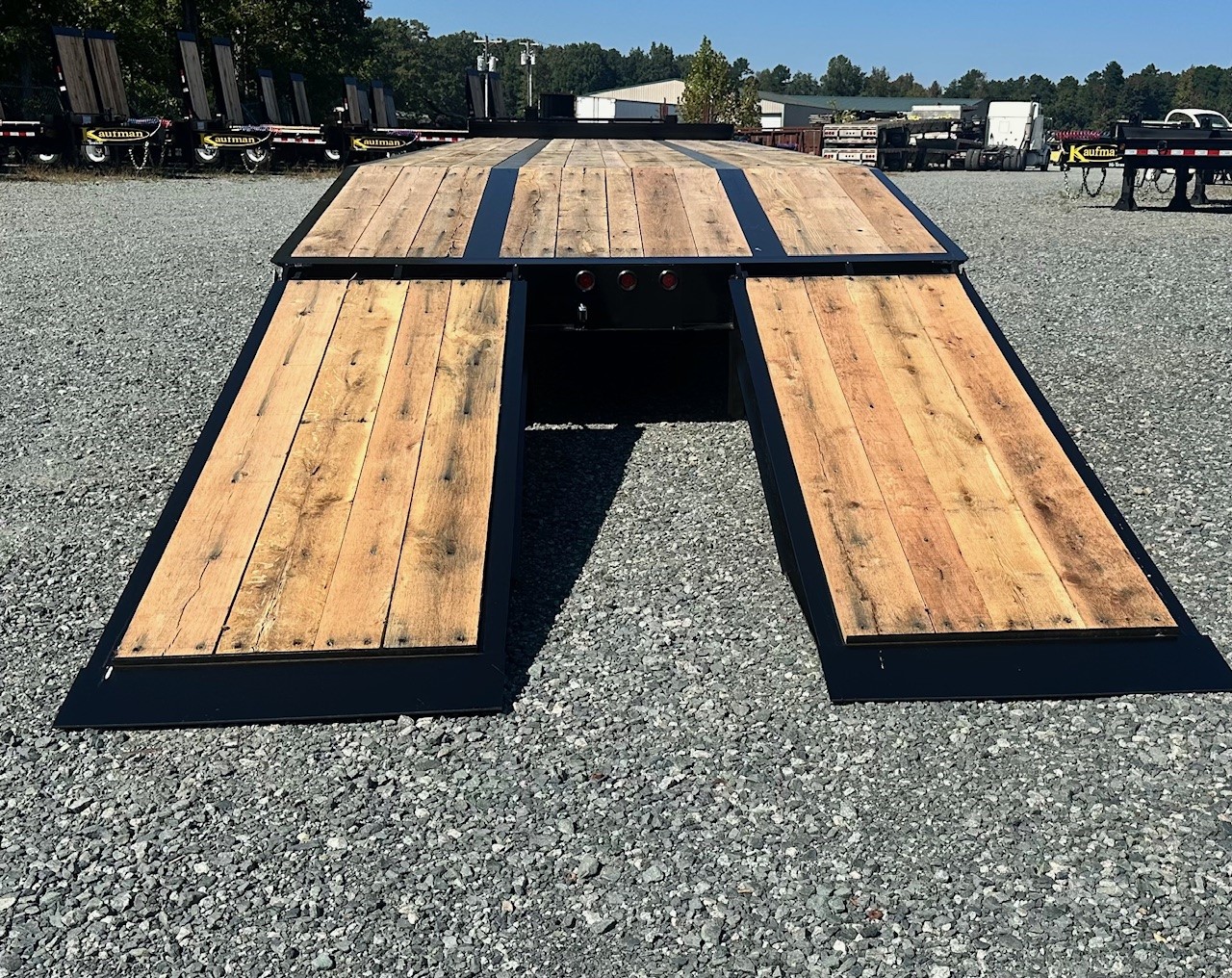

60 in. Wood-lined, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment. $350.00
60 in. Cleated angle iron, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment. $450.00
Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron - additional cost) Specify to your Sales Rep 5' OR 6' dovetail. 6' dovetail recommended for paving equipment $2,800.00
Additional Lengths
Product Number Length Price Additional Info
FAP-22.5K-25 25 ft. $14,660.00 Tongue: Cold Formed
Frame: 14 in. x 22 ppf. Pierced i-beam
Crosspiece: 4 in. Channel
Centers: 16 in.
Side Rail: 8 in. Channel
Ramp Runners: 6 in. Channel
FAP-22.5K-30 30 ft. $15,560.00 Tongue: Cold Formed
Frame: 14 in. x 26 ppf. Pierced i-beam, with torque tube
Crosspiece: 4 in. Channel
Centers: 16 in.
Side Rail: 8 in. Channel
Ramp Runners: 6 in. Channel
FAP-22.5K-35 35 ft. $16,450.00 Tongue: Cold Formed
Frame: 14 in. x 26 ppf. Pierced i-beam, with torque tube
Crosspiece: 4 in. Channel
Centers: 16 in.
Side Rail: 8 in. Channel
Ramp Runners: 6 in. Channel
