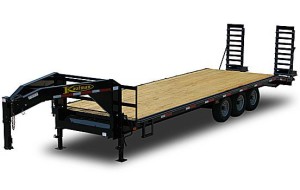

Deluxe 25000 GVWR 30 ft Tri-axle Gooseneck Trailer

Request a Quote

$8,190.00 Factory Direct

Kaufman offers this heavy duty Deluxe 25000 GVWR 30 ft Tri-axle Gooseneck Trailer for the trailer customer who wants a heavy duty gooseneck trailer with 3-7K axles instead of tandem dual axles. It features a 12′ I-beam mainframe with 3″ channel stacked cross-members on 16″ centers and 6″ outer rails. There is 25′ of flatbed with a 5′ dovetail and 5′ cleated spring assist ramps for easy loading of equipment. A popular option is the wedge-shaped lay-flat ramps. The 3-7K electric brake axles feature heavy duty slipper spring suspension, and radial tires. We highly recommend the US made Firestone or Uniroyal tire upgrade for a long tread wear life and improved tire durability. The tread itself is half-again as deep on these US made tires as the tread depth on the standard Chinese-sourced tires. Wiring on the Deluxe 25000 GVWR 30 ft Tri-axle Gooseneck Trailer is a sealed modular harness with lifetime LED lights. You can kiss lighting problems goodbye! Dual heavy duty 12K drop foot jacks, a tool tray with lockable lid, stake pockets with rub rail, treated flooring, and an adjustable 2 5/16″ gooseneck coupler complete the standard features on this Deluxe 25000 GVWR 30 ft Tri-axle Gooseneck Trailer.

Layover Level Ramp option not recommended for Steel Tracked Equipment (Dozers, Trackhoes, etc.) No Ramp warranty for this use.

Premium USA made tires – upgrade now available – see options

VIEW OUR ENTIRE LINE OF GOOSENECK TRAILERS

CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444

Specifications
G.V.W.R. 25,000 lb.
Electrical Sealed modular wiring harness with LED lights
Frame 12 in. I-beam, 16 ppf. with 3 in. channel stacked crossmembers, 16 in. o.c.
Dovetail 5 ft. Dove
Upper Deck N/A
Side Rail 6 in. flatbar
Tongue 12 in. I-beam gooseneck
Tires 235/80 R16 LRE (3,520 lb.)
Floors 2 in. Treated Wood
Coupler 2-5/16 in. Adjustable ball coupler
Safety Chains Heavy duty safety chains
Ramps 60 in. x 24 in. Heavy duty flip up ramps, with spring assist
Tie Downs Stake pockets and Rubrail
Deck Length 30 ft. (25 ft. flat + 5 ft. dove)
Deck Height 37 in.
Deck Width 102 in.
Fenders N/A
Lower Deck N/A
Brakes All wheel electric brakes
Tailgate N/A
Wheels Silver or white mod (Based on stock)
Jack Dual 12,000 lb. drop foot jacks
Axles 3 - 7,000 lb. e-z lube axles
Suspension Slipper springs
Toolbox Chain box with lockable lid
Finish Primed, 2 coats of automotive grade enamel, pin striped
Additional Options
Spare tire and rim $190.00
Load Range G (14 ply rating) all-steel radials (Chinese made - good quality) $510.00
Load Range G (14 ply rating) all-steel radial - spare tire (Chinese made - good quality) $275.00
Premium 235/85 R16 LRE USA made tires - Cooper Discoverer HT3 in NC - Firestone Transforce in NE $570.00
Premium 235/85 R16 LRE USA made spare tire - Cooper Discoverer HT3 in NC - Firestone Transforce in NE $285.00
Kingpin coupler $100.00
Dual 12K two speed jacks $290.00
Black paint standard. Any paint center optional color - 30 ft. standard length (8 dollars per foot of length) $240.00
9K Winch $1,150.00
Longer ramp bars for closer center adjustment (Standard adjustment is 32 in. Optional adjustment is 38 in. in from outside of floor to inside edge of ramp) $50.00
No dovetail and no ramps (Straight deck) *Special deposit required $-99.00
Self cleaning dovetail $250.00
Pop-up cleated dovetail $300.00
Third swing up ramp $150.00
Slide-in ramp for tri-axle tractor $150.00
2 - 5 ft. Wedge shaped, lay-flat spring assist ramps $250.00
3 - 5 ft. Wedge shaped, lay-flat spring assist ramps $450.00
5 ft. Wedge shaped, lay-flat spring assist ramps WITH cleated center popup $450.00
6 ft. x 8 ft. Deck on neck $400.00
Torque tube - recommended with extra length or deck on neck $100.00
Sliding 4 in. ratchets (each) - requires sliding track $20.00
Sliding track for ratchets (per foot) $20.00
Fork holders (requires measurement information) $200.00
5 ft. Heavy duty spring assist split gate (Capacity 13,000 lb. piece of equipment) $600.00
Additional Lengths
Product Number Length Price Additional Info
FH-3/7K-30D 30 ft. $8,190.00 Tongue: 12 in. I-beam
Frame: 12 in. I-beam 16 PPF
Crosspiece: 3 in. Channel
Centers: 16 in.
Side Rail: 6 in. Flatbar
Ramp Runners: 3 in. Channel
FH-3/7K-35D 35 ft. $8,990.00 Tongue: 12 in. I-beam
Frame: 12 in. I-beam 19 PPF, with torque tube
Crosspiece: 3 in. Channel
Centers: 16 in.
Side Rail: 6 in. Flatbar
Ramp Runners: 3 in. Channel
FH-3/7K-40D 40 ft. $9,790.00 Tongue: 12 in. I-beam
Frame: 12 in. I-beam 19 PPF, with torque tube
Crosspiece: 3 in. Channel
Centers: 16 in.
Side Rail: 6 in. Flatbar
Ramp Runners: 3 in. Channel
