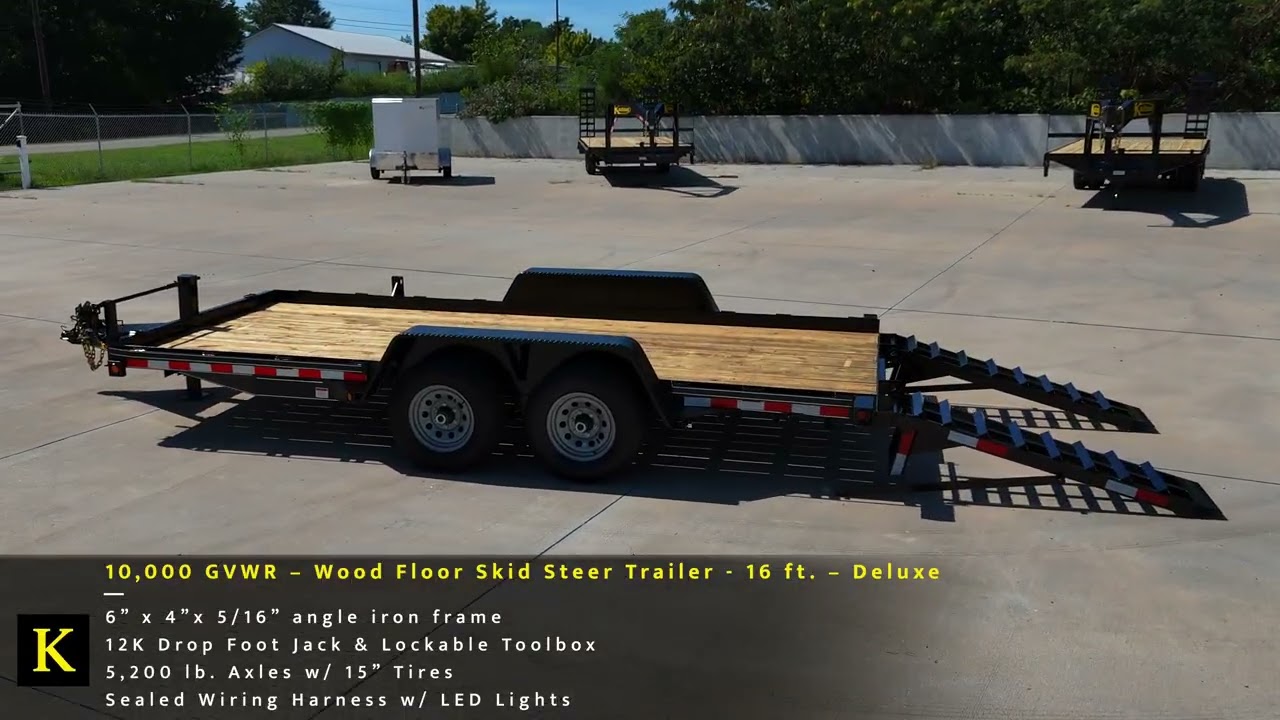

10000 GVWR Deluxe Wood Floor Skid Steer Trailer - 16 ft.

Our 10000 GVWR Deluxe Wood Floor Skid Steer Trailer comes with a 6 in. x 4 in. angle iron frame, 5" channel full length wrap around tongue, adjustable coupler and 12,000 lb. drop foot jack. 5,200 lb. four wheel brake axles with 225/75 R15 tires comprise the running gear. Stake pockets with rub rail, tool box with lockable lid, swing up loading ramps, and heavy gauge diamond plate fenders are all included. Trouble free wiring is assured with a sealed modular wiring harness and lifetime LED lights. Contact our customer service team today to find out how easy it is to have a 10000 GVWR Deluxe Wood Floor Skid Steer Trailer delivered direct to your location. TRAILER IS SHOWN IN OPTIONAL YELLOW.

1 Available Lengths

$6,090.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	10,000 lb.
Deck Height:	19 in.
Electrical:	Sealed modular wiring harness with LED lights
Deck Width:	82 in. Between fenders
Frame:	4x6x5/16 angle frame, with 3 in channel crossmembers
Fenders:	Diamond plate fenders
Tongue:	5 in. Channel wrap around
Brakes:	All wheel electric brakes
Tires:	225/75 R15 (2,540 lb.) Radial
Wheels:	Silver or white mod (Based on stock)
Floors:	2 in. Treated Wood
Jack:	12,000 lb. Drop foot jack
Coupler:	2-5/16 in. Adjustable coupler
Axles:	2-5,200 lb. e-z lube axles
Safety Chains:	Heavy duty safety chains
Suspension:	Double eye springs
Ramps:	60 in. x 20 in. Flip up ramps
Toolbox:	Chain box with lockable lid
Tie Downs:	Stake pockets and Rubrail
Finish:	Primed, 2 coats of automotive grade enamel, pin striped
Deck Length:	16 ft.

Option	Price	Image
Spare tire and rim	$160.00
9K Winch	$1,250.00
Wood lined ramps - 60 in. x 20 in.	$200.00
Adjustable 2-5/16 in. ball and pintle ring	$50.00
5 ft. Heavy duty spring assist split gate (Capacity 8,500 lb. piece of equipment)	$600.00
Fork holders (requires measurement information)	$200.00
6K Winch	$950.00

Product Number	Length	Price	Additional Info
FSW-5.2K-16D	16 ft.	$6,090.00	Frame: 4x6x5/16 in. Angle Tongue: 5 in. Channel Crosspiece: 3 in. Channel Centers: approx. 16 in.
