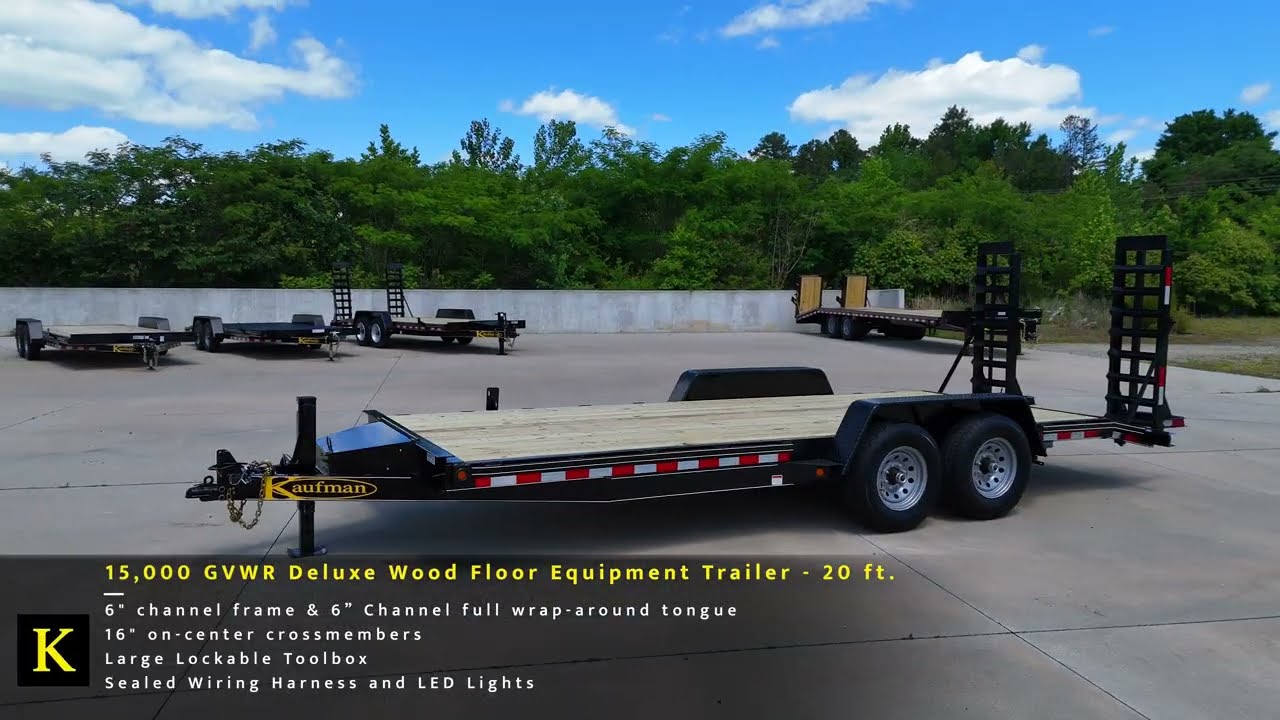

15000 GVWR Deluxe Wood Floor Equipment Trailer - 20 ft.

Our 15000 GVWR Deluxe Wood Floor Equipment Trailer is one of our best selling models! The frame is 6 in. channel with a 6″ channel full length wrap around tongue, a 12,000 lb. drop foot jack and a heavy duty cast iron adjustable coupler. Running gear is 7,000 lb. four wheel brake axles with heavy duty slipper spring suspension and 235/80 R16 load range E tires. A tool box with a lockable lid, stake pockets with rub rail, and heavy gauge diamond plate fenders are all included. We beef up the ramps with 4 in. channel ramp runners and include spring assist. A dovetail helps make an easy loading angle. Trouble free lighting is assured with a US made sealed modular wiring harness and lifetime LED lighting. Contact our customer service team today to find out how easy it is to have a 15000 GVWR Deluxe Wood Floor Equipment Trailer delivered direct to your location.

7 Available Lengths

$6,490.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	15,000 lb.
Deck Length:	20 ft. (18 ft. flat + 2 ft. dovetail)
Electrical:	Sealed modular wiring harness with LED lights
Deck Height:	26 in.
Frame:	6 in. Channel, with 3 in. channel cross members
Deck Width:	82 in. Between fenders
Dovetail:	2 ft. Dove
Fenders:	Diamond plate fenders
Tongue:	6 in. Channel wrap around
Brakes:	All wheel electric brakes
Tires:	235/80 R16 LRE (3,520 lb)
Wheels:	Silver or white mod (Based on stock)
Floors:	2 in. Treated Wood
Jack:	12,000 lb. Drop foot jack
Coupler:	2-5/16 in. Adjustable ball coupler
Axles:	2-7,000 lb. e-z lube axles
Safety Chains:	Heavy duty safety chains
Suspension:	Slipper springs
Ramps:	60 in. x 18 in. Flip up ramps. 4 in. channel ramp runners with 2x2x1/4 cleats. - with spring assist
Toolbox:	Chain box with lockable lid standard
Tie Downs:	Stake pockets and Rubrail
Finish:	Primed, 2 coats of automotive grade enamel, pin striped

Option	Price	Image
Spare tire and rim	$230.00
20,000 GVWR Heavy Duty Package - Includes 3/7,000 lb. axles, required flat adjustable nose plate with pintle ring coupler, standard 6 in. channel frame with 5 in. channel frame doubler, 16 in. on center crossmembers, and heavy duty spring assist ramps (*Premium tire upgrade for this option requires special quote*)	$1,800.00
Load Range G (14 ply rating) all-steel radials	$500.00
No dovetail (Straight deck)	$0.00
Load Range G (14 ply rating) all-steel radial - spare tire	$300.00
No ramps (Straight deck) *Special deposit required	$-50.00
Adjustable 2-5/16 in. ball and pintle ring	$50.00
Wood lined ramps - 60 in. x 20 in.	$200.00
6K Winch	$950.00
Fork holders (requires measurement information)	$200.00
9K Winch	$1,250.00
5 ft. Heavy duty spring assist split gate (Capacity 13,000 lb. piece of equipment)	$600.00

Product Number	Length	Price	Additional Info
FDW-7K-16D	16 ft.	$6,470.00	Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-7K-18D	18 ft.	$6,480.00	Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-7K-20D	20 ft.	$6,490.00	Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-7K-22D	22 ft.	$6,690.00	Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-7K-24D	24 ft.	$6,890.00	Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-7K-26D	26 ft.	$7,190.00	Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-7K-28D	28 ft.	$7,390.00	Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
