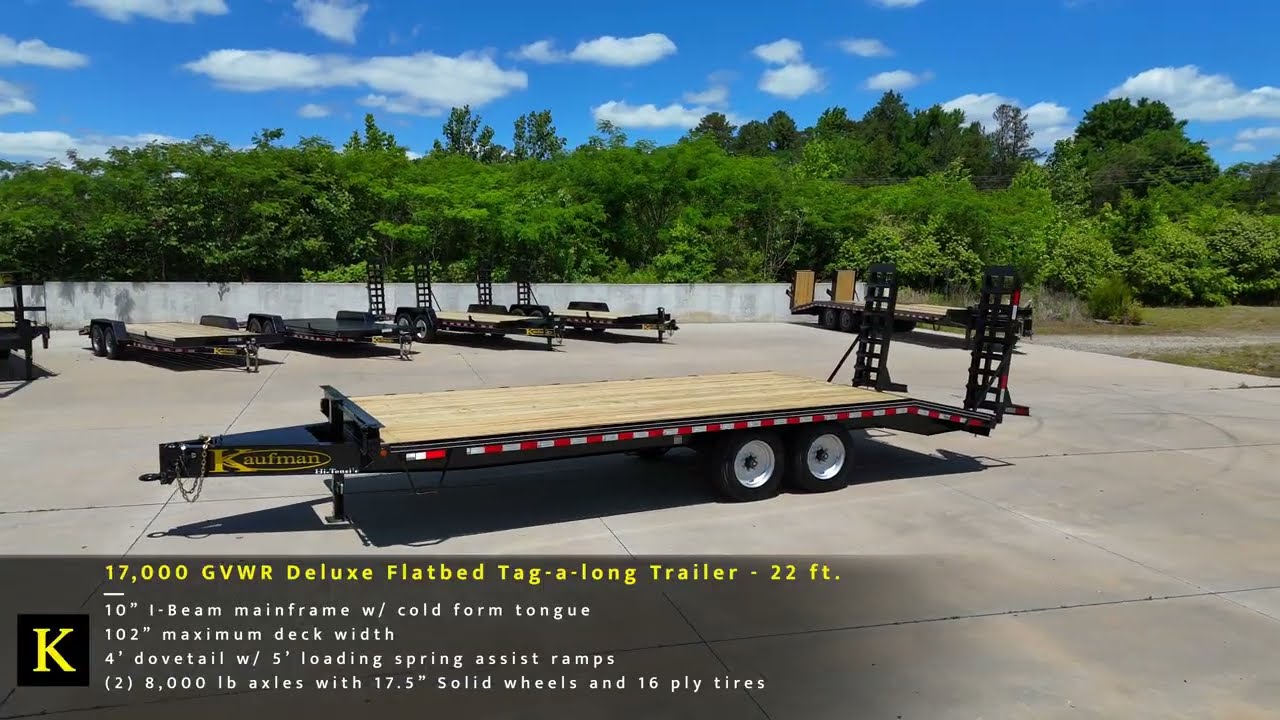

17,000 GVWR Deluxe Flatbed Trailer - 22 ft.

Kaufman's heavy duty 17,000 GVWR Deluxe Flatbed Trailer is built with a 10 in. I-beam mainframe. Crossmember spacing is 18 in. centers on the 3 in. channel cross-members with 6" outer rails. This trailer has 18 ft. of flatbed with a 4 ft. dovetail and 5 ft. cleated swing up ramps for easy loading of equipment. The ramps are beefed up to 4 in. channel ramp frame runners. If ordered with the lay flat ramps, the dovetail is 6' of the total trailer length. The tongue is cold formed in a hydraulic press for a one-piece main frame and tongue with stacked crossmembers.
Two general duty 8,000 lb. axles and load range H 17.5" tires on heavy duty wheels. The 8,000 lb. axles feature thicker, high tensile axle beam, larger bearings, and 5/8" studs provide a durable and long lasting gear.
The lighting package upgrades to a US made sealed modular wiring harness with lifetime LED lighting. This Deluxe model includes a tool tray with a lockable lid. A heavy duty 12,000 lb. drop foot jack, stake pockets on the rub rail, treated wood flooring and an adjustable pintle ring on a heavy duty nose-plate complete the package deal on this 16000 GVWR Deluxe Flatbed Trailer. Kaufman Trailers expert customer service team can help with all your trailer needs.

4 Available Lengths

$9,490.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	16,000 lb., with H-D plate and pintle eye. 15,000 lb. with adj. 2-5/16 ball
Tie Downs:	Stake pockets and Rubrail
Electrical:	Sealed modular wiring harness with LED lights
Deck Length:	22 ft. (18 ft. flat + 4 ft. dovetail)
Frame:	10 in. I-beam, with 3 in. channel crossmembers 17 in. on center
Deck Height:	35 in. with side steps
Dovetail:	4 ft. Wood Dove (6 ft. with lay flat ramps option)
Deck Width:	Maximum 102 in.
Side Rail:	6 in. flatbar
Brakes:	All wheel electric brakes
Tongue:	Cold formed
Wheels:	Heavy duty steel wheels
Tires:	215/75 R17.5 LRH (4,850 lb.)
Jack:	Single 12,000 lb. drop foot jack
Floors:	2 in. Treated Wood
Axles:	2-8,000 lb. e-z lube axles
Coupler:	Adjustable pintle eye
Suspension:	Slipper springs
Safety Chains:	Heavy duty safety chains
Toolbox:	Chain box with lockable lid standard
Ramps:	60 in. x 18 in. Flip up ramps, with spring assist. 4 in. channel ramp runners with 2x2x3/16ths cleats.
Finish:	Primed, 2 coats of automotive grade enamel, pin striped

Option	Price	Image
Spare tire and rim (17.5 upgrade)	$400.00
No dovetail and no ramps (Straight deck) *Special deposit required	$-99.00
Torque tube - recommended with extra length	$100.00
4ft. Self cleaning cleated dovetail	$300.00
5 ft. Heavy duty spring assist split gate (Capacity 13,000 lb. piece of equipment)	$700.00
6ft. Self cleaning cleated dovetail (required if ordered with 6ft. lay flat ramps)	$450.00
9K Winch (Dual Jacks Required)	$1,250.00
Pop-up cleated dovetail (18 ft. flat + 4 ft. pop-up dove)	$400.00
Sliding 4 in. ratchets (each) - requires sliding track	$30.00
Third swing up ramp	$200.00
Sliding track for ratchets (per foot)	$30.00
Slide-in ramp for tri-axle tractor	$200.00
Dual 12K jacks	$140.00
2 72" Wedge shaped, lay-flat spring assist ramps (Flat length of trailer is shortened by 2ft. to make 6ft. dovetail)	$400.00
Dual 12K two speed jacks	$290.00
3 - 6 ft. Wedge shaped, lay-flat spring assist ramps (Flat length of trailer is shortened by 2ft. to make 6ft. dovetail)	$700.00
Ridged Metal Traction Dovetail (2 - 22" x 48" HD ridged mesh inserts in dovetail)	$200.00
6 ft. Wedge shaped, lay-flat spring assist ramps WITH cleated center popup (Flat length of trailer is shortened by 2ft. to make 6ft. dovetail)	$700.00
Full Width MEGA RAMPS with spring assist in both directions (includes 5' cleated dovetail in place of 4' wood dovetail)	$1,600.00
Fork holders (requires measurement information)	$200.00

Product Number	Length	Price	Additional Info
FP-8K-22D	22 ft.	$9,490.00	Tongue: Cold Formed Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 17 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
FP-8K-24D	24 ft.	$9,790.00	Tongue: Cold Formed Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 17 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
FP-8K-26D	26 ft.	$10,090.00	Tongue: Cold Formed Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 17 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
FP-8K-28D	28 ft.	$10,390.00	Tongue: Cold Formed Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 17 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
