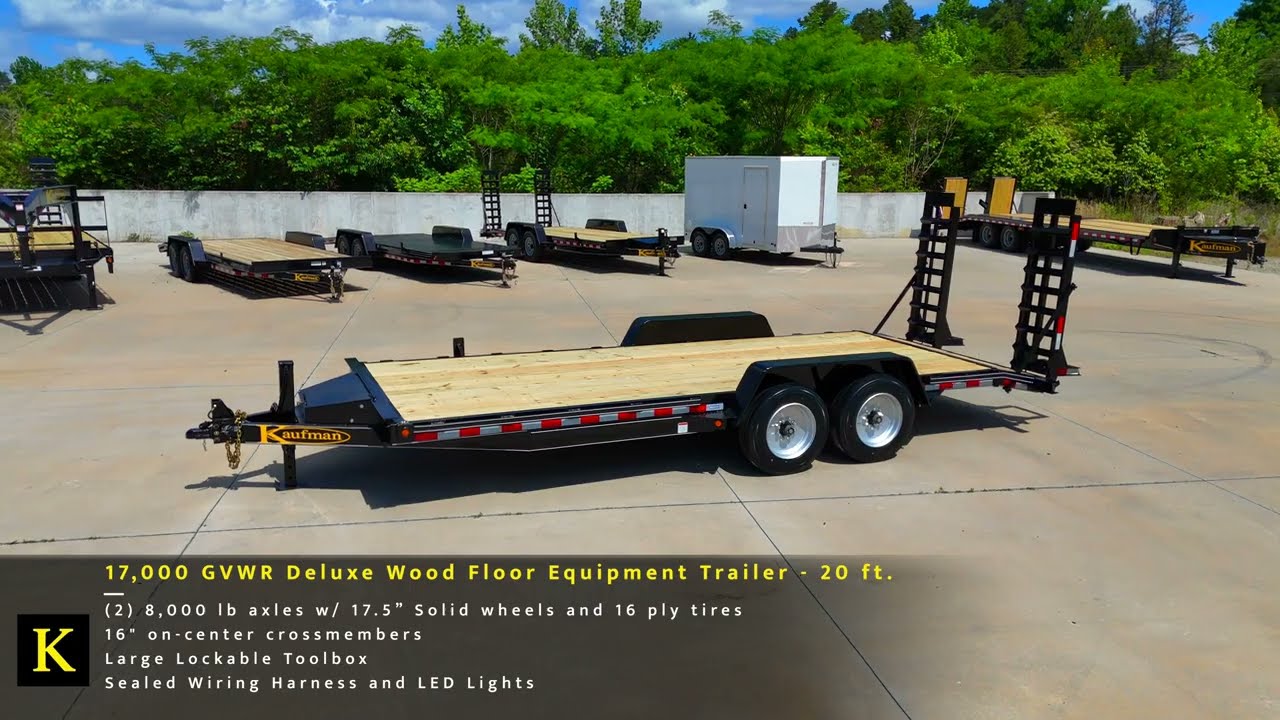

17000 GVWR Deluxe Wood Floor Equipment Trailer - 20 ft.

Our 17000 GVWR Deluxe Wood Floor Equipment Trailer is built with a 6 in. channel frame, 6″ channel full length wrap around tongue, a 12,000 lb. drop foot jack and a super duty 3-bolt cast iron adjustable coupler. 3 in. channel crossmembers are on 16 in. centers. The running gear upgrades to 8,000 lb. four wheel brake axles with heavy duty slipper spring suspension and 215/75 R17.5 load range H tires. A tool box with a lockable lid, stake pockets with rub rail, and heavy gauge diamond plate fenders are all included.
We beef up the ramps with 4 in. channel ramp runners and include spring assist. A dovetail helps make a gradual loading angle. A US made sealed modular wiring harness and lifetime LED lighting ensure trouble free lighting for years to come. Contact our customer service team today to find out how easy it is to have a 17000 GVWR Deluxe Wood Floor Equipment Trailer delivered direct to your location.

7 Available Lengths

$7,490.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	17,000 GVWR
Deck Length:	20 ft. (18 ft. flat + 2 ft. dovetail)
Electrical:	Sealed modular wiring harness with LED lights
Deck Height:	26 in.
Frame:	6 in. Channel, with 3 in. channel cross members. 16 in. on center
Deck Width:	82 in. Between fenders
Dovetail:	2 ft.
Fenders:	Diamond plate fenders
Tongue:	6 in. Channel wrap around
Brakes:	All wheel electric brakes
Tires:	215/75 R17.5
Wheels:	Silver or white mod (Based on stock)
Floors:	2 in. Treated Wood
Jack:	12,000 lb. Drop foot jack
Coupler:	Super duty cast iron 2 5/16 adjustable coupler
Axles:	2-8,000 lb. e-z lube axles
Safety Chains:	Heavy duty safety chains
Suspension:	Slipper springs
Ramps:	60 in. x 20 in. Flip up ramps. 4 in. channel ramp runners with 2x2x1/4 cleats. - with spring assist
Toolbox:	Chain box with lockable toolbox
Tie Downs:	Stake pockets and Rubrail
Finish:	Primed, 2 coats of automotive grade enamel, pin striped

Option	Price	Image
Spare tire and rim (17.5)	$400.00
Fork holders (requires measurement information)	$200.00
Adjustable 2-5/16 in. ball and pintle ring	$80.00
5 ft. Heavy duty spring assist split gate (Capacity 12,500 lb. piece of equipment)	$600.00

Product Number	Length	Price	Additional Info
FDW-8K-16D	16 ft.	$7,470.00	Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-8K-18D	18 ft.	$7,480.00	Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-8K-20D	20 ft.	$7,490.00	Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-8K-22D	22 ft.	$7,690.00	Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-8K-24D	24 ft.	$7,890.00	Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-8K-26D	26 ft.	$8,190.00	Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
FDW-8K-28D	28 ft.	$8,390.00	Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel
