Deluxe 24,000 GVWR Tandem Dual Flatbed Trailer

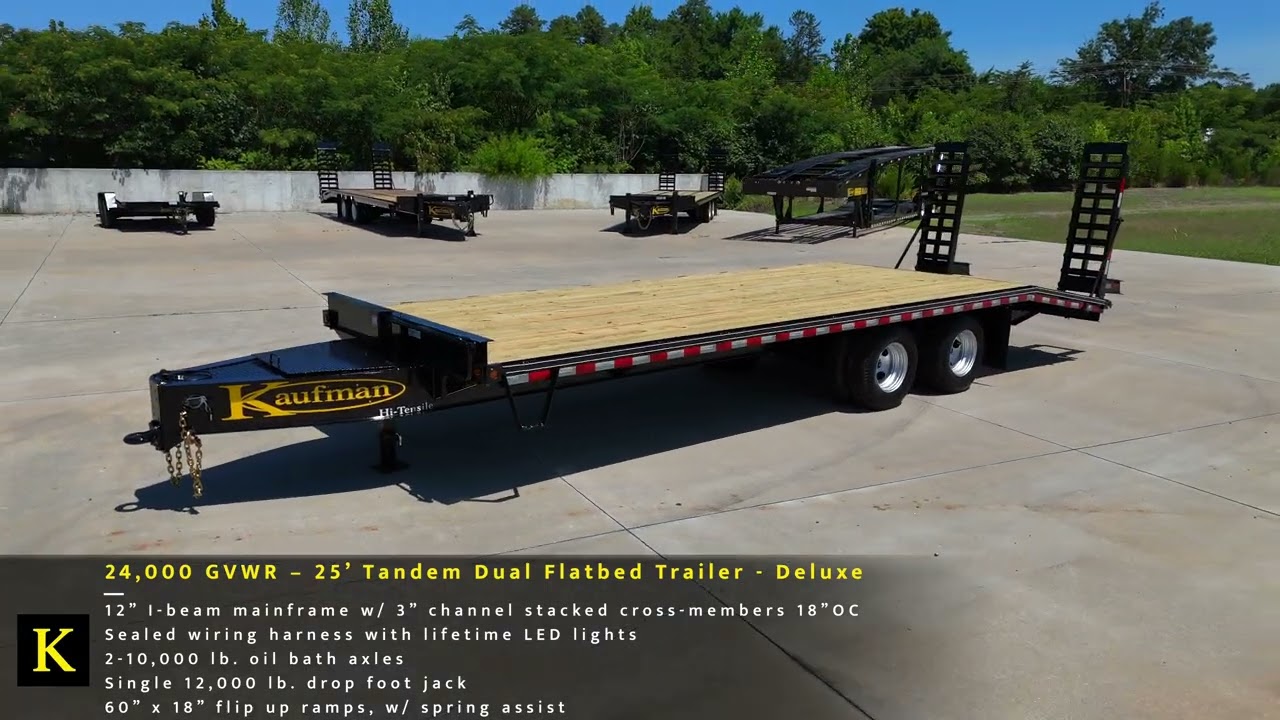

Kaufman Trailers 24,000 GVWR Tandem Dual Flatbed Trailer is constructed with a 12 in. I-beam mainframe with 3 in. channel stacked cross-members 18 in. on center and 6 in. outer rails. The flatbed is 20 ft. with a 5 ft. wood lined dovetail and 5 ft. cleated spring assist ramps for easy loading of equipment. 30' length is also available. The tongue is cold formed in a hydraulic press. Tandem dual electric brake 10,000 lb. axles with heavy duty slipper spring suspension, and 16 in. radial tires provide a durable running gear. A heavy duty 12,000 lb. drop foot jack, a tool tray with a lockable lid, stake pockets with rub rail, treated wood flooring, sealed beam lighting, and an adjustable pintle ring round out the standard features on this 24,000 GVWR Tandem Dual Flatbed Trailer. Kaufman Trailers expert customer service team can help with all your trailer needs.

Layover Level Ramp option not recommended for Steel Tracked Equipment (Dozers, Trackhoes, etc.) No Ramp warranty for this use.

2 Available Lengths

$11,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	24,000 lb.
Tie Downs:	Stake pockets and Rubrail
Electrical:	Sealed wiring harness with lifetime LED lights
Deck Length:	5 ft. (20 ft. flat + 5 ft. dovetail)
Frame:	12 in. I-beam, with 3 in. channel crossmembers 18 in. on center
Deck Height:	36 in. with side steps
Dovetail:	5 ft. Wood Dove
Deck Width:	Maximum 102 in.
Side Rail:	6 in.
Brakes:	All wheel electric brakes
Tongue:	Cold formed
Wheels:	Silver or white based on stock
Tires:	235/80 R16 LRE Radial (3,097 lb.)
Jack:	Single 12,000 lb. drop foot jack
Floors:	2 in. Treated Wood
Axles:	2-10,000 lb. oil bath axles
Coupler:	Adjustable pintle eye
Suspension:	Slipper springs
Safety Chains:	Heavy duty safety chains
Toolbox:	Chain box with lockable lid standard
Ramps:	60 in. x 18 in. Heavy duty flip up ramps, with spring assist
Finish:	Primed, 2 coats of automotive grade enamel, pin striped

Option	Price	Image
Spare tire and rim	$260.00
No dovetail and no ramps (Straight deck) *Special deposit required	$-99.00
9K Winch	$1,250.00
Pop-up cleated dovetail (21 ft. flat + 4 ft. pop-up dove)	$400.00
Torque tube - recommended with extra length	$100.00
Slide-in ramp for tri-axle tractor	$200.00
Sliding track for ratchets (per foot)	$30.00
2 - 72" Wedge shaped, lay-flat spring assist ramps (Bed length goes to 19ft. with 6ft. dovetail)	$400.00
Self cleaning dovetail	$300.00
3 - 72" Wedge shaped, lay-flat spring assist ramps (Bed length goes to 19ft. with 6ft. dovetail)	$700.00
Third swing up ramp	$200.00
2 - 72" Wedge shaped, lay-flat spring assist ramps (Bed length goes to 19ft. with 6ft. dovetail) WITH cleated center popup	$700.00
Dual 12K jacks	$140.00
Fork holders (requires measurement information)	$200.00
Dual 12K two speed jacks	$290.00
Sliding 4 in. ratchets (each) - requires sliding track	$30.00
Ridged Metal Traction Dovetail (2 - 22" x 60" HD ridged mesh inserts in dovetail)	$200.00

Product Number	Length	Price	Additional Info
FHP-10K-25D	25 ft.	$11,990.00	Tongue: Cold Formed Frame: W12x16 PPF I-beam Crosspiece: 3 in. Channel Centers: 16 in. Side Rail: 6 in. Ramp Runners: 4 in. Channel
FHP-10K-30D	30 ft.	$12,690.00	Tongue: Cold Formed Frame: W12x16 PPF I-beam Crosspiece: 3 in. Channel Centers: 16 in. Side Rail: 6 in. Ramp Runners: 4 in. Channel
