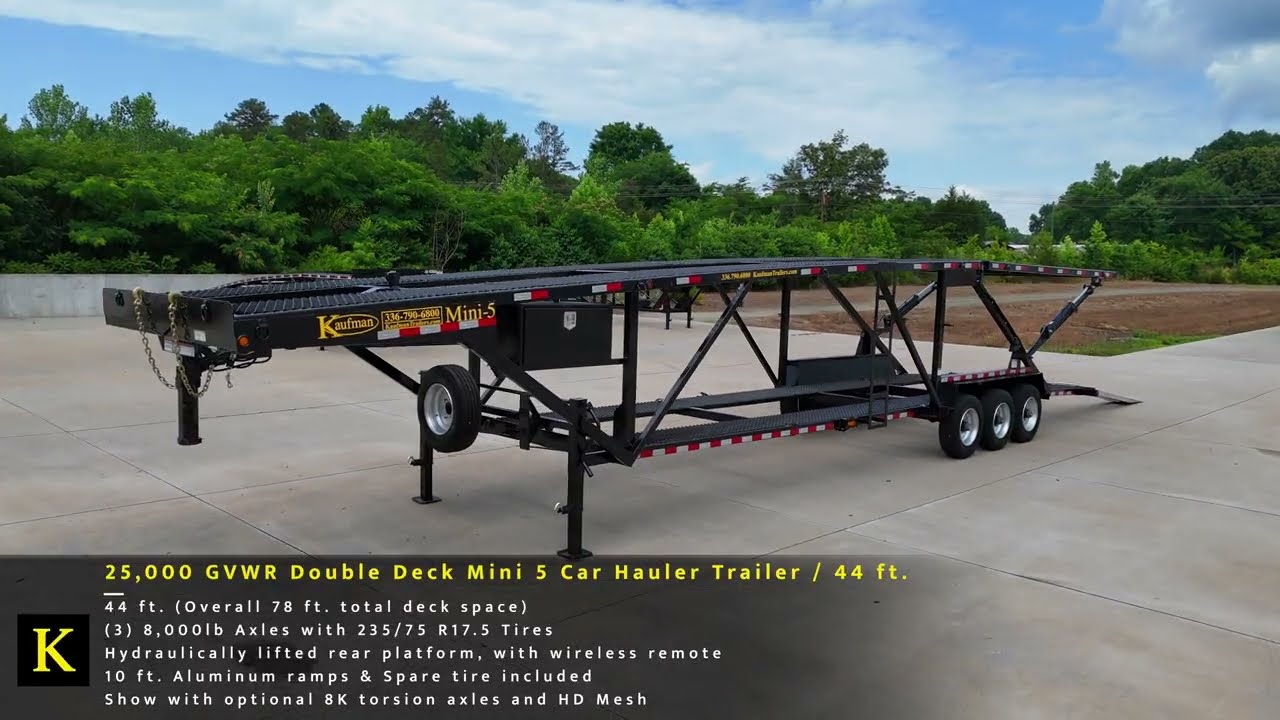

Double Deck Mini 5 Car Hauler Trailer - 25,000 GVWR / 44 ft.

Our Mini 5 car hauler trailer is unique to the car hauling industry. This trailer weighs 8,750 lb. complete as shipped with spare tire and aluminum ramps for the stock model. Additional options such as heavy mesh, winch, or the optional torsion axles add weight. It is only 44' long which makes it easy to maneuver in tight places and does not require a full size road tractor to pull it. The all-tubing, light weight frame features ridged mesh runners for all weather loading traction and weight savings. The hydraulic rear frame is operated with a remote wireless control and loads with the standard 10' aluminum ramps. Rubber mounted lifetime LED lights and 17.5" radial tires contribute to profitable and trouble free auto transport with this popular Kaufman 5 car hauler trailer.

We offer a Heavy Duty Mesh Floor Option with Tire Tie Down Ratchets and Straps. The heavier mesh is sized to hook the ratchet tie downs directly into the floor. This tie down system ties the tires of the vehicles being hauled directly to the floor of the trailer. This is superior to the wheel loop tie down system which exerts side pressure on the tires and suspensions of the vehicles being hauled.

Available Heavy Duty Rubber Torsion Axle Upgrade. No Moving Suspension Parts to Wear Out, Heavy Duty 10K Size Outer Bearing, 12 1/4x3 3/8" Heavy Duty, Self Adjusting, Long Life Brakes. See Options.

1 Available Lengths

$24,900.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	25,000 lb. Empty trailer weight is 8,750 lb. This gives a 16,250 lb. load capacity with an assumed hitch weight of 8,000 lb.
Deck Length:	44 ft. 10 in.
Electrical:	DOT approved wiring, connectors, and all rubber mounted LED lights
Deck Height:	94 in. At highest point of upper deck
Frame:	4 in. x 3 in. tubular steel
Deck Width:	Lower deck: 80 in. Upper deck: 98 in.
Dovetail:	5 ft. dove
Lower Deck:	34 ft. Useable length
Upper Deck:	44 ft. with hydraulically lifted rear platform, with wireless remote
Brakes:	All wheel electric brakes
Tongue:	4 in. x 3 in. tubular steel
Wheels:	Heavy duty steel wheels
Tires:	235/75 R17.5 16PR (6,010) with mounted spare standard
Jack:	Dual 12,000 lb. drop foot jacks
Floors:	Ridged expanded metal runners with open center
Axles:	3-8,000 lb. e-z lube axles
Coupler:	2-5/16 in. 25,000 GVWR adjustable ball coupler or SAE 2 in. kingpin
Suspension:	Slipper springs
Safety Chains:	Heavy duty safety chains
Toolbox:	18 in. x 18 in. x 36 in. lockable toolbox
Ramps:	10 ft. Aluminum ramps
Finish:	Primed, 2 coats of automotive grade enamel
Tie Downs:	Lower: Ratchets and straps. Upper Deck: Ratchets & 5 ft. transport chains UNLESS heavy mesh option is ordered.

Option	Price	Image
Second spare tire and rim	$500.00
9,000 lb. Electric winch (Set up has access to both decks)	$1,250.00
Both 2-5/16 ball coupler and SAE 2 in. kingpin	$100.00
Heavy Duty Rubber Torsion Axle Upgrade. No Moving Suspension Parts to Wear Out, Heavy Duty 25580 - 10K Size Outer Bearing, 12 1/4"x3 3/8" Heavy Duty Self Adjusting, Long Life Brakes	$1,800.00
Heavy mesh floor upgrade with tire tie downs.	$1,400.00

Product Number	Length	Price	Additional Info
FE-3/8K-44	44 ft.	$24,900.00
