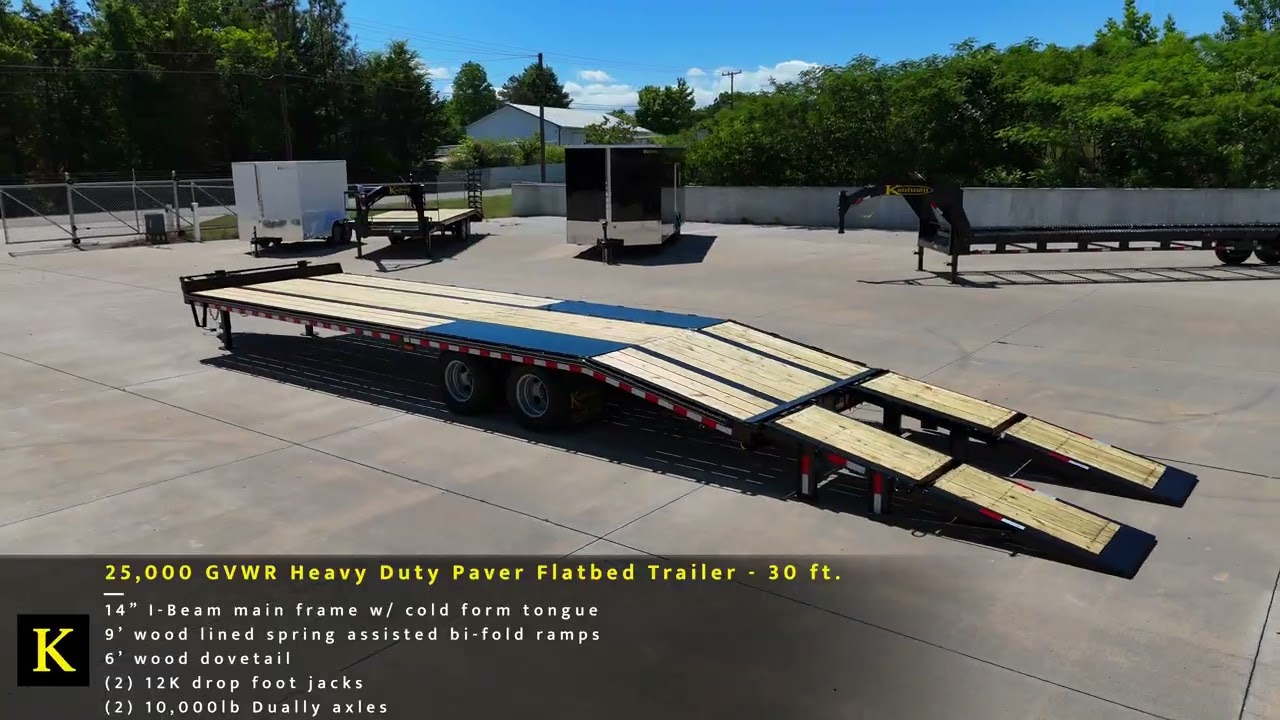

25,000 GVWR Heavy Duty Paver Flatbed Trailer - 30 ft. - Deluxe

Our 25,000 GVWR – 30' Heavy Duty Paver Flatbed Trailer has 24 ft. of flatbed and 6 ft. of dovetail. Construction starts with massive one piece 14 in. at 22 lb./ft. high tensile main beams. A paving machine hauled at the front of a flatbed trailer of this length places significant stress on the frame and tongue. The massive frame on this paver trailer is designed to endure this stress and still give the full expected service life. The tongue is cold formed in a hydraulic press and we use pierced crossmember construction. 10,000 lb. oil-bath dually axles, heavy duty slipper spring suspension, and 16 in. radial tires provide a long lasting and durable running gear. 8 ft. hydraulic ramps are a popular option on this model.
Dual heavy duty 12,000 lb. drop foot jacks, stake pockets with rub rail, treated wood flooring, a tool tray with a lockable lid, an adjustable hitch height, and a US made sealed modular wiring harness with lifetime LED lighting make this user friendly 25000 GVWR Heavy Duty Paver Flatbed Trailer an industry leader.
Kaufman Trailers expert customer service team can help you order a 25000 GVWR Heavy Duty Paver Flatbed Trailer today! Call 866-455-7444!

2 Available Lengths

$16,490.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	25,000 lb. Load capacity 19,000 lb. with 6,000 lb. hitch load.
Tie Downs:	Stake pockets and Rubrail
Electrical:	DOT approved lights, wiring, and connectors
Deck Length:	30 ft. (24 ft. flat + 6 ft. dove)
Frame:	14 in. Pierced i-beam, 22 ppf., with 3 in. channel crossmembers 16in. o.c.
Deck Height:	37 in. with side steps
Dovetail:	6 ft. Wood dove
Deck Width:	Maximum 102 in.
Side Rail:	6 in. Channel
Brakes:	All wheel electric brakes
Tongue:	Cold formed
Wheels:	Heavy duty bud style dual wheels
Tires:	235/80 R16 LRE (3,097 lb.)
Jack:	Dual 12,000 lb. drop foot jacks
Floors:	2 in. Treated Wood
Axles:	2-10,000 lb. oil bath axles
Coupler:	Adjustable pintle eye - mounts on four bolt 1/2" thick 25,000 GVWR nose plate
Suspension:	Slipper springs
Safety Chains:	Heavy duty safety chains
Toolbox:	Chain box with lockable lid
Ramps:	Heavy duty bi-fold ramps, 9 ft. extended, with spring assist (20k capacity)
Finish:	Primed, 2 coats of automotive grade enamel

Option	Price	Image
Spare tire and rim	$260.00
Torque tube	$100.00
Load Range G (14 ply rating) all-steel radials	$1,000.00
Two speed 12K jacks	$150.00
Load Range G (14 ply rating) all-steel radial - spare tire	$330.00
Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And up to 33 in. x 96 in. for self-cleaning ramps	$3,400.00
9K Winch	$1,250.00

Product Number	Length	Price	Additional Info
FHPVR-10K-30D	30 ft.	$16,490.00	Tongue: Cold Formed Frame: 14 in. x 22 ppf. Pierced i-beam Crosspiece: 3 in. Channel Centers: 16 in. Side Rail: 6 in. Channel Ramp Runners: 3 in. x 4 in. Tubular steel
FHPVR-10K-35D	35 ft.	$17,490.00	Tongue: Cold Formed Frame: 14 in. x 22 ppf. Pierced i-beam, with torque tube Crosspiece: 3 in. Channel Centers: 16 in. Side Rail: 6 in. Channel Ramp Runners: 3 in. x 4 in. Tubular steel
