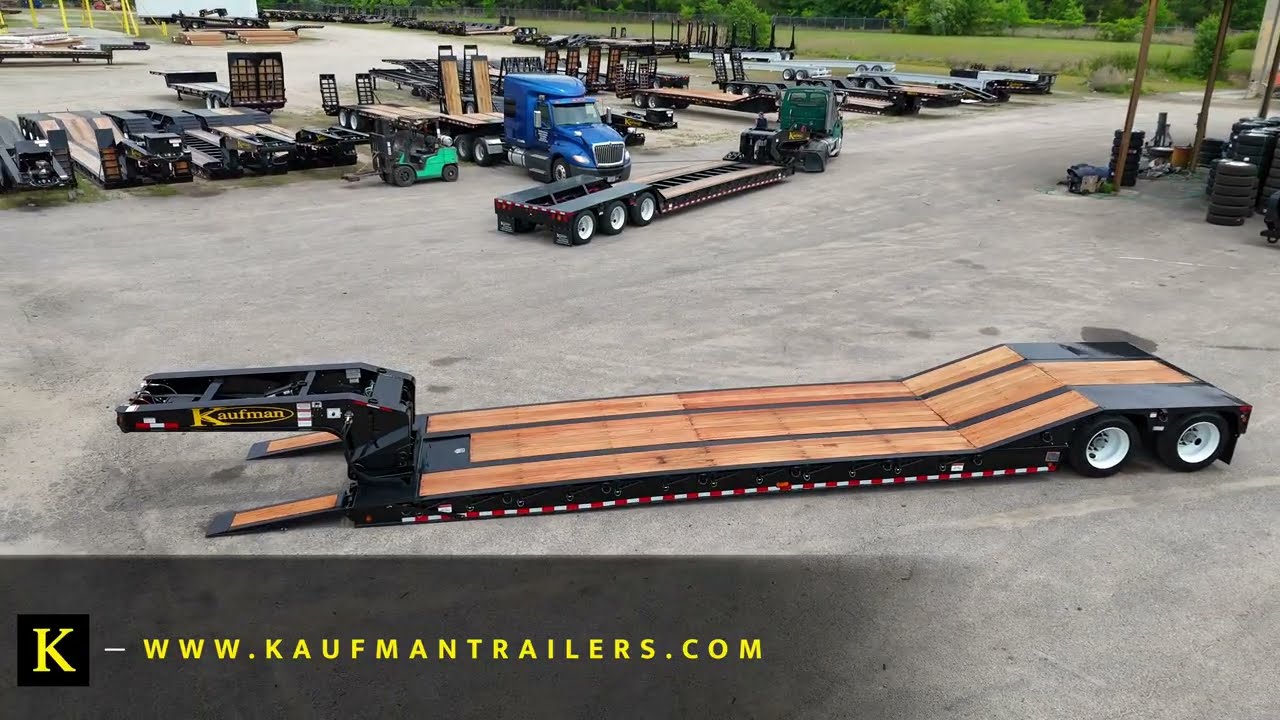

35 Ton Air Ride Paver Special

Price Shown Does Not Include FET

Shown with Optional Polished Aluminum Wheels

3 Available Lengths

$53,980.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	88,000 lbs. (Capacity 70,000 lbs. rated in 12 ft. span or greater)
Deck Length:	24' well standard
Electrical:	Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Deck Height:	22" (fully loaded)
Frame:	Four cambered main beams with low profile tapered front, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Deck Width:	102" (Expandable to 126" with outriggers)
Dovetail:	See Additional Options
Fenders:	Full Length Heavy Duty Load Bearing
Upper Deck:	See Additional Options
Lower Deck:	24' well length
Side Rail:	Full Height Fabricated
Brakes:	All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Tongue:	Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
Wheels:	10 hole steel disc / hub piloted (Aluminum Wheel Options)
Tires:	255/70 R22.5 LRH
Axles:	2-25,000 lb. axles (5" round, 5/8" wall thickness)
Floors:	2" oak flooring (Center Decking Included)
Suspension:	Air ride suspension
Coupler:	SAE 2" Kingpin (16" Kingpin Setting)
Toolbox:	20" x 42" Lockable Lid Toolbox
Ramps:	45” Wood Filled Sliding
Finish:	Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
Tie Downs:	Forged D-rings

Product Number	Length	Price	Additional Info
FRDP35-22-24-A-52-00-N	24 ft.	$53,980.00	Well Length
FRDP35-22-26-A-52-00-N	26 ft.	$55,480.00	Well Length
FRDP35-22-28-A-52-00-N	28 ft.	$56,980.00	Well Length
