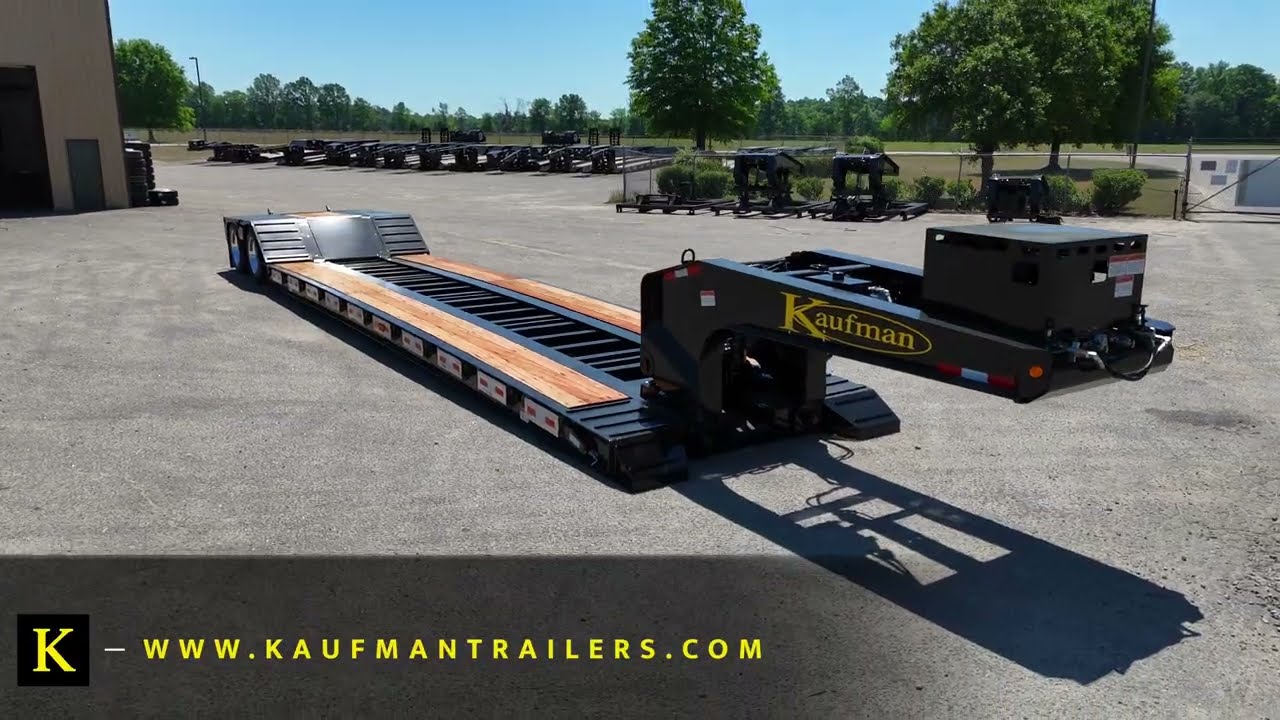

35 Ton Detachable Gooseneck Ag Trailer - 30' Well

Price Shown Does Not Include FET

The 35 Ton Detachable Gooseneck Ag Trailer – 30’ Well is built to handle serious agricultural and heavy equipment hauling with strength, stability, and versatility. Rated at a 92,000 lb. G.V.W.R. with a 70,000 lb. capacity in a 12’ span or greater, this trailer features a 30’ standard well, 18” loaded deck height, and a full-depth fabricated side rail for maximum durability. Four cambered main beams constructed from 100 KSI (T1) and 80 KSI high tensile steel provide exceptional structural integrity, while the air ride suspension, 2" oak flooring, and 2 – 25,000 lb. axles ensure a smooth, dependable ride.
The hydraulic, removable non-ground bearing gooseneck comes standard with wet line setup and adjustable load blocks for added flexibility. A 102” deck width expands up to 156” with slide-out aluminum outriggers, making it ideal for oversized equipment. Equipped with all-wheel air brakes, 4S/2M ABS, lifetime LED lighting, forged D-ring tie downs, and a Sherwin Williams premium acrylic urethane finish over epoxy primer, this trailer is designed for long-term performance in demanding environments.

Shown with Optional Polished Aluminum Wheels

1 Available Lengths

$64,920.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	92,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Deck Length:	30' well standard. Additional Optional Lengths
Electrical:	Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Deck Height:	18" (fully loaded)
Frame:	Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Deck Width:	102" (Expandable to 156" with slide-out aluminum outriggers)
Dovetail:	See Additional Options
Fenders:	Load bearing high tensile steel fenders over the tires.
Upper Deck:	See Additional Options
Lower Deck:	30' well length
Side Rail:	Full Depth Fabricated
Brakes:	All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Tongue:	Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 85" - 107" available swing clearances. Comes standard set-up for wet line.
Wheels:	10 hole steel disc / hub piloted (Aluminum Wheel Options)
Tires:	255/70 R22.5 LRH
Axles:	2 - 25,000 lb. axles (5" round, 5/8" wall thickness) with Flip Prep included.
Floors:	2" oak flooring
Suspension:	Air ride suspension
Coupler:	SAE 2" Kingpin (16" Kingpin Setting)
Toolbox:	Lockable Lid Toolbox
Ramps:	Fixed Front Ramps (See Additional Options)
Finish:	Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
Tie Downs:	Forged D-rings

Product Number	Length	Price	Additional Info
FRDA35-18-30-A-52-00-Y	30 ft.	$64,920.00	Well Length
