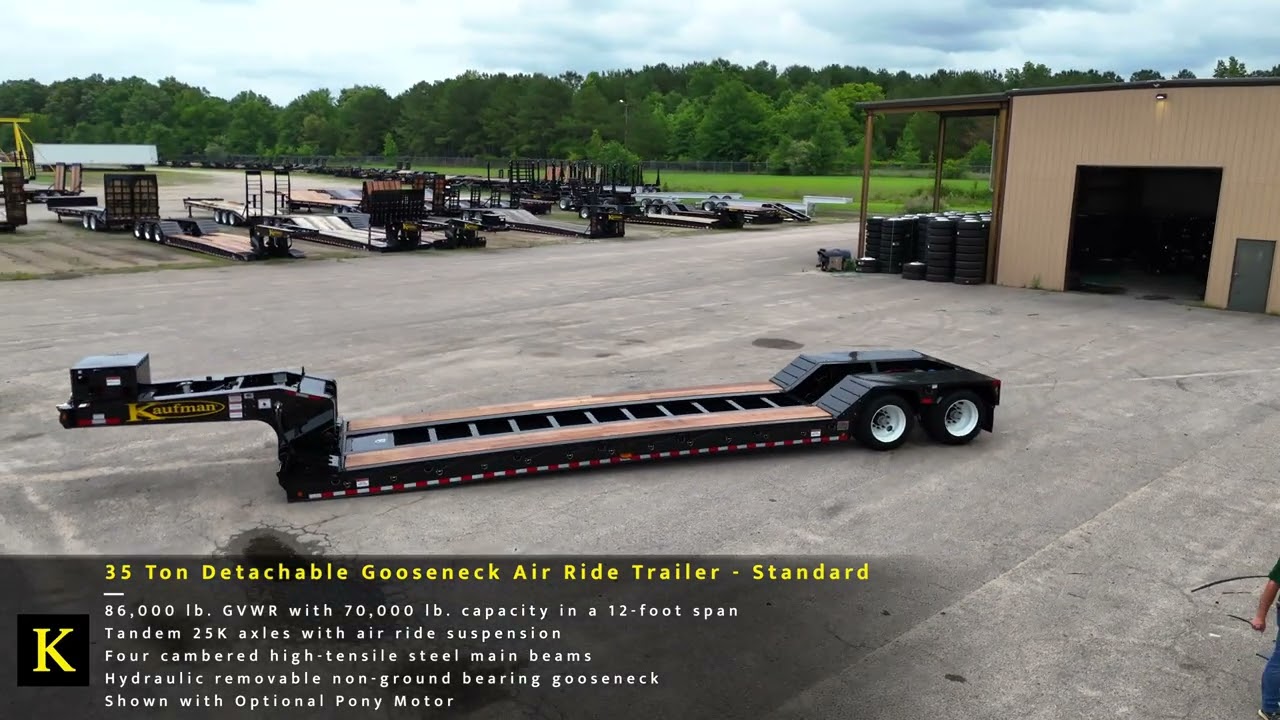

35 Ton Detachable Gooseneck Air Ride Trailer - Standard

Price Shown Does Not Include FET
Shown with Optional Front Flip Ramps.

The 35 Ton Detachable Gooseneck Air Ride Trailer is designed for serious heavy-equipment hauling, combining high capacity with durability and operator convenience. Rated at 86,000 lbs. GVWR with a 70,000 lb. capacity in a 12-ft. span, this trailer features four cambered high-tensile steel main beams, a 24 ft. well with 2″ oak flooring, and air ride suspension with 25,000 lb. axles for a smooth, stable haul. The hydraulic removable non-ground bearing gooseneck allows for easy loading while providing adjustable load blocks and swing clearances for versatile equipment transport. Premium components such as all-wheel air brakes with ABS, forged D-ring tie downs, sealed US-made wiring harness with lifetime LED lighting, and Sherwin Williams urethane finish over epoxy primer make this 35-ton detachable built for long-term reliability in demanding applications.

4 Available Lengths

$48,850.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	86,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Tie Downs:	Forged D-rings
Electrical:	Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Deck Length:	24' well standard. Additional Optional Lengths
Frame:	Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Deck Height:	24 in.
Dovetail:	See Additional Options
Deck Width:	102" (Expandable to 126" with outriggers)
Upper Deck:	See Additional Options
Lower Deck:	24' well length
Side Rail:	Full Height Fabricated
Brakes:	All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Tongue:	Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
Wheels:	10 hole steel disc / hub piloted (Aluminum Wheel Options)
Tires:	255/70 R22.5 LRH
Axles:	2-25,000 lb. axles (5" round, 5/8" wall thickness)
Floors:	2" oak flooring
Suspension:	Air ride suspension
Coupler:	SAE 2" Kingpin (16" Kingpin Setting)
Toolbox:	20" x 42" Lockable Lid Toolbox
Ramps:	Fixed Front Ramps (See Additional Options)
Finish:	Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer

Option	Price	Image
Spare tire and rim	$675.00
Flat Deck Over the Axles (No Boom Trough)	$795.00
Oak Decking in Center Bay	$475.00
Spare Mount	$100.00
Apitong Decking	$650.00
Polished Aluminum Wheels (Outside)	$1,120.00
Apitong Center Decking	$695.00
Additional Paint Colors Available	$1,800.00
Front Fenders	$740.00
Load Supporting Rear Fenders	$720.00
Dual Hinged, Flip up Front Ramps	$395.00
Dual Position Kingpin	$1,950.00
Honda Self Contained Hydraulic Kit	$2,500.00
Bucket Trough	$420.00
26', 28', and 30' Optional Well Lengths (per 2')	$1,500.00

Product Number	Length	Price	Additional Info
FRDT35-24-24-A-52-00-N	24 ft.	$48,850.00	Well Length
FRDT35-24-26-A-52-00-N	26 ft.	$50,350.00	Well Length
FRDT35-24-28-A-52-00-N	28 ft.	$51,850.00	Well Length
FRDT35-24-30-A-52-00-N	30 ft.	$53,350.00	Well Length
