35 Ton Detachable Gooseneck Spring Ride Trailer – Dovetail Standard

Price Shown Does Not Include FET

The 35 Ton Detachable Gooseneck Spring Ride Trailer – Dovetail Standard is built for dependable heavy-haul performance at an exceptional value. With an 87,000 lb. G.V.W.R. and 70,000 lb. capacity in a 12' span or greater, this model features a standard 24' well (available in 24'–28' lengths) and a 36" steel dovetail with traction cleats for efficient loading. The frame is constructed with four cambered main beams using 100 KSI (T1) and 80 KSI high tensile steel for superior strength and durability. Equipped with Hutchens H-9700 heavy-duty spring suspension, 2" oak flooring, 25,000 lb. axles, and all-wheel air brakes with ABS, this trailer is designed to handle demanding jobs with confidence.
The hydraulic removable non-ground bearing gooseneck comes standard set up for wet line operation, offering 89"–107" swing clearances. Finished in Sherwin Williams premium acrylic urethane over a two-part epoxy primer, and featuring Sealco sealed wiring, lifetime LED lights, forged D-rings, and a lockable toolbox, this 35 Ton model delivers strength, reliability, and professional-grade performance.

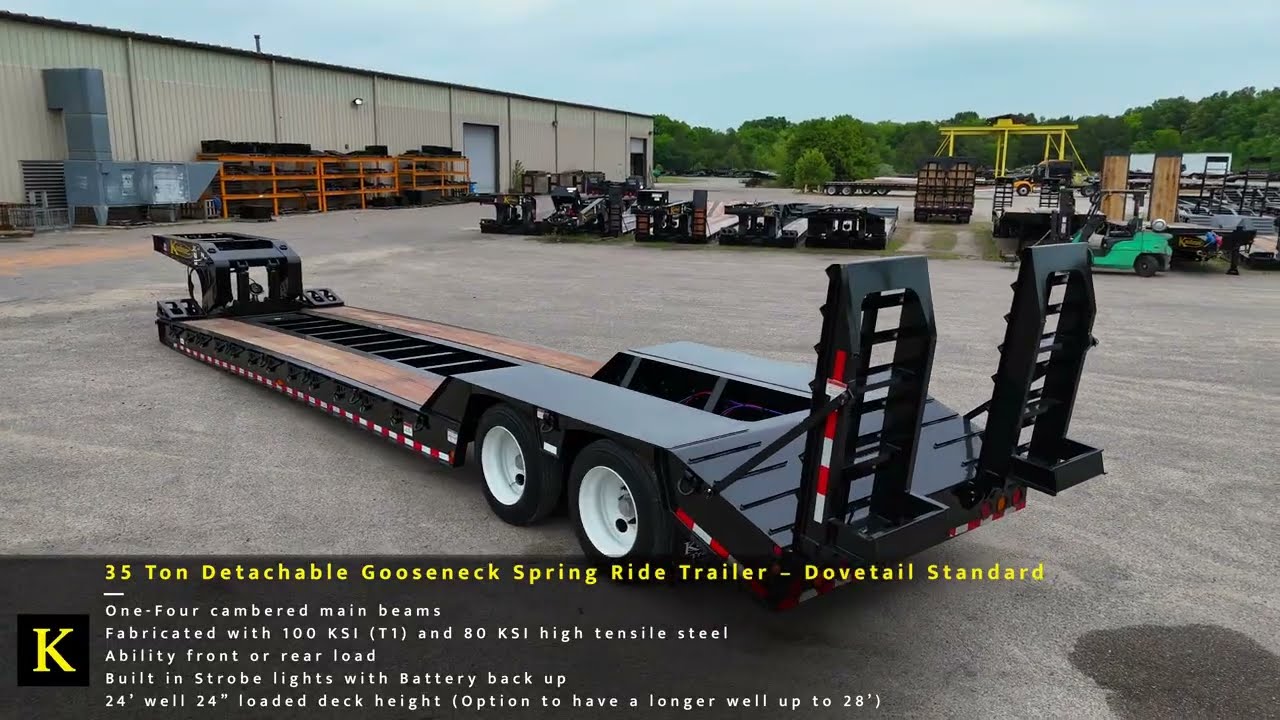

Shown with Optional Polished Aluminum Wheels, Pony Motor, and Flip Ramps.

3 Available Lengths

$47,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	87,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Deck Length:	24' well standard. Additional Optional Lengths
Electrical:	Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Deck Height:	24" (fully loaded)
Frame:	Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Deck Width:	102" (Expandable to 126" with outriggers)
Dovetail:	36” Steel with Traction Cleats
Fenders:	Heavy Duty Load Bearing Flat Fenders
Upper Deck:	See Additional Options
Lower Deck:	24' well length
Side Rail:	Full Height Fabricated
Brakes:	All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Tongue:	Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
Wheels:	10 hole steel disc / hub piloted (Aluminum Wheel Options)
Tires:	255/70 R22.5 LRH
Axles:	2-25,000 lb. axles (5" round, 5/8" wall thickness)
Floors:	2" oak flooring
Suspension:	Hutchens H-9700 Heavy Duty 3-Leaf Spring Suspension
Coupler:	2" oak flooring
Toolbox:	20" x 42" Lockable Lid Toolbox
Ramps:	Fixed Front Ramps (See Additional Options)
Finish:	Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
Tie Downs:	Forged D-rings

Option	Price	Image
Spare tire and rim	$675.00
26' and 28' Optional Well Lengths (per 2')	$1,500.00
Oak Decking in Center Bay	$475.00
Flat Deck Over the Axles (No Boom Trough)	$795.00
Apitong Decking	$650.00
Spare Mount	$100.00
Apitong Center Decking	$695.00
Polished Aluminum Wheels (Outside)	$1,200.00
Front Fenders	$740.00
Additional Paint Colors Available	$1,800.00
Dual Hinged, Flip up Front Ramps	$395.00
Dual Position Kingpin	$1,950.00
Honda Self Contained Hydraulic Kit	$2,500.00
Bucket Trough	$420.00

Product Number	Length	Price	Additional Info
FRDT35-24-24-S-49-36-N	24 ft.	$47,990.00	Well Length
FRDT35-24-26-S-49-36-N	26 ft.	$49,490.00	Well Length
FRDT35-24-28-S-49-36-N	28 ft.	$50,990.00	Well Length

Trailers For Every Industry

Whether you're in construction, landscaping, auto transport, or logistics, we have the right trailer to get the job done. Built tough and ready to work as hard as you do.
