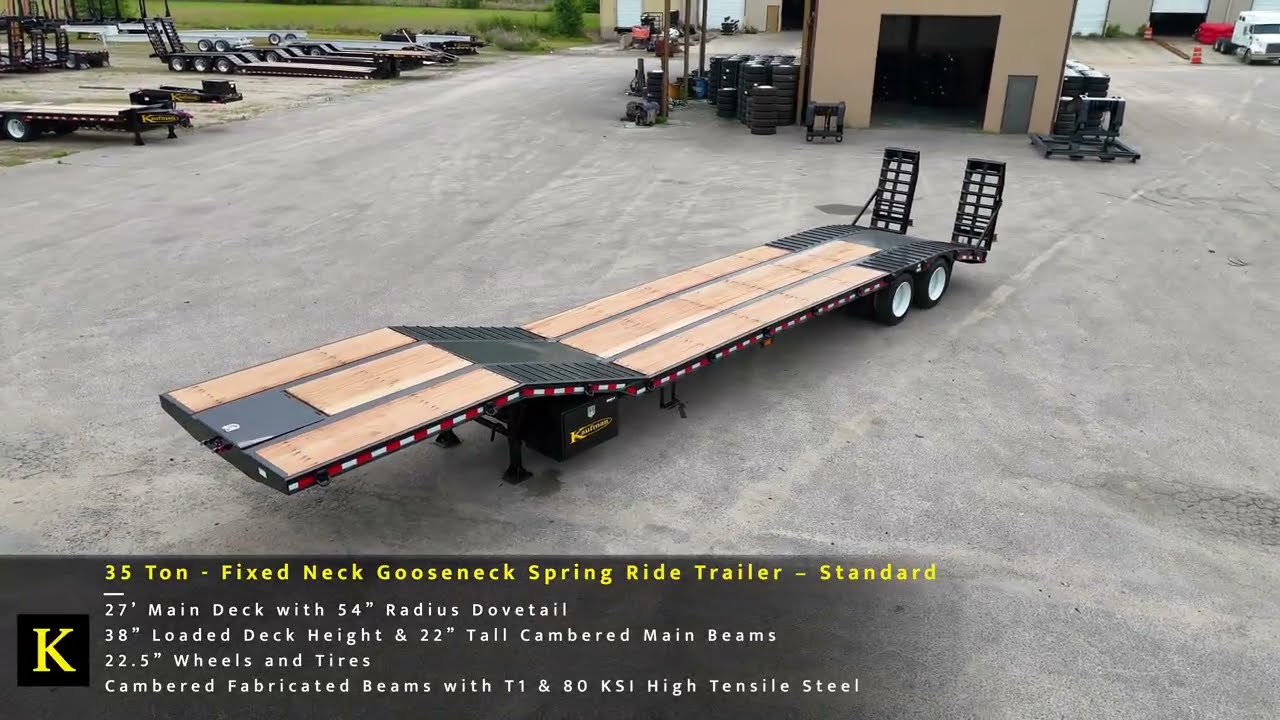

35 Ton - Fixed Neck Spring Ride Trailer - Standard

The 35 Ton Fixed Neck Gooseneck Spring Ride Trailer – Standard is built for reliable heavy equipment hauling with a focus on strength and simplicity. Rated at 85,000 lb. G.V.W.R. with a 70,000 lb. capacity in a 12’ span or greater, it features 22” tall cambered main beams made from 100 KSI (T1) and 80 KSI high tensile steel for long-term durability. The 27’ flat deck includes a 38” loaded deck height, 2” oak flooring, and a full 102” width, expandable to 126” with optional outriggers.

A smooth radius dovetail with traction cleats, full-length load-bearing fenders, and spring assist ramps make loading easy and secure. Dual 25,000 lb. axles, heavy-duty spring ride suspension, and all-wheel air brakes with ABS provide stable towing and dependable stopping power.

Finished with a premium epoxy primer and Sherwin-Williams urethane topcoat, plus lifetime LED lighting and sealed wiring, this trailer is a durable, straightforward solution for demanding jobs.

4 Available Lengths

$31,980.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	85,000 lbs. (Capacity 70,000 lbs. rated in 12 ft. bed span or greater)
Deck Length:	27'-0" Flat Deck Length
Electrical:	Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Deck Height:	38" Deck Height (Fully Loaded)
Frame:	22" tall, cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel. Heavy Duty 8" Outside Rails with deck supporting crossmembers at 12" O.C.
Deck Width:	102" (Expandable to 126" with optional outriggers)
Dovetail:	Premium Kaufman Smooth Radius Dovetail. Diamond Plate Steel with traction cleats included. Self Cleaning Dove-tail available.
Fenders:	Full Length Heavy Duty Load Bearing Fenders with Traction Cleats
Upper Deck:	Flat Load Bearing Deck over the Gooseneck with 17 degree low slope steel access ramps and traction cleats.
Lower Deck:	27' Main Deck
Side Rail:	Heavy Duty 8" Side Rail reinforced at 48" O.C. with In-Frame and Triangular Gusset back to main Beam
Brakes:	All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 2S/1M ABS
Tongue:	Hi-Yield Fully formed 3/8" thick fifth wheel plate sitting in reinforced fabricated main frame gooseneck beams
Wheels:	10 hole steel disc / hub piloted (Aluminum Wheels Optional)
Tires:	255/70 R22.5 LRH
Jack:	Heavy Duty 2 speed landing gear with Sand Shoes
Floors:	2" Oak Flooring (Center Decking Included) Apitong available upon request
Axles:	2-25,000 lb. axles (5" round, 5/8" wall thickness)
Coupler:	SAE 2" Kingpin (18.25" Kingpin Setting)
Suspension:	Heavy Duty 3 leaf Spring Ride Suspension, Air Ride Suspension available upon request
Ramps:	66" Spring assist Ramps standard, 96" Hydraulic ramps available
Toolbox:	Toolbox lid over fifth wheel plate
Tie Downs:	Forged D-rings
Finish:	Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer

Option	Price	Image
Apitong Decking	$1,345.00
Outriggers	$650.00
8' Wood Lined Hydraulic Ramps	$3,400.00
Polished Aluminum Wheels (Outside)	$1,120.00
8' Self Cleaning Hydraulic Ramps	$3,400.00
All Aluminum Wheels	$2,240.00
Stake Pockets and Rubrail	$650.00
Air Ride Suspension	$3,000.00

Product Number	Length	Price	Additional Info
FRFN35-38-27-S-49-54-84-48	27 ft.	$31,980.00	Flat Deck Length
FRFN35-38-29-S-49-54-84-48	29 ft.	$33,480.00	Flat Deck Length
FRFN35-38-31-S-49-54-84-48	31 ft.	$34,980.00	Flat Deck Length
FRFN35-38-33-S-49-54-84-48	33 ft.	$36,480.00	Flat Deck Length
