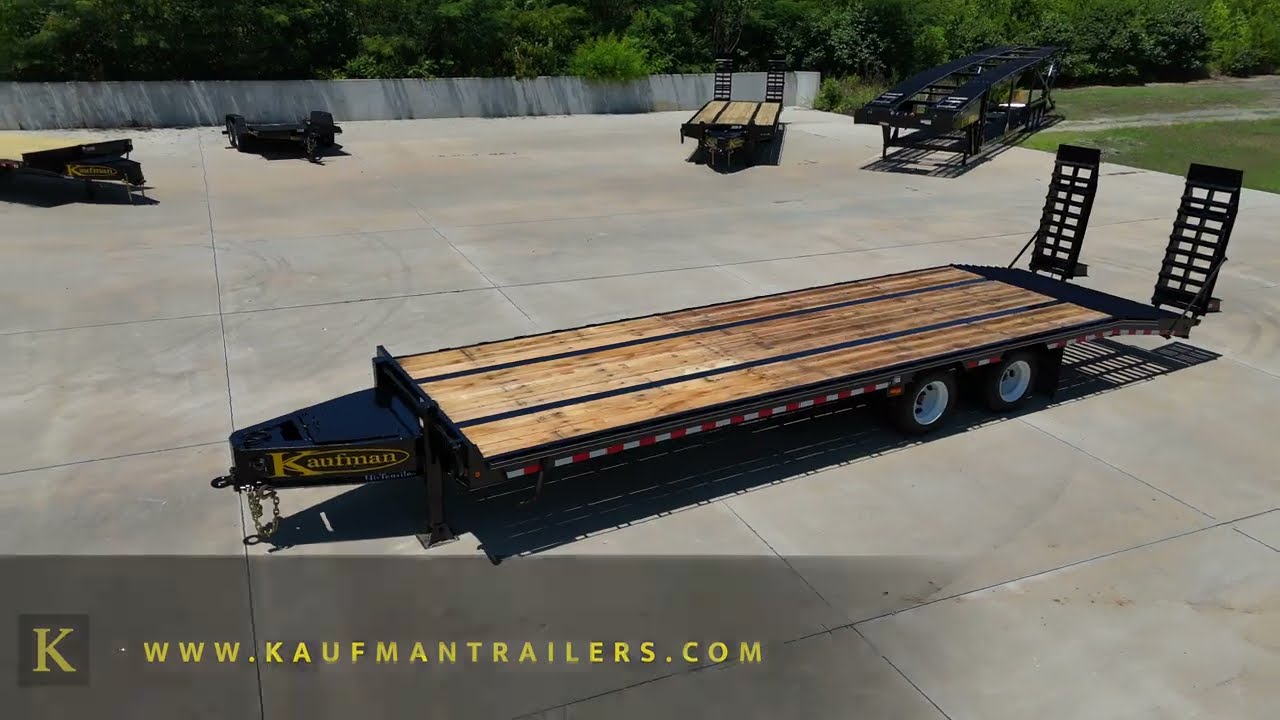

38,000 GVWR Heavy Duty Flatbed Trailer - Deluxe

Kaufman Trailers Deluxe 38,000 GVWR Heavy Duty Flatbed Trailer comes with 20 ft. of flatbed and a 5 foot cleated or oak lined dovetail. The floor is oak for long life. Ramps are 66in. x 28in. heavy duty 6 in. channel wood lined with oak, or you can get them with steal cleats - your choice. Ramps are swing-up with spring assist. We cold form the one piece frame and tongue from 14 in. at 22 lb./ft. high tensile beams. Pierced frame 4" Channel cross members are on 16" centers. Outer rails upgrade to 8" channel. Two 15,000 lb. oil-bath electric brake dual wheel Dexter Brand axles feature 5" wide brake shoes with a heavy duty Hutchens style slipper spring suspension, and 17.5 in. Load Range H radial tires for a long life and durable running gear.
Dual heavy duty 25,000 lb. drop foot two speed jacks, and a tool tray with a lockable lid are all included. You can have your choice of stake pockets with rub rail OR Heavy Duty bent 1" D Rings. Treated flooring and an adjustable pintle ring along with a US made sealed modular wiring harness and lifetime LED lighting make this high capacity 38,000 GVWR Heavy Duty Flatbed Trailer a great choice for heavy hauling when an electric brake axle trailer is needed.
This 38,000 GVWR Heavy Duty Flatbed Trailer can be delivered to you anywhere in the continental US. Call our customer service team at 866-455-7444 today!

Price Shown Does Not Include FET

3 Available Lengths

$20,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	38,000 lb., 8,000 lb. empty weight. Load capacity 30,000 lb.
Tie Downs:	Stake pockets and Rubrail OR 1" Bent D Rings
Electrical:	Sealed modular wiring harness with LED lights
Deck Length:	25 ft. (20 ft. flat + 5 ft. dove)
Frame:	14 in. Pierced i-beam, 22 ppf., with 4 in. channel crossmembers 16 in. o.c.
Deck Height:	37 in. with side steps
Dovetail:	5 ft. Oak lined dovetail
Deck Width:	Maximum 102 in.
Side Rail:	8 in. Channel
Brakes:	All wheel electric brakes - 5" Shoes
Tongue:	Cold formed
Wheels:	Heavy duty bud style dual wheels
Tires:	215/75 R17.5 LRH
Jack:	25,000 lb. dual speed jack
Floors:	1.5 in. Oak
Axles:	2 15,000 lb. Dexter Electric Brake Oil bath axles
Coupler:	Adjustable pintle eye
Suspension:	Hutchens Style Slipper spring suspension
Safety Chains:	Heavy duty safety chains
Toolbox:	Chain box with lockable lid
Ramps:	66in. x 28in. Heavy duty 6 in. channel wood lined, Swing-up with spring assist
Finish:	Primed, 2 coats of automotive grade enamel, pin striped

Option	Price	Image
Spare tire and rim	$400.00
No dovetail and no ramps (Straight deck) *Special deposit required	$-99.00
Torque tube - Required on 30ft. and 35ft.	$100.00
Cleated, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment.	$500.00
Sliding 4 in. ratchets (each) - requires sliding track	$20.00
9K Winch	$1,250.00
Sliding track for ratchets (per foot)	$20.00
Fork holders (requires measurement information)	$200.00
Pop-up cleated dovetail (3 piece)	$600.00
2 HD - Two speed 50K jacks	$500.00
Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron)	$3,400.00

Product Number	Length	Price	Additional Info
FHPP-15K-25D	25 ft.	$20,990.00	Tongue: Cold Formed Frame: 14 in. x 22 ppf. Pierced i-beam Crosspiece: 4 in. Channel, pierced Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FHPP-15K-30D	30 ft.	$21,990.00	Tongue: Cold Formed Frame: 14 in. x 22 ppf. Pierced i-beam Crosspiece: 4 in. Channel, pierced Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FHPP-15K-35D	35 ft.	$22,990.00	Tongue: Cold Formed Frame: 14 in. x 26 ppf. Pierced i-beam Crosspiece: 4 in. Channel, pierced Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
