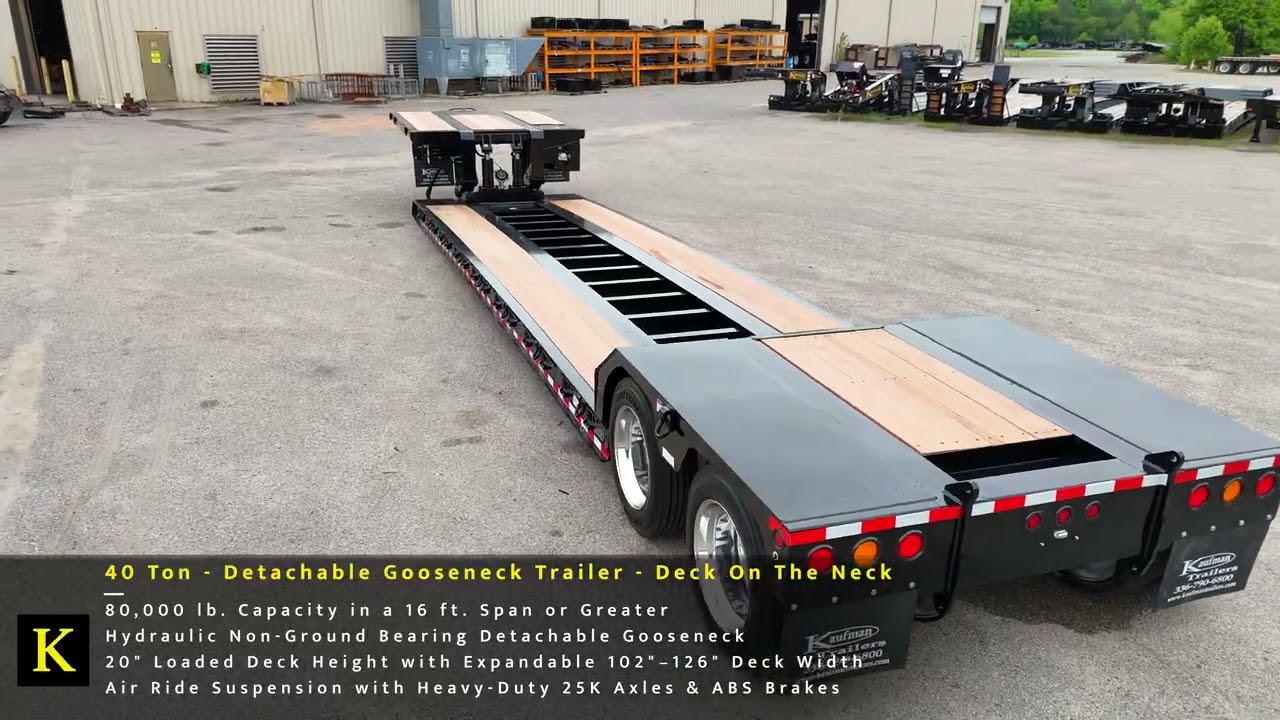

40 Ton - Detachable Gooseneck Trailer - Deck On The Neck

* Price Shown Does Not Include FET

The 40 Ton Detachable Gooseneck Trailer is built for serious hauling with a focus on strength, versatility, and ease of operation. Rated at 98,500 lbs. GVWR with an 80,000 lb. capacity in a 16 ft. span or greater, this trailer is engineered with four cambered high-tensile steel main beams and a durable 2" oak floor to handle demanding loads day in and day out. The 29’ standard well, 102” wide deck (expandable to 126”), and low 20” loaded deck height provide excellent stability and flexibility for a wide range of equipment.
Its hydraulic, non-ground bearing detachable gooseneck allows for quick loading with multiple swing clearances, while air ride suspension and heavy-duty 25K axles ensure a smooth, controlled ride. Equipped with full air brakes, ABS, sealed wiring, LED lighting, and premium Sherwin-Williams finish, this trailer is designed to perform reliably in tough conditions while maintaining a clean, professional look.

$62,900.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	98,500 lbs. (Capacity 80,000 lbs. in 16 ft. span or greater)
Deck Length:	29' well standard. Additional Optional Lengths
Electrical:	Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Deck Height:	20" (fully loaded)
Frame:	Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Deck Width:	102" (Expandable to 126" with outriggers)
Dovetail:	See Additional Options
Fenders:	Load bearing high tensile steel fenders over the tires.
Upper Deck:	120” Long x 101.5” Wide, Oak Decking, D-Rings on Side-rail
Lower Deck:	29' well length
Side Rail:	12" Fabricated
Brakes:	All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Tongue:	Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 83" - 107" available swing clearances. Comes standard set-up for wet line.
Wheels:	10 hole steel disc / hub piloted (Aluminum Wheel Options)
Tires:	255/70 R22.5 LRH
Axles:	2 - 25,000 lb. axles (5" round, 5/8" wall thickness) with Flip Prep included.
Floors:	2" oak flooring
Suspension:	Air ride suspension
Coupler:	SAE 2" Kingpin (16" Kingpin Setting)
Toolbox:	Lockable Lid Toolbox
Ramps:	Fixed Front Ramps (See Additional Options)
Finish:	Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
Tie Downs:	Forged D-rings
