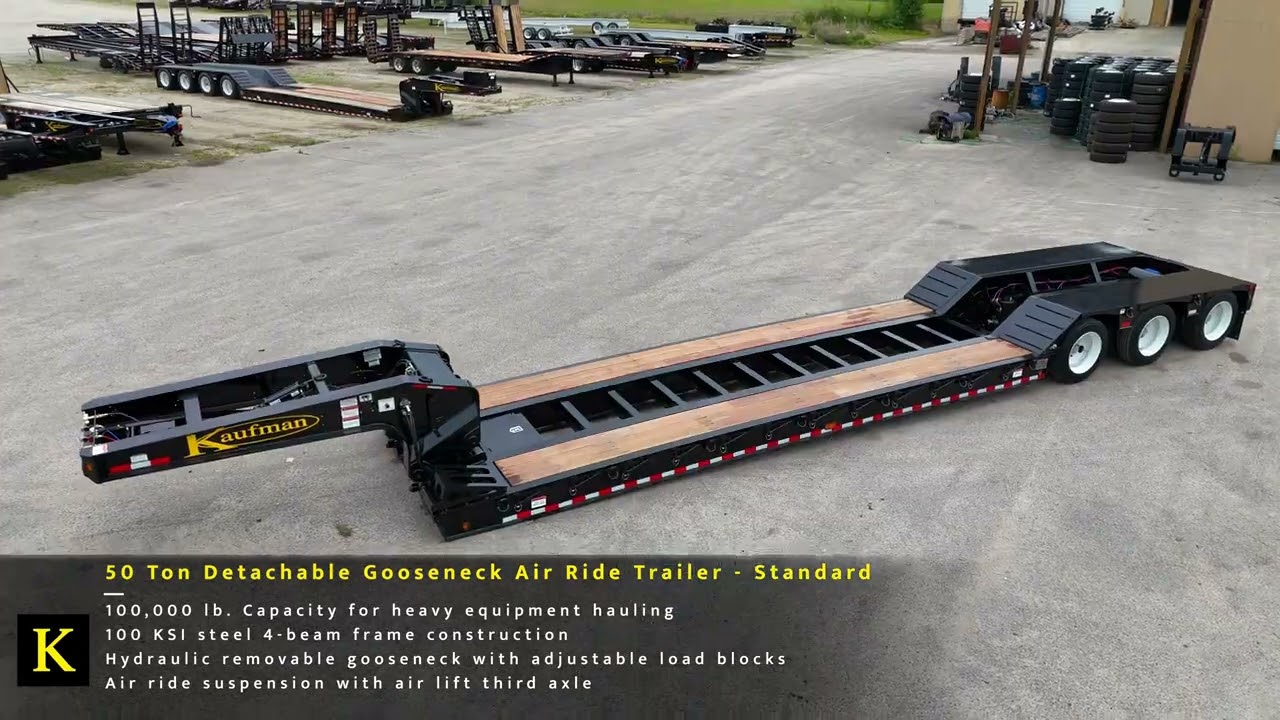

50 Ton Detachable Gooseneck Air Ride Trailer - Standard

Price Shown Does Not Include FET

The 50 Ton Detachable Gooseneck Air Ride Trailer – Standard is engineered for dependable heavy-haul performance with a 120,000 lb. G.V.W.R. and a 100,000 lb. capacity rating in a 12-foot span or greater. Built on four cambered main beams fabricated from high-strength 100 KSI (T1) and 80 KSI steel, this trailer delivers the structural integrity required for demanding equipment transport. The 24' well, 102" wide deck (expandable to 126" with outriggers), and durable 2" oak flooring provide a stable and versatile hauling platform. A hydraulic, removable, non-ground bearing gooseneck with adjustable load blocks and swing clearances from 89" to 107" allows for efficient loading and unloading, while the air ride suspension and air lift third axle enhance ride quality and maneuverability.
Equipped with 16.5" x 7" air brakes with automatic slack adjusters, 4S/2M ABS, forged D-ring tie downs, sealed wiring harness, lifetime LED lighting, and premium Sherwin Williams urethane finish over epoxy primer, this trailer is designed for long-term durability and reliability.

Shown with Optional Polished Aluminum Wheels and Flip Ramps.

1 Available Lengths

$59,900.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	120,000 lbs. (Capacity 100,000 lbs. rated in 12 ft. span or greater)
Tie Downs:	Forged D-rings
Electrical:	Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Deck Length:	24' well standard
Frame:	Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Deck Height:	24" (fully loaded)
Dovetail:	See Additional Options
Deck Width:	102" (Expandable to 126" with outriggers)
Upper Deck:	See Additional Options
Fenders:	See Additional Options
Side Rail:	Full Height Fabricated
Brakes:	All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Tongue:	Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
Wheels:	10 hole steel disc / hub piloted (Aluminum Wheel Options)
Tires:	255/70 R22.5 LRH
Axles:	3 - 25,000 lb. axles (5" round, 5/8" wall thickness) with air lift 3rd axle (54" spacing)
Floors:	2" oak flooring
Suspension:	Air ride suspension
Coupler:	SAE 2" Kingpin (16" Kingpin Setting)
Toolbox:	20" x 42" Lockable Lid Toolbox
Ramps:	Fixed Front Ramps (See Additional Options)
Finish:	Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer

Option	Price	Image
Spare tire and rim	$675.00
Spare Mount	$100.00
Oak Decking in Center Bay	$475.00
Polished Aluminum Wheels (Outside)	$1,659.00
Apitong Decking	$650.00
Load Supporting Rear Fenders	$960.00
Front Fenders	$740.00
Additional Paint Colors Available	$1,800.00
Dual Hinged, Flip up Front Ramps	$395.00
Dual Position Kingpin	$1,950.00
Honda Self Contained Hydraulic Kit	$2,500.00
Bucket Trough	$420.00
Flat Deck Over the Axles	$995.00

Product Number	Length	Price	Additional Info
FRDT50-24-24-A-54-00-N	26 ft.	$59,900.00
