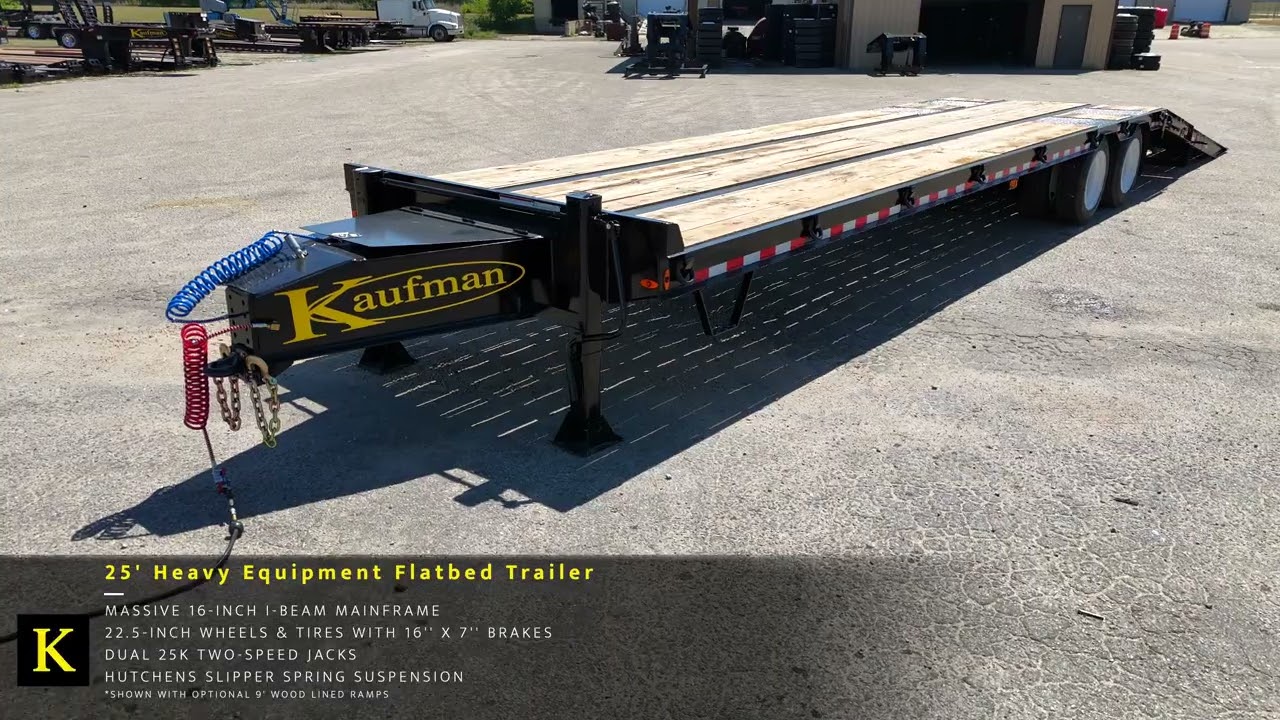

53,000 GVWR Heavy Equipment Flatbed Trailer - 25 ft.

Price Shown Does Not Include FET

This heavy-duty air brake pintle flatbed features a 16-inch I-beam mainframe at 26 lb./ft. with cold-formed tongue. Crossmembers combine 4-inch and 6-inch channel with pierced construction. Upgrades include 25k capacity airbrake axles on Hutchens suspension, 16-inch brakes (versus 12-inch standard), and 22.5-inch tires (versus 17.5-inch standard). Equipped with Haldex ABS braking, oak flooring, Sealco modular wiring, and lockable tool tray. Optional 9-foot hydraulic ramps available for paving equipment.

This 53,000 GVWR Airbrake Trailer is available from our North and South Carolina plants, but not our Nebraska plant.

3 Available Lengths

$22,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	53,000 lb. 10,000 lb. empty wt., Capacity 43,000 lb.
Tie Downs:	D-rings
Electrical:	DOT approved lights, connectors, and sealed wiring harness
Deck Length:	25 ft, 30 ft, or 36 ft
Frame:	16 in. Pierced i-beam, 26 ppf. with a mixture of 4 in. and 6 in. channel crossmembers
Deck Height:	39 in. with side steps standard
Dovetail:	5 ft. Oak (6 ft. on 30 ft. and 36 ft. models)
Deck Width:	Maximum 102 in.
Side Rail:	8 in. Channel
Brakes:	All wheel air brake 16 in. by 7 in. with spring lock each wheel (ABS)
Tongue:	Cold formed
Wheels:	Heavy duty dual 22.5 in. wheels
Tires:	255/70 R22.5 LRH (5,070 lb.)
Jack:	2 - 25,000 lb. Dual speed jacks
Floors:	Oak with steel plate over tire areas
Axles:	25,000 Fleetcraft or Power Products oil bath axles
Coupler:	Adjustable pintle eye
Suspension:	Hutchens slipper
Safety Chains:	Heavy duty safety chains
Toolbox:	Lockable lid on tongue
Ramps:	72in. x 28in. Heavy duty 6 in. channel wood lined, Swing-up with spring assist
Finish:	Primed, 2 coats of 2 part polyurethane enamel

Option	Price	Image
Self-contained hydraulic ramps, 34.5 in. x 9 ft. (wood lined)	$3,400.00
Loose spare tire	$500.00
Cleated angle iron dovetail	$500.00
Self-contained hydraulic ramps, 33 in. x 96 in. (self-cleaning, cleated angle iron)	$3,800.00
Aluminum Outer Rims	$1,120.00

Product Number	Length	Price	Additional Info
FAP-25K-25D	25 ft.	$22,990.00	Tongue: Cold Formed Frame: 16 in. x 26 ppf. Pierced i-beam Crosspiece: 4 in. and 6 in. Channel Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FAP-25K-30D	30 ft.	$24,490.00	Tongue: Cold Formed Frame: 16 in. x 26 ppf. Pierced i-beam Crosspiece: 4 in. and 6 in. Channel Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FAP-25K-36D	36 ft.	$25,990.00	Tongue: Cold Formed Frame: 16 in. x 26 ppf. Pierced i-beam Crosspiece: 4 in. and 6 in. Channel Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
