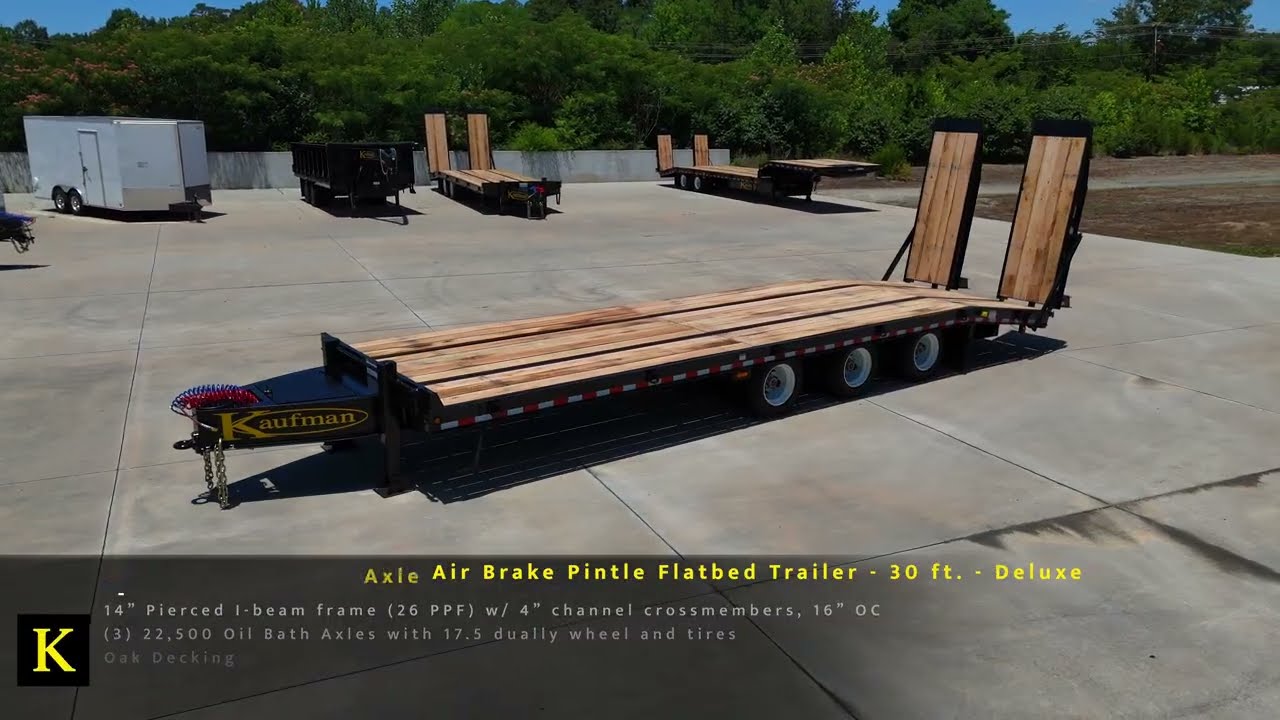

62,000 GVWR Air Brake Pintle Flatbed Trailer - 30 ft.

Price Shown Does Not Include FET

Kaufman Trailers tri-axle airbrake 62000 GVWR Heavy Equipment Flatbed Trailer is an industry leader in value. Construction begins with one piece 14 in. at 26 lb./ft. high tensile main beams. We cold form the tongue in a hydraulic press for a gradual transition and use pierced crossmember construction. Fleetcraft or Power Products 22.5K airbrake oil bath axles ride on a Hutchens long life suspension. A Haldex ABS braking system, spring brakes on all axles, oak flooring, Sealco modular wiring harness, and a tool tray with a lockable lid make this a fully equipped tri-axle 62000 GVWR Heavy Equipment Flatbed Trailer. Optional hydraulic ramps make this flatbed trailer perfect for paving equipment.

This 66,000 GVWR Airbrake Trailer is available from our North and South Carolina plants, but not our Nebraska plant.

2 Available Lengths

$26,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	62,000 lb. 11,440 lb. empty wt., Capacity 50,560 lb.
Tie Downs:	D-rings
Electrical:	DOT approved lights, connectors, and sealed wiring harness
Deck Length:	30 ft. (25 ft. flat + 5 ft. dove)
Frame:	14 in. Pierced i-beam, 26 ppf. with 4 in. channel crossmembers, 16 in. o.c.
Deck Height:	35 in. With side steps standard
Dovetail:	5 ft. Oak
Deck Width:	Maximum 102 in.
Side Rail:	8 in. Channel
Brakes:	All wheel air brake with spring lock each wheel (ABS)
Tongue:	Cold formed
Wheels:	Heavy duty dual 17.5 in. wheels
Tires:	215/75 R17.5 LRH (4,540 lb.)
Jack:	2 - 25,000 lb. Dual speed jacks
Floors:	Oak
Axles:	3-22,500 Fleetcraft or Power Products oil bath axles
Coupler:	Adjustable pintle eye
Suspension:	Hutchens slipper
Safety Chains:	Heavy duty safety chains
Toolbox:	Lockable lid on tongue
Ramps:	72in. x 28in. Heavy duty wood lined, Swing-up with spring assist
Finish:	Primed, 2 coats of automotive grade enamel

Option	Price	Image
Spare tire and rim	$400.00
Air Lift Front Axle	$4,000.00
9K Winch	$1,250.00
Dual Hydraulic Jacks	$2,000.00
No dovetail or ramps (Straight deck) *Special deposit required	$-99.00
Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron)	$3,400.00
72"x28" Self Cleaning (cleated angle iron) Ramps	$500.00
Aluminum Outer Rims	$1,500.00
5 ft. Self-cleaning (cleated angle iron) dove	$500.00

Product Number	Length	Price	Additional Info
FAP-3/22.5K-30	30 ft.	$26,990.00	Tongue: Cold Formed Frame: 14 in. x 26 ppf. Pierced I-beam Crosspiece: 4 in. Channel Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 8 in. Channel
FAP-3/22.5K-35	35 ft.	$28,490.00	Tongue: Cold Formed Frame: 14 in. x 26 ppf. Pierced I-beam, with torque tube Crosspiece: 4 in. Channel Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 8 in. Channel
