66,000 GVWR Air Brake Pintle Flatbed Trailer - 30 ft.

Price Shown Does Not Include FET

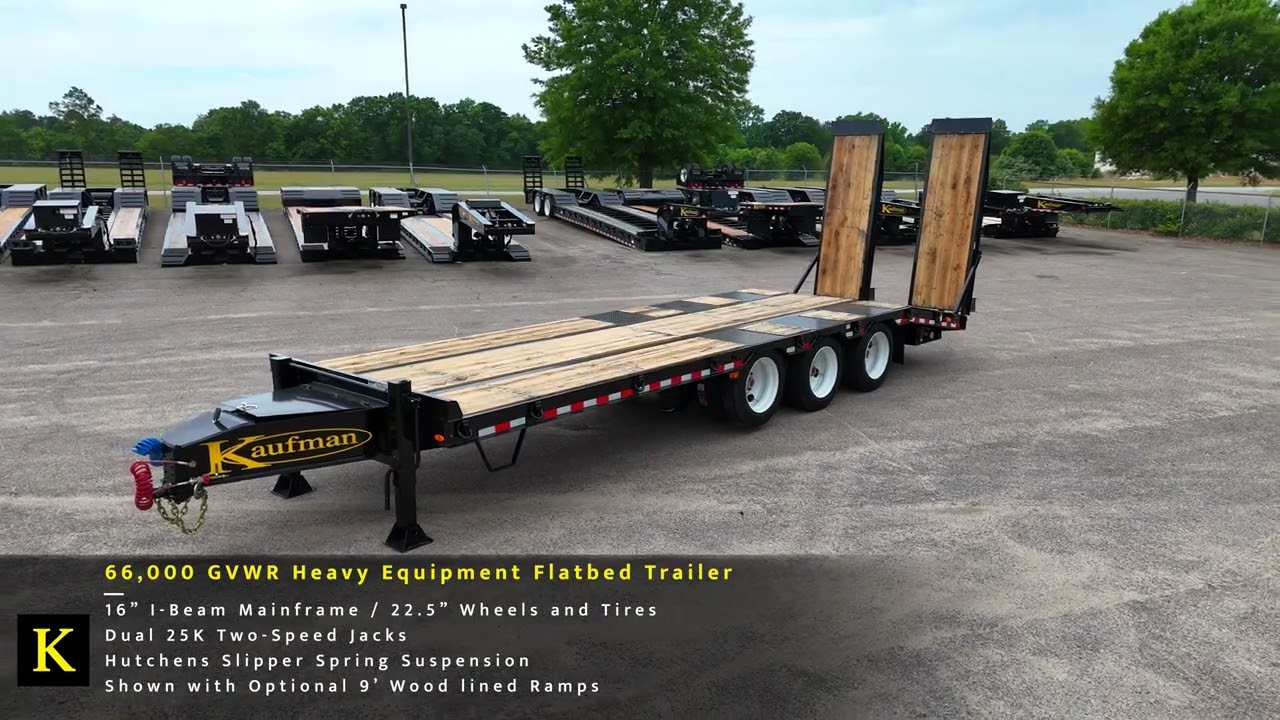

Shown with Optional Hydraulic Ramps

Built for serious hauling and demanding commercial use, the Kaufman 66,000 GVWR Air Brake Pintle Flatbed Trailer delivers heavy-duty strength, upgraded braking power, and dependable performance for contractors, paving crews, and equipment operators.

Featuring a massive 16" I-beam main frame, 25K oil bath air brake axles on Hutchens suspension, dual 22.5" wheels, and full air brakes with ABS, this trailer is engineered to handle larger equipment with confidence and control. The cold-formed tongue, heavy-duty oak deck, and optional wood-lined hydraulic ramps make loading and transporting paving and construction equipment easy and reliable.

Built factory direct with premium components throughout, this trailer is designed for long service life in demanding conditions.

* This 66,000 GVWR Airbrake Trailer is available from our North and South Carolina plants, but not our Nebraska plant.

2 Available Lengths

$28,490.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	66,000 lb. 12,000 lb. empty wt., Capacity 56,000 lb.
Tie Downs:	D-rings
Electrical:	DOT approved lights, connectors, and sealed wiring harness
Deck Length:	30 ft. or 36 ft.
Frame:	16 in. Pierced i-beam, 26 ppf. with a mixture of 4 in. and 6 in. channel crossmembers, 16 in. on center
Deck Height:	39 in. with side steps standard
Dovetail:	6 ft. Oak
Deck Width:	Maximum 102 in.
Side Rail:	8 in. Channel
Brakes:	All wheel air brake 16 in. by 7 in. with spring lock each wheel (ABS)
Tongue:	Cold formed
Wheels:	Heavy duty dual 22.5 in. wheels
Tires:	255/70 R22.5 LRH (5,070 lb.)
Jack:	2 - 25,000 lb. Dual speed jacks
Floors:	Oak with steel plate over tire areas
Axles:	25,000 Fleetcraft or Power Products oil bath axles
Coupler:	Adjustable pintle eye
Suspension:	Hutchens slipper; 3rd lift axle optional
Safety Chains:	Heavy duty safety chains
Toolbox:	Lockable lid on tongue
Ramps:	72in. x 28in. Heavy duty 8 in. channel wood lined, Swing-up with spring assist
Finish:	Primed, 2 coats of 2 part polyurethane enamel

Option	Price	Image
Air Lift Front Axle	$4,000.00
Self-contained hydraulic ramps, 33 in. x 96 in. (self-cleaning, cleated angle iron)	$3,800.00
Self-contained hydraulic ramps, 34.5 in. x 9 ft. (wood lined)	$3,400.00
Aluminum Outer Rims	$1,660.00
Cleated angle iron dovetail	$500.00
Hydraulic Jacks	$2,500.00
Loose spare tire	$500.00

Product Number	Length	Price	Additional Info
FAP-3/25K-30D	30 ft.	$28,490.00	Tongue: Cold Formed Frame: 16 in. x 26 ppf. Pierced i-beam Crosspiece: 4 in. and 6 in. Channel Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FAP-3/25K-36D	36 ft.	$29,990.00	Tongue: Cold Formed Frame: 16 in. x 26 ppf. Pierced i-beam Crosspiece: 4 in. and 6 in. Channel Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
