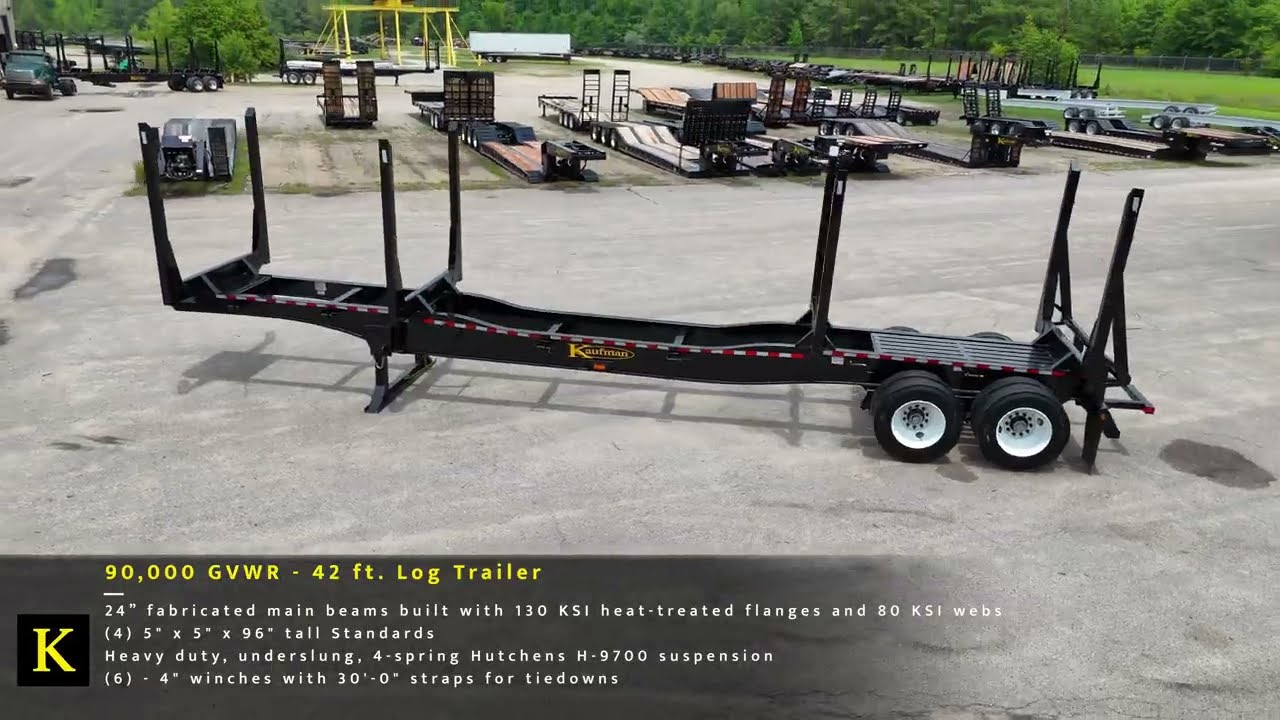

90,000 GVWR 42 ft. Log Trailer

Kaufman Trailers Standard four bolster Log Trailer is built with a 24” deep, high tensile, fully fabricated main beams frame and full depth cross-members at each bolster. Our attention to detail and quality materials are the best in the industry! Frame flanges are heat treated 130 KSI with 80 KSI high tensile webbing. Standard suspension is a heavy duty, underslung, 4-spring Hutchens H-9700. A popular feature of this trailer is the low ride height at the rear. With the underslung suspension, this trailer provides much more stability and eliminates the feared sway when rounding turns and rocking through the woods therefore ensuring you years of service. We also offer the same suspension in the traditional overslung mode. Two popular optional suspensions are also available for a nominal up charge. These are a Watson single point or Ridewell air ride suspension.

Our straight frame style log trailers for sale are a best seller providing excellent value at $25,990 + FET. Contact Kaufman Trailers today and ask for Log Trailer Sales to speak to one of our knowledgeable sales reps!

See our Log Trailer ads in The Truck Paper, Southern Loggin’ Times, and Lumbermen Online.

Optional color upcharge for any color other than standard black. Call for details.

$25,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	90,000 lbs.
Deck Width:	102 in.
Electrical:	DOT approved lighting, US made sealed wiring harness, LED lights
Brakes:	All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 2S/1M ABS, Spring brakes on all axles
Frame:	(2) - 24" nominal Main-frame full length beams, fabricated with 130 KSI high tensile flanges and 80 KSI high tensile webs.
Wheels:	10 hole steel disc / hub piloted
Side Rail:	5" x 5" x 96" tall Standards with 24" bolster to standard gusset
Jack:	6" x 4" tubing
Tires:	11R24.5
Axles:	2-25,000 lb. axles (5" round, 5/8" wall thickness)
Floors:	4" x 10" Bolsters with continuous formed cap plate on log bearing surface for added durability
Suspension:	Hutchens H-9700 Heavy duty suspension
Coupler:	SAE 2" Kingpin (20" Kingpin setting)
Toolbox:	(2) - piano hinge lid toolboxes over fifth wheel
Tie Downs:	(6) - 4" winches with 30'-0" straps
Finish:	Two part polyurethane paint, over an epoxy primer
Deck Length:	42'-0" Main-frame plus 3'-0" heavy duty bumper and grapple bar assembly
