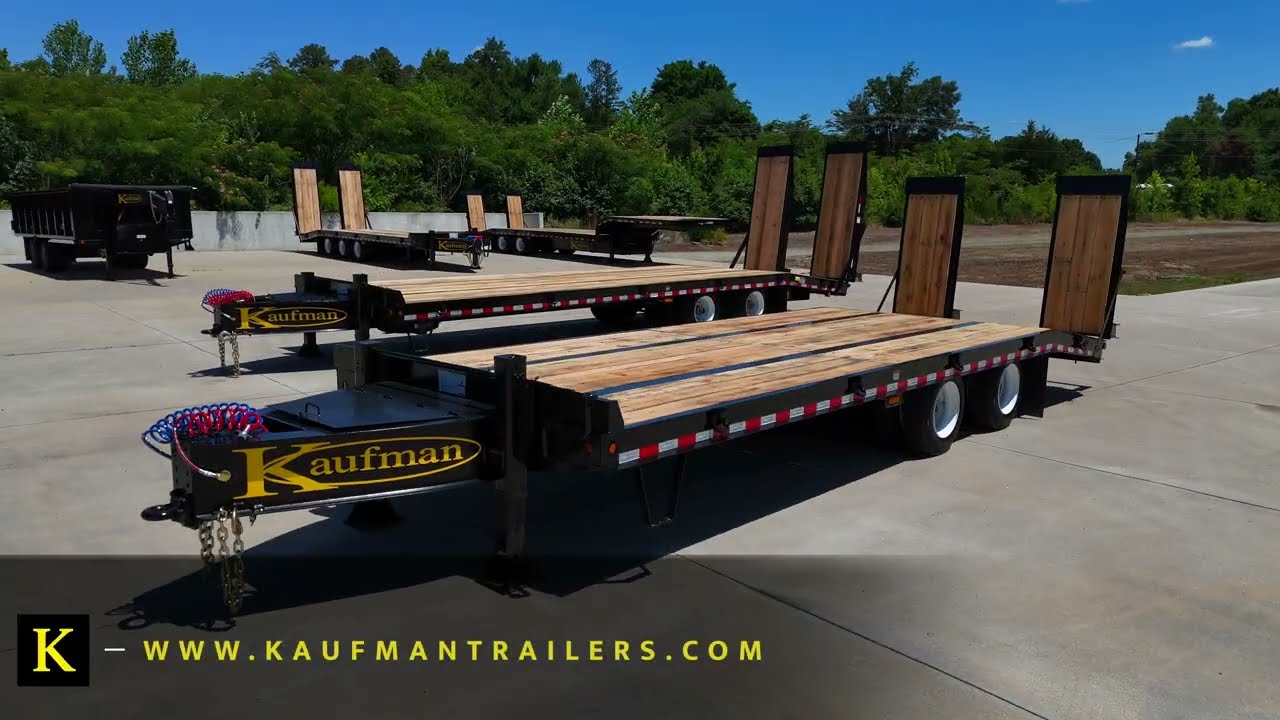

45,000 GVWR Heavy Equipment Flatbed Trailer - 25 ft.

Price Shown Does Not Include FET

Kaufman Trailers 45,000 GVWR Air Brake Pintle Trailer is an industry leader in value. Construction begins with one piece 14 in. at 22 lb./ft. high tensile main beams.
We cold form the tongue in a hydraulic press with 4 in. channel pierced crossmember construction. Fleetcraft or Power Products 22.5K airbrake oil bath axles ride on a Hutchens suspension. A Haldex ABS braking system with spring brakes on both axles, oak flooring, Sealco modular wiring harness, and a tool tray with a lockable lid make this tandem axle flatbed trailer a fully equipped value.
Our popular optional hydraulic ramps make this 45000 GVWR Heavy Equipment Flatbed Trailer ideal for paving equipment.

3 Available Lengths

$21,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	45,000 lb. 9,500 lb. empty wt., Capacity 35,500 lb.
Tie Downs:	D-rings
Electrical:	DOT approved lights, connectors, and sealed wiring harness
Deck Length:	25 ft. (20 ft. flat + 5 ft. dove)
Frame:	14 in. Pierced i-beam, 22 ppf., with 4 in. channel crossmembers 16 in. o.c.
Deck Height:	35 in. With side steps standard
Dovetail:	5 ft. Oak
Deck Width:	Maximum 102 in.
Side Rail:	8 in. Channel
Brakes:	All wheel air brake with spring lock each wheel (ABS)
Tongue:	Cold formed
Wheels:	Heavy duty dual 17.5 in. wheels
Tires:	215/75 R17.5 LRH (4,540 lb.)
Jack:	2 - 25,000 lb. Dual speed jacks
Floors:	Oak
Axles:	22,500 Fleetcraft or Power Products oil bath axles
Coupler:	Adjustable pintle eye
Suspension:	Hutchens slipper
Safety Chains:	Heavy duty safety chains
Toolbox:	Lockable lid on tongue
Ramps:	66in. x 28in. Heavy duty 6 in. channel wood lined, Swing-up with spring assist
Finish:	Primed, 2 coats of automotive grade enamel

Option	Price	Image
Spare tire and rim	$400.00
Dual Hydraulic Jacks	$2,000.00
9K Winch	$1,250.00
Aluminum Outer Rims	$1,000.00
No dovetail or ramps (Straight deck) *Special deposit required	$-99.00
Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron - additional cost) Specify to your Sales Rep 5' OR 6' dovetail. 6' dovetail recommended for paving equipment	$3,400.00
66"x28" Self-Cleaning Ramps	$300.00
Self-contained FULL Width hydraulic ramps, wood lined 46 in. x 96 in. 6' dovetail recommended for paving equipment	$4,000.00
5 ft. Self-cleaning (cleated angle iron) dove	$500.00

Product Number	Length	Price	Additional Info
FAP-22.5K-25	25 ft.	$21,990.00	Tongue: Cold Formed Frame: 14 in. x 22 ppf. Pierced i-beam Crosspiece: 4 in. Channel Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FAP-22.5K-30	30 ft.	$23,490.00	Tongue: Cold Formed Frame: 14 in. x 26 ppf. Pierced i-beam, with torque tube Crosspiece: 4 in. Channel Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FAP-22.5K-35	35 ft.	$24,990.00	Tongue: Cold Formed Frame: 14 in. x 26 ppf. Pierced i-beam, with torque tube Crosspiece: 4 in. Channel Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
