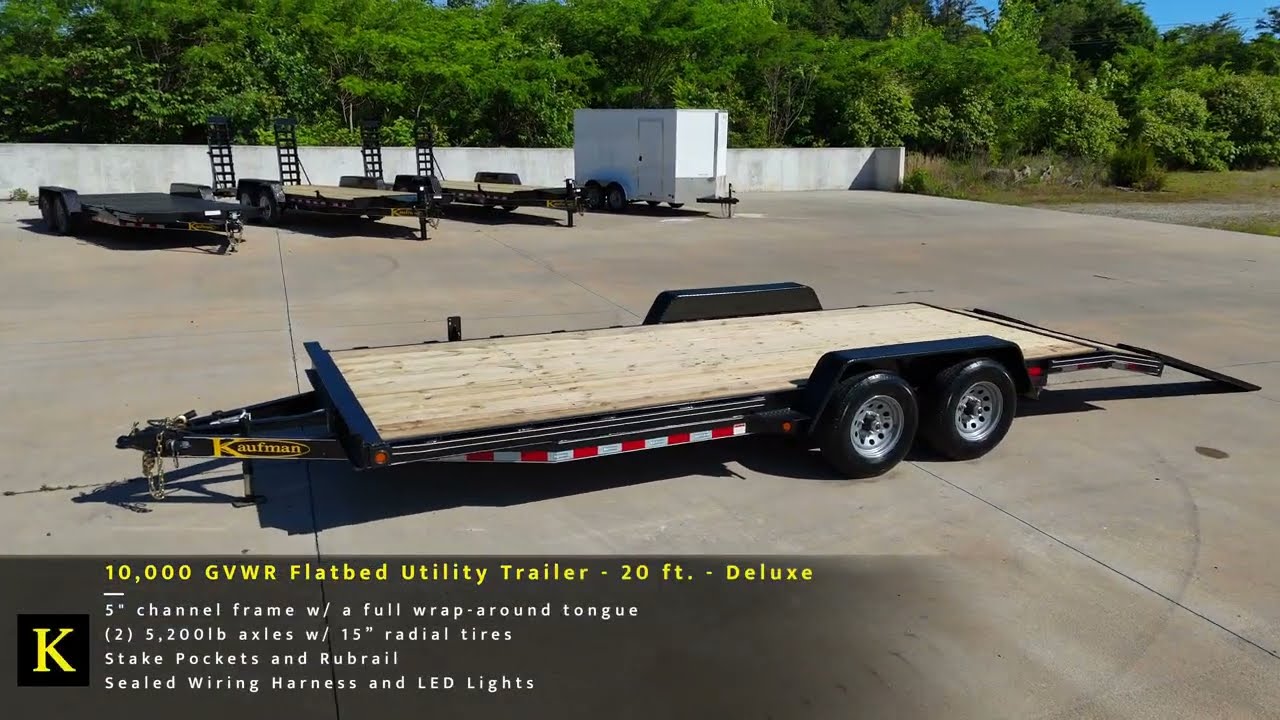

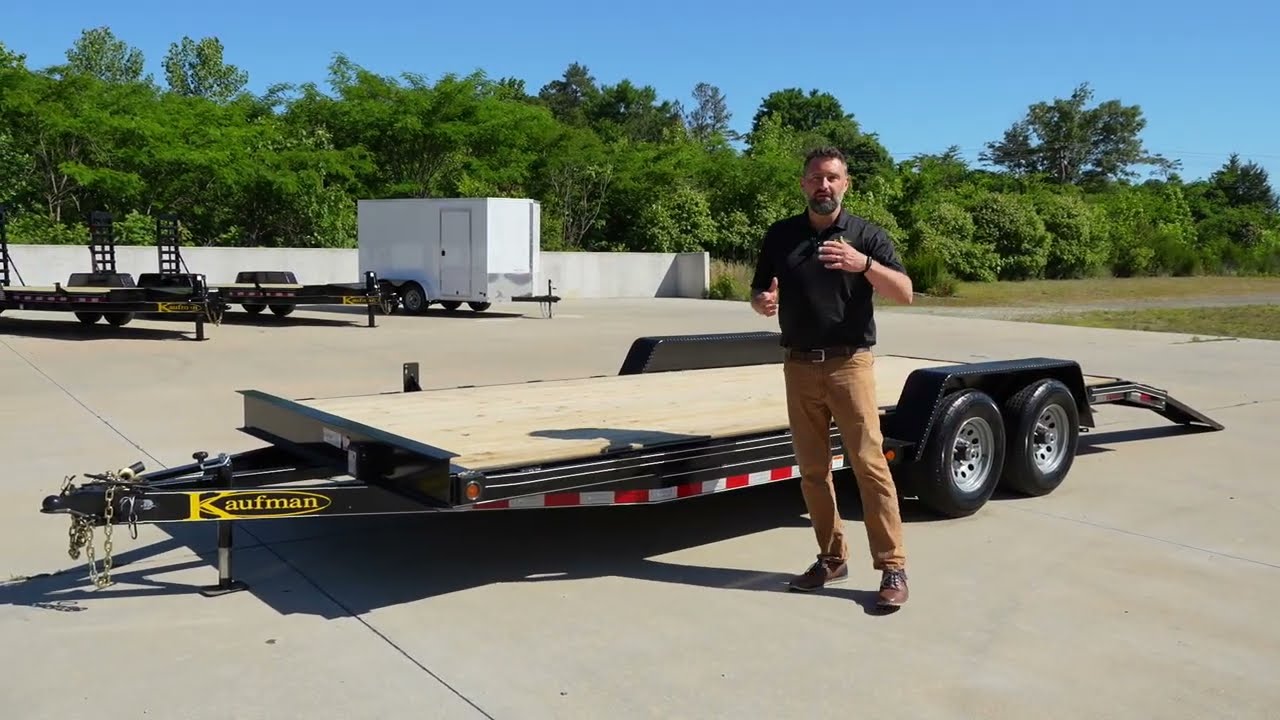

Deluxe 10000 GVWR Flatbed Utility Trailer - 20 ft.

Kaufman Trailer's Deluxe 10000 GVWR Flatbed Utility Trailer is constructed with a 5" channel frame, and 5" channel full length wrap-around tongue with channel cross members. The running gear upgrades to 5.2K axles, with four-wheel brakes, and 225/75 R15 load range D RADIAL tires. Standard features include a fixed 2 5/16" A-frame coupler, swing up jack, heavy duty diamond plate fenders, and dovetail with slide-in loading ramps. A sealed modular wiring harness with lifetime LED rubber mounted lights plus rub rail on the stake pockets give added value to this Deluxe 10000 GVWR Flatbed Utility Trailer.

3 Available Lengths

$5,290.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	10,000 lb.
Deck Length:	20 ft. (18 flat + 2 ft. dovetail)
Electrical:	Sealed modular wiring harness with LED lights
Deck Height:	22 in.
Frame:	5 in channel frame, with 3 in channel crossmembers 24"o.c.
Deck Width:	82 in. Between fenders
Dovetail:	2 ft.
Fenders:	Heavy duty diamond plate fenders
Tongue:	5 in. Channel wrap around
Brakes:	Standard all wheel brakes
Tires:	225/75 R15 (2,540 lb.) Radial
Wheels:	Silver or white mod (Based on stock)
Floors:	2 in. Treated Wood
Jack:	2,000 lb. Swing up jack
Coupler:	2-5/16 Ball a-frame coupler
Axles:	2-5,200 lb. e-z lube axles
Safety Chains:	Heavy duty safety chains
Suspension:	Double eye springs
Ramps:	60 in. x 14 in. Slide in ramps, with 2 in. x 2 in. x 3/8 in. angle runners
Finish:	Primed, 2 coats of automotive grade enamel, pin striped
Tie Downs:	Stake pockets and Rubrail

Option	Price	Image
Spare tire and rim	$180.00
6K Winch	$950.00
Removable Fender (each)	$100.00

Product Number	Length	Price	Additional Info
FAW-5.2K-16D	16 ft.	$5,270.00	Tongue: 5 in. Channel Frame: 5 in. Channel Crosspiece: 3 in. Channel Centers: 24 in. Ramp Runners: 2 in. x 2 in. x 3/8 in. Angle
FAW-5.2K-18D	18 ft.	$5,280.00	Tongue: 5 in. Channel Frame: 5 in. Channel Crosspiece: 3 in. Channel Centers: 24 in. Ramp Runners: 2 in. x 2 in. x 3/8 in. Angle
FAW-5.2K-20D	20 ft.	$5,290.00	Tongue: 5 in. Channel Frame: 5 in. Channel Crosspiece: 3 in. Channel Centers: 24 in. Ramp Runners: 2 in. x 2 in. x 3/8 in. Angle

Trailers For Every Industry

Whether you're in construction, landscaping, auto transport, or logistics, we have the right trailer to get the job done. Built tough and ready to work as hard as you do.
