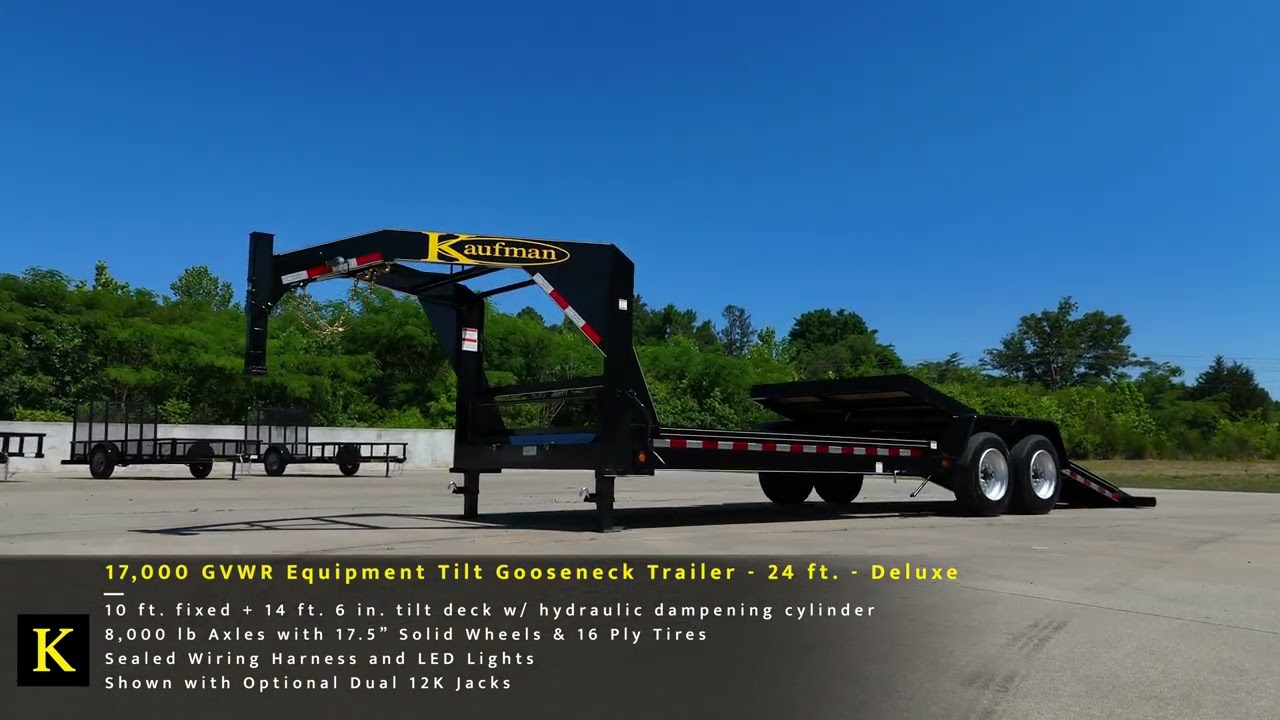

Deluxe 17000 GVWR Equipment Tilt Gooseneck Trailer - 24 ft.

Our best Deluxe 17000 GVWR Equipment Tilt Gooseneck Trailer includes all our standard features with our 8,000 lb. axles and 17.5 load range H radial tires. This premium model also includes the following frame features: 6 in. channel main frame with 6 in. channel doubler from axles forward, 8 in. channel uprights and neck, 3 in. channel cross members on 17 in. centers. Also included are standard features such as adjustable coupler, heavy duty 12K drop foot jack, heavy duty diamond plate fenders, stake pockets and rubrails, and a toolbox with a lockable lid. The running gear is 8,000 lb. axles with heavy duty slipper spring suspension and 17.5 in. radial tires. A treated wood floor is standard. There is a 10' fixed front section for hauling accessories. The tilting rear deck makes loading your equipment easy and safe with its hydraulic damping system. The floor is even with the top of the frame for simple side loading of palletized materials. Sealed beam rubber mount LED lights round out this great value package. Diamond floor option is available on this Deluxe 17000 GVWR Equipment Tilt Gooseneck Trailer.

5 Available Lengths

$9,490.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices
866.455.7444
G.V.W.R.:17,000 GVWR
Deck Height:26 in.
Electrical:Sealed wiring harness with lifetime LED lights
Deck Width:82 in. Between fenders
Frame:6 in. Channel, with 3 in. channel cross members. 17 in. on center
Fenders:Diamond plate fenders
Tongue:8 in. Channel gooseneck
Brakes:All wheel electric brakes
Tires:215/75 R17.5
Wheels:Heavy duty steel wheels
Floors:2 in. Treated Wood
Jack:12,000 lb. Drop foot jack
Coupler:2 5/16 adjustable gooseneck coupler
Axles:2-8,000 lb. e-z lube axles
Safety Chains:Heavy duty safety chains
Suspension:Slipper springs
Tie Downs:Stake pockets and Rubrail
Toolbox:Chain box with lockable toolbox
Deck Length:24 ft. (10 ft. fixed + 14 ft. 6 in. tilt deck with hydraulic cylinder)
Finish:Primed, 2 coats of automotive grade enamel, pin striped
Option Price Image
Spare tire and rim (17.5) $400.00
Kingpin hitch $100.00
Dual 12K jacks $140.00
Diamond plate floor, (with 3 in. channel crossmembers 16 in. on center) $1,000.00
Fork holders (requires measurement information) $200.00

Product Number Length Price Additional Info
FDWTG-8K-20D 20 ft. $9,470.00 Tongue: 8 in. Channel
Frame: 6 in. Channel
Crosspiece: 3 in. Channel
Centers: 17 in.
FDWTG-8K-22D 22 ft. $9,480.00 Tongue: 8 in. Channel
Frame: 6 in. Channel
Crosspiece: 3 in. Channel
Centers: 17 in.
FDWTG-8K-24D 24 ft. $9,490.00 Tongue: 8 in. Channel
Frame: 6 in. Channel
Crosspiece: 3 in. Channel
Centers: 17 in.
FDWTG-8K-26D 26 ft. $9,690.00 Tongue: 8 in. Channel
Frame: 6 in. Channel
Crosspiece: 3 in. Channel
Centers: 17 in.
FDWTG-8K-28D 28 ft. $9,890.00 Tongue: 8 in. Channel
Frame: 6 in. Channel
Crosspiece: 3 in. Channel
Centers: 17 in.
