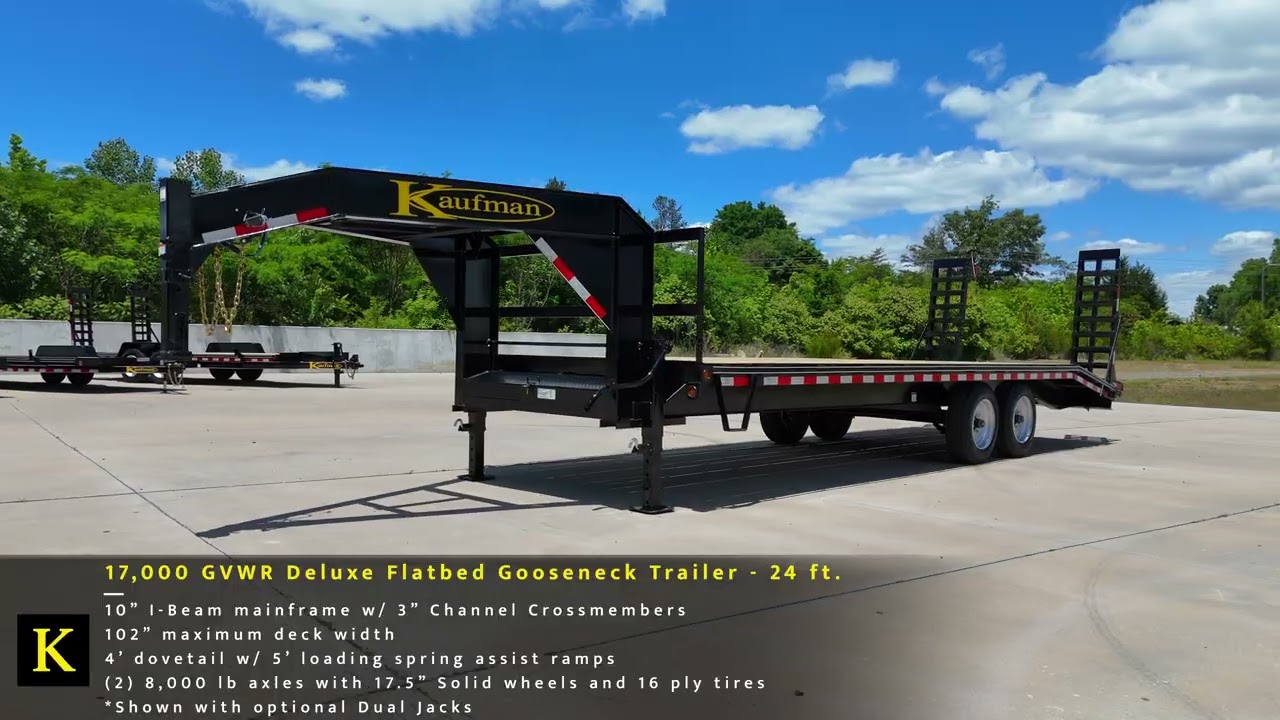

Deluxe 17000 GVWR Flatbed Gooseneck Trailer - 24 ft.

Kaufman Trailers Deluxe 17000 GVWR Flatbed Gooseneck Trailer features an 10" I-beam mainframe with 3" channel stacked cross-members on 18" centers and 6" outer rails. 20' of flatbed with a 4' dovetail and 5' cleated swing up ramps make for easy loading of equipment. This model has beefed up ramps built with 4 in. channel ramp frame runners. Two 7,000 lb. electric brake axles with heavy duty slipper spring suspension, and radial tires provide a long lasting and durable running gear. A sealed modular wiring harness with lifetime LED lights is included for long-lasting trouble-free lighting. A heavy duty 12,000 lb. drop foot jack, stake pockets with rub rail, treated flooring, tool tray with lockable lid, and an adjustable 2 5/16" coupler complete the package deal on our Deluxe 17000 GVWR Flatbed Gooseneck Trailer. Kaufman Trailers expert customer service team can help with all your trailer needs.
A very popular option is our SUPER DUTY axle/tire upgrade. This includes general duty 8,000 lb. axles and load range H 17.5" tires on heavy duty wheels. The 8,000 lb. axles feature thicker, high tensile axle beam, larger bearings, and 5/8" studs.

7 Available Lengths

$9,490.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	17,000 lb. 3,000 lb. hitch load
Tie Downs:	Stake pockets and Rubrail
Electrical:	Sealed modular wiring harness with LED lights
Deck Length:	24 ft. (20 ft. flat + 4 ft. dovetail)
Frame:	10 in. I-beam, with 3 in. channel crossmembers 18 in. oncenter
Deck Height:	35 in. With side steps standard
Dovetail:	4 ft. Wood Dove
Deck Width:	Maximum 102 in.
Side Rail:	6 in.
Brakes:	All wheel electric brakes
Tongue:	10 in. I-beam gooseneck
Wheels:	Silver or white mod (Based on stock)
Tires:	235/80 R16 LRE (3,520 lb)
Jack:	Single 12,000 lb. drop foot jack
Floors:	2 in. Treated Wood
Axles:	2-7,000 lb. e-z lube axles
Coupler:	2-5/16 in. Adjustable ball coupler
Suspension:	Slipper springs
Safety Chains:	Heavy duty safety chains
Toolbox:	Chain box with lockable lid standard
Ramps:	60 in. x 18 in. Flip up ramps, with spring assist. 4 in. channel ramp runners with 2x2x3/16ths cleats.
Finish:	Primed, 2 coats of automotive grade enamel

Option	Price	Image
Spare tire and rim	$230.00
Full Width MEGA RAMPS with spring assist in both directions (includes 5' cleated dovetail in place of 4' wood dovetail)	$1,600.00
Spare tire and rim (17.5 upgrade)	$400.00
4ft. Self cleaning cleated dovetail	$300.00
Load Range G (14 ply rating) all-steel radials	$500.00
6ft. Self cleaning cleated dovetail (required if ordered with 6ft. lay flat ramps)	$450.00
Load Range G (14 ply rating) all-steel radial - spare tire	$300.00
Pop-up cleated dovetail	$400.00
Kingpin coupler	$100.00
Slide-in ramp for tri-axle tractor	$200.00
Dual 12K jacks	$140.00
Third swing up ramp	$200.00
Dual 12K two speed jacks	$290.00
2 - 72" Wedge shaped, lay-flat spring assist ramps (Flat length of trailer is shortened by 2ft. to make 6ft. dovetail)	$400.00
No dovetail and no ramps (Straight deck) *Special deposit required	$-99.00
3 - 72" Wedge shaped, lay-flat spring assist ramps (Flat length of trailer is shortened by 2ft. to make 6ft. dovetail)	$700.00
Sliding track for ratchets (per foot)	$30.00
2 72" Wedge shaped, lay-flat spring assist ramps WITH cleated center popup (Flat length of trailer is shortened by 2ft. to make 6ft. dovetail)	$700.00
9K Winch	$1,250.00
6 ft. x 8 ft. deck on the neck	$600.00
Fork holders (requires measurement information)	$200.00
Torque tube - recommended with extra length or deck on neck	$100.00
Sliding 4 in. ratchets (each) - requires sliding track	$30.00
5 ft. Heavy duty spring assist split gate (Capacity 13,000 lb. piece of equipment)	$700.00
6' Dovetail with 8' aluminum slide in ramps (6' Dovetail reduces flat length by 2')	$1,000.00
Capacity upgrade with 8,000 lb. general duty axles, and 215/75 R17.5 tires	$1,000.00
Ridged Metal Traction Dovetail (2 - 22" x 48" HD ridged mesh inserts in dovetail)	$200.00

Product Number	Length	Price	Additional Info
FG-7K-24D	24 ft.	$9,490.00	Tongue: 10 in. I-beam Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 18 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
FG-7K-26D	26 ft.	$9,890.00	Tongue: 10 in. I-beam Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 18 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
FG-7K-28D	28 ft.	$10,290.00	Tongue: 10 in. I-beam Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 18 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
FG-7K-30D	30 ft.	$11,290.00	Tongue: 10 in. I-beam with 12" uprights. Frame: 12 in. I-beam @ 16 PPF Crosspiece: 3 in. Channel Centers: 18 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
FG-7K-32D	32 ft.	$11,890.00	Tongue: 10 in. I-beam with 12" uprights. Frame: 12 in. I-beam @ 16 PPF with Torque Tube. Crosspiece: 3 in. Channel Centers: 18 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
FG-7K-36D	36 ft.	$12,390.00	Tongue: 10 in. I-beam with 12" uprights. Frame: 12 in. I-beam @ 16 PPF with Torque Tube. Crosspiece: 3 in. Channel Centers: 18 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
FG-8K-40D - MUST GET 8K UPGRADE	40 ft.	$13,890.00	Tongue: 10 in. I-beam with 12" uprights. Frame: 12 in. I-beam @ 16 PPF with Torque Tube. Crosspiece: 3 in. Channel Centers: 18 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel
