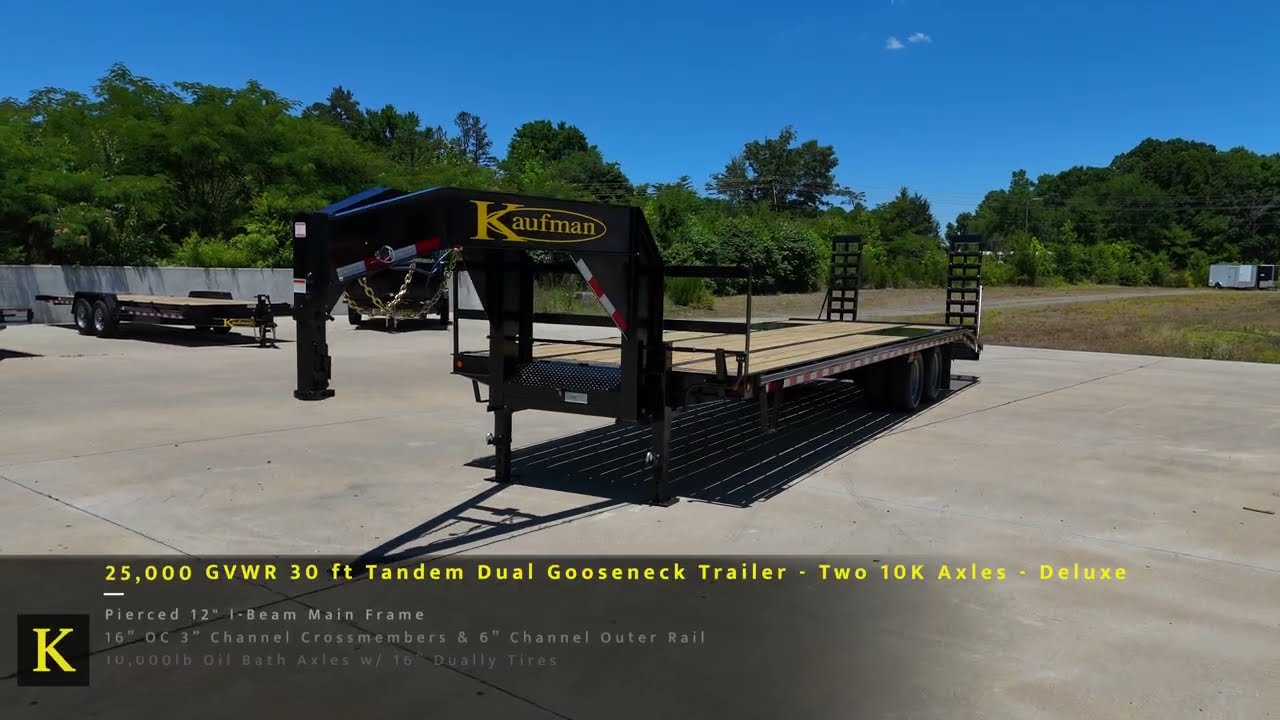

Deluxe 25000 GVWR 30 ft Tandem Dual Gooseneck Trailer - Two 10K

Kaufman Trailer's Deluxe 25000 GVWR 30 ft Tandem Dual Gooseneck Trailer is our most popular heavy duty gooseneck model! It has many of our best features included as standard and is a great value for the commercial user who wants a long life trailer. Construction starts with one piece 12" at 16 lb./ft. high tensile main beams. We use pierced crossmember construction on 16" centers. There is 25' of flatbed with a 5' cleated iron dovetail and 5' cleated spring assist ramps for easy loading of equipment. A popular option is the Monster Ramp lay-flat ramps/dovetail.

30' is the standard length with a 12"x16 lb. I-beam frame. 35' and 40' are optional lengths and the frame upgrades to 12"x19 lb. The 10K dual wheel electric brake axles feature heavy duty slipper spring suspension, oil bath lubrication, and radial tires. Wiring on the Deluxe 25000 GVWR 30 ft Tandem Dual Gooseneck Trailer is a sealed modular harness with lifetime LED lights. You can kiss lighting problems goodbye! Dual heavy duty 12K drop foot jacks, a tool tray with lockable lid, stake pockets with rub rail, treated flooring, and an adjustable 2 5/16" gooseneck coupler complete the standard features on this Deluxe 25000 GVWR 30 ft Tandem Dual Gooseneck Trailer .

4 Available Lengths

$14,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	25,000 lb. Load capacity is 19,000 lb. with a 6,000 lb. hitch load.
Tie Downs:	Stake pockets and Rubrail
Electrical:	Sealed modular wiring harness with LED lights
Deck Length:	30 ft. (25 ft. flat + 5 ft. dovetail)
Frame:	12 in. Pierced i-beam, with 3 in. channel crossmembers 16 in. on center
Deck Height:	37 in. With side steps standard
Dovetail:	5 ft. Self-cleaning cleated angle iron
Deck Width:	Maximum 102 in.
Side Rail:	6 in. Channel
Brakes:	All wheel electric brakes
Tongue:	12 in. I-beam gooseneck
Wheels:	Heavy duty bud style dual wheels
Tires:	235/80 R16 LRE (3,097 lb.)
Jack:	Dual 12,000 lb. drop foot jacks
Floors:	2 in. Treated Wood
Axles:	2-10,000 lb. oil bath axles
Coupler:	2-5/16 in. 25,000 GVWR adjustable ball coupler or SAE 2 in. kingpin
Suspension:	Slipper springs
Safety Chains:	Heavy duty safety chains
Toolbox:	Chain box with lockable lid standard
Ramps:	60 in. x 18 in. Heavy duty flip up ramps, with spring assist
Finish:	Primed, 2 coats of automotive grade enamel, pin striped

Option	Price	Image
Spare tire and rim	$260.00
Pop-up cleated dovetail (3 piece)	$500.00
9K Winch	$1,250.00
Slide-in ramp for tri-axle tractor	$200.00
6 ft. x 8 ft. Deck on neck	$600.00
Third swing up ramp	$200.00
Torque tube - recommended for deck on neck	$100.00
Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron)	$3,400.00
Fork holders (requires measurement information)	$200.00
Sliding 4 in. ratchets (each) - requires sliding track	$30.00
Load Range G (14 ply rating) all-steel radials	$1,000.00
Sliding track for ratchets (per foot)	$30.00
No dovetail and no ramps (Straight deck) *Special deposit required	$-99.00
Two speed 12K jacks	$150.00
Full Width MEGA RAMPS with spring assist in both directions	$1,600.00
Kingpin coupler	$100.00
Load Range G (14 ply rating) all-steel radial - spare tire	$330.00

Product Number	Length	Price	Additional Info
FHGP-10K-25D	25 ft.	$14,490.00	Frame: W12x16 PPF I-beam Neck Uprights: W14x22 PPF I-beam Neck: W12x16 PPF I-beam Crosspiece: 3 in. Channel Centers: 16 in. Pierced Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel
FHGP-10K-30D	30 ft.	$14,990.00	Frame: W12x16 PPF I-beam Neck Uprights: W14x22 PPF I-beam Neck: W12x16 PPF I-beam Crosspiece: 3 in. Channel Centers: 16 in. Pierced Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel
FHGP-10K-35D	35 ft.	$15,990.00	Frame: W12x19 PPF I-beam - with Torque Tube Neck Uprights: W14x22 PPF I-beam Neck: W12x16 PPF I-beam Crosspiece: 3 in. Channel Centers: 16 in. Pierced Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel
FHGP-10K-40D	40 ft.	$16,990.00	Frame: W12x19 PPF I-beam - with Torque Tube Neck Uprights: W14x22 PPF I-beam Neck: W12x16 PPF I-beam Crosspiece: 3 in. Channel Centers: 16 in. Pierced Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel
