Deluxe 38000 GVWR 30 ft Tandem Dual Gooseneck Trailer - Two 15K

Price Shown Does Not Include FET

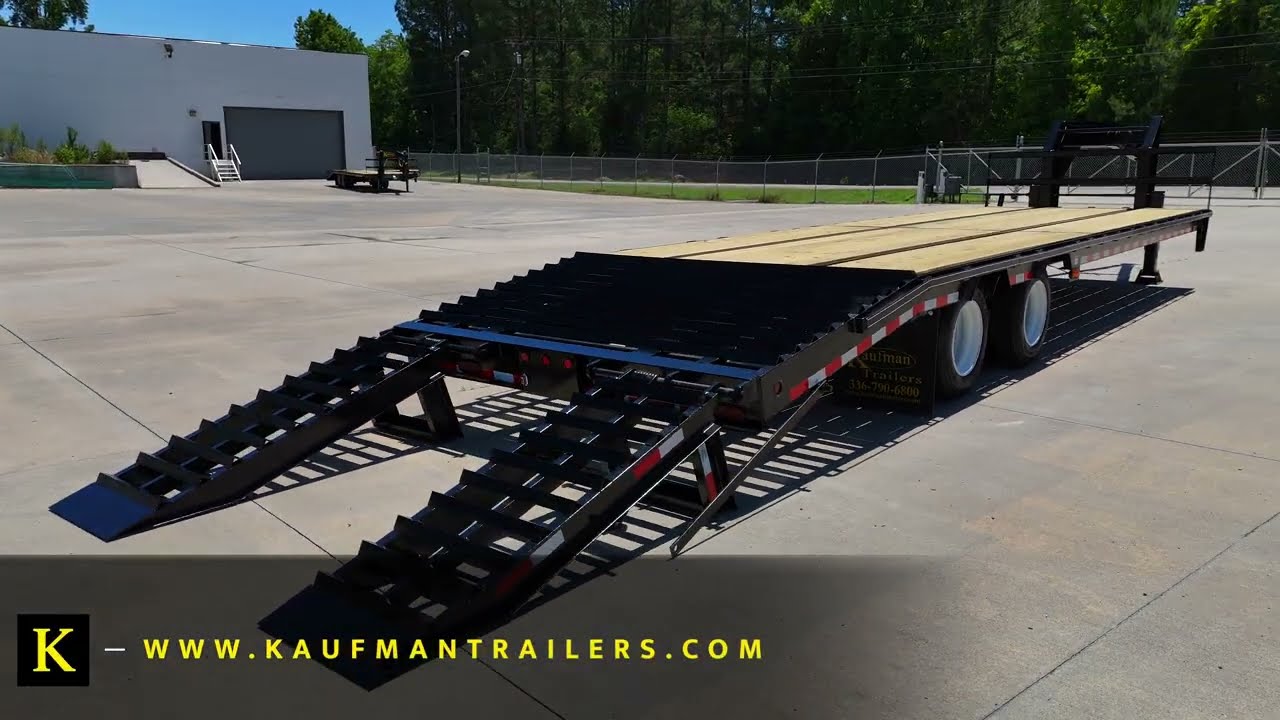

Kaufman Trailer's Deluxe 38000 GVWR Tandem Dual Gooseneck Trailer is available in 30', 35', and 40' lengths. This is the heaviest electric brake trailer we offer. The main frame is 14" beams at 22 PPF on the 30' length, stepping up to 26 PPF on the 35' and 40' lengths. Crossmembers are 4" channel pierced on 16" centers and heavy duty 8" channel outer rails. We use a Hutchens heavy duty slipper spring suspension. The 17.5 LRH tires are on heavy duty hub piloted wheels. There is 25' of flatbed with a 5' cleated iron dovetail. Ramps are 66 in. long x 23 in. wide heavy duty cleated flip up with spring assist. They are built with 6 in. channel ramp runners. Wiring on the Deluxe 38000 GVWR Tandem Dual Gooseneck Trailer is a sealed modular harness with lifetime LED lights. Jacks are dual speed heavy duty 25K capacity, just like are used on semi trailers. A tool tray with lockable lid, stake pockets with rub rail, and treated flooring complete the standard features.

3 Available Lengths

$21,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	38,000 lb. Load capacity is 30,000 lb. with a 8,000 lb. hitch load.
Tie Downs:	Stake pockets and Rubrail
Electrical:	Sealed modular wiring harness with LED lights
Deck Length:	30 ft. (25 ft. flat + 5 ft. dovetail)
Frame:	14 in. Pierced i-beam on 30' - 22 PPF. 26 PPF on 35' and 40'. 4 in. channel crossmembers 16 in. on center
Deck Height:	37 in. With side steps standard
Dovetail:	5 ft. 6 in. Self-cleaning cleated angle iron - 6 in. channel ramp runners
Deck Width:	Maximum 102 in.
Side Rail:	8 in. Channel
Brakes:	All wheel electric brakes
Tongue:	12x19 PPF I-beam gooseneck with 14x26 PPF uprights
Wheels:	Heavy duty bud style dual wheels
Tires:	215/75R 17.5 LRH - 4540 lb. capacity per tire
Jack:	Dual 25,000 lb. two speed jacks
Floors:	2 in. Treated Wood
Axles:	2- 15,000 lb. Oil bath Dexter axles
Coupler:	3 in. 40,000 GVWR adjustable ball coupler or SAE 2 in. kingpin
Suspension:	Hutchens style heavy duty adjustable suspension with three leaf 20,000 lb. capacity springs - 48 in. spacing
Safety Chains:	Heavy duty safety chains
Toolbox:	Chain box with lockable lid standard
Ramps:	66 in. x 23 in. Heavy duty cleated flip up ramps, with spring assist - built with 6 in. channel ramp runners
Finish:	Primed, 2 coats of automotive grade enamel, pin striped

Option	Price	Image
Spare tire and rim	$400.00
No dovetail and no ramps (Straight deck) *Special deposit required	$-99.00
9K Winch	$1,250.00
Full Width MEGA RAMPS with spring assist in both directions	$1,600.00
6 ft. x 8 ft. Deck on neck	$600.00
Sliding track for ratchets (per foot)	$30.00
Torque tube - required for deck on neck	$100.00
Pop-up cleated dovetail (3 piece)	$500.00
Fork holders (requires measurement information)	$200.00
Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron)	$3,400.00
Sliding 4 in. ratchets (each) - requires sliding track	$30.00

Product Number	Length	Price	Additional Info
FHGP-15K-30D-FET	30 ft.	$21,990.00	Frame: W14x22 PPF I-beam Neck Uprights: W14x26 PPF I-beam Neck: W12x19 PPF I-beam Crosspiece: 4 in. Channel Centers: 16 in. Pierced Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FHGP-15K-35D-FET	35 ft.	$22,990.00	Frame: W14x26 PPF I-beam - with Torque Tube Neck Uprights: W14x26 PPF I-beam Neck: W12x19 PPF I-beam Crosspiece: 4 in. Channel Centers: 16 in. Pierced Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FHGP-15K-40D-FET	40 ft.	$23,990.00	Frame: W14x26 PPF I-beam - with Torque Tube Neck Uprights: W14x26 PPF I-beam Neck: W12x19 PPF I-beam Crosspiece: 4 in. Channel Centers: 16 in. Pierced Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
