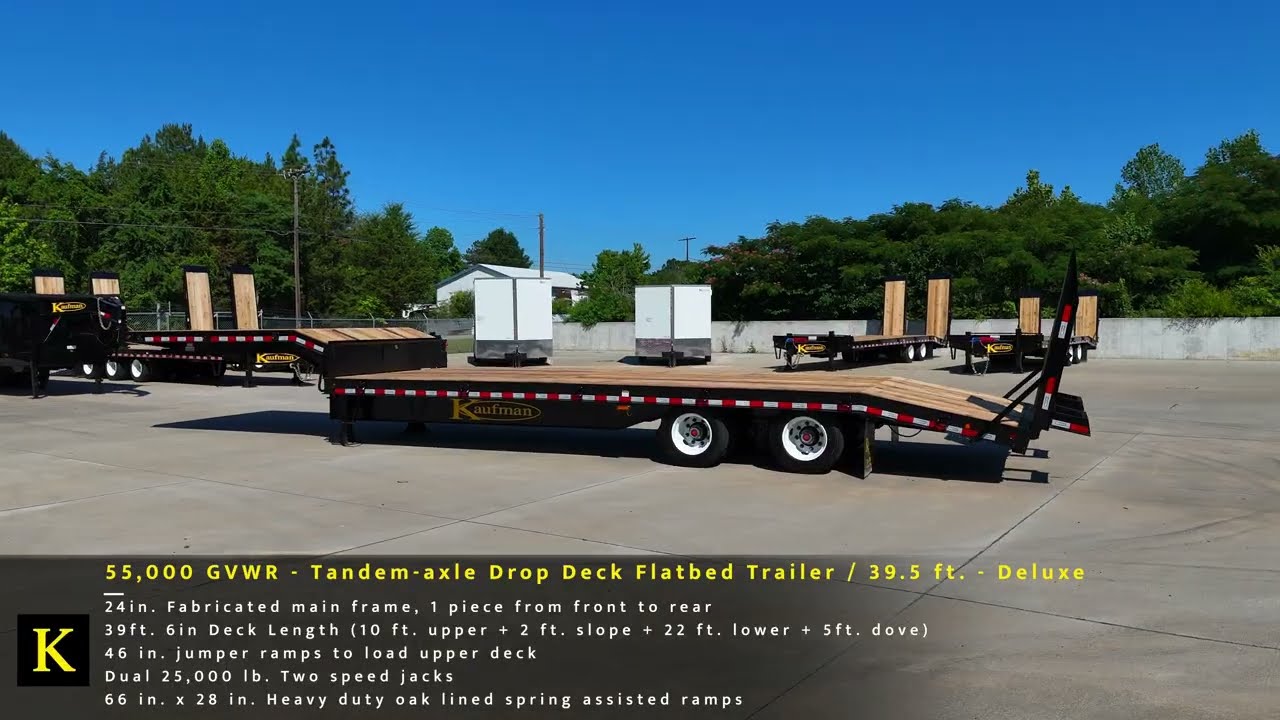

Deluxe Drop Deck Flatbed Trailer - 55,000 GVWR / 39.5 ft.

Price Shown Does Not Include FET

The 55,000 GVWR – 39.5' Drop Deck Flatbed Trailer – Deluxe is engineered for maximum strength, durability, and performance in demanding hauling applications. Built with full-length fabricated main beams made from 80,000 PSI high-tensile steel, this 55,000 lb. GVWR trailer delivers an impressive 44,000 lb. evenly distributed payload capacity and up to 40,000 lbs. in concentrated loads.
Its cambered 24-inch beams and pierced crossmember construction provide superior structural integrity, while the 39-inch loaded deck height and 102-inch width offer ample space and versatility for transporting heavy equipment.
Outfitted with premium components including oil bath axles, Hutchens slipper suspension, all-wheel air brakes with ABS, and a Sealco modular wiring harness with lifetime LED lighting, this trailer is built for reliability on every job.
With oak decking, spring-assisted heavy-duty ramps, and available hydraulic ramp upgrades, the Deluxe Drop Deck Flatbed Trailer stands out as a top-tier solution—ideal for contractors and operators who demand long-lasting performance and efficiency.

4 Available Lengths

$25,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	55,000 lb. - 11,000 lb. approx. empty wt., Capacity 44,000 lb. evenly distributed over full length of trailer. Concentrated load capacity is 40,000 lbs. in 12ft. of bed length.
Deck Length:	39ft. 6in. (10 ft. upper, 2 ft. slope, 22 ft. lower, 5ft. dove)
Electrical:	DOT approved lighting, US made sealed wiring harness, LED lights
Deck Height:	39 in. (loaded) - with side steps standard
Frame:	24 in. Fabricated main beam. Cambered, High Tensile, 1 piece from front to rear of trailer
Deck Width:	Maximum 102 in.
Dovetail:	5 ft. Wood
Lower Deck:	22 ft. Oak deck
Upper Deck:	10 ft. Oak deck, with 2 ft. Oak slope, and 46 in. jumper ramps stored under slope.
Brakes:	All wheel air brake with spring lock each wheel (ABS)
Side Rail:	8 in. Channel
Wheels:	Heavy duty dual 17.5 in. wheels
Tires:	215/75 R17.5 LRH (4,540 lb.)
Jack:	2 - 25,000 lb. Dual speed jacks
Floors:	Oak
Axles:	2-22,500 Fleetcraft or Power Products oil bath axles
Coupler:	SAE Kingpin hitch
Suspension:	Hutchens slipper
Ramps:	66 in. x 28 in. Heavy duty oak lined, swing-up 6 in. channel ramps with spring assist
Finish:	Primed, 2 coats of automotive grade enamel
Tie Downs:	D-rings

Option	Price	Image
Spare tire and rim	$400.00
72 in. x 28 in. Heavy duty cleated ramps with spring assist (upgrades to 8" channel ramp runners)	$500.00
5 ft. Self-cleaning Dovetail	$500.00
60 in. Wood-lined, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment.-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment.	$500.00
66 in. x 28 in. self cleaning cleated iron ramps (6 in. channel ramp runners)	$300.00
Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron - additional cost) Specify to your Sales Rep 5' OR 6' dovetail. 6' dovetail recommended for paving equipment	$3,400.00
72 in. x 28 in. Heavy duty wood lined ramps with spring assist (upgrades to 8" channel ramp runners)	$300.00
60 in. Cleated, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment.	$500.00

Product Number	Length	Price	Additional Info
FAD-22.5K-39.5FabD	39.5 ft.	$25,990.00	Frame: 24in. Fabricated main beam Crosspiece: 4 in. Channel, pierced Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FAD-22.5K-43.5FabD	43.5 ft.	$26,990.00	Frame: 24in. Fabricated main beam Crosspiece: 4 in. Channel, pierced Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FAD-22.5K-47.5FabD	47.5 ft.	$27,990.00	Frame: 24in. Fabricated main beam Crosspiece: 4 in. Channel, pierced Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
FAD-22.5K-51.5FabD	51.5 ft.	$28,990.00	Frame: 24in. Fabricated main beam Crosspiece: 4 in. Channel, pierced Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel
