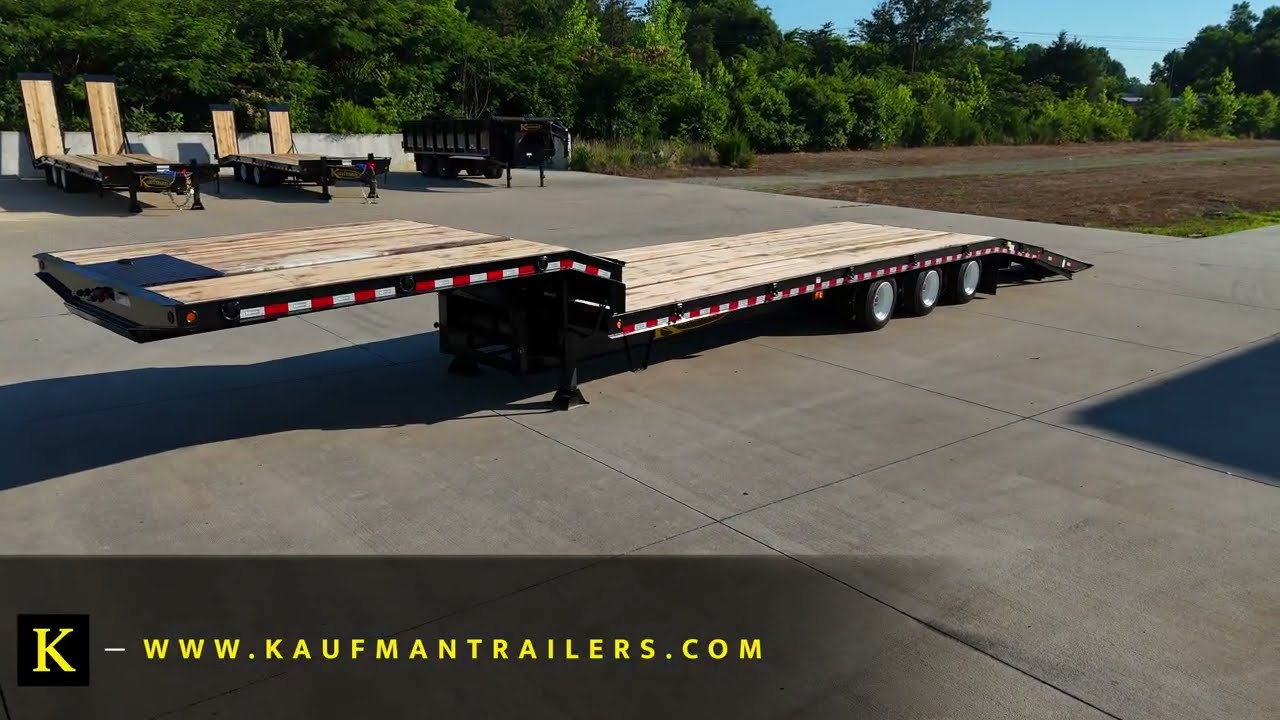

Tri-axle Drop Deck Flatbed Trailer - 70,000 GVWR / 43.5 ft. - DELUXE

Price Shown Does Not Include FET

Kaufman Trailer's Tri-Axle Drop Deck Flatbed Trailer is built with full length fabricated beam frames. These cambered main frame beams are 24 in. deep in the main body and are manufactured with 80,000 psi high-tensile steel. Fleetcraft or Power Products 22,500 lb. airbrake oil bath axles ride on a Hutchens slipper spring suspension. A Haldex ABS braking system, spring brakes on all axles, and oak flooring are included. A US made Sealco wiring harness with lifetime LED lights are added features. This top quality drop deck flatbed trailer is a true industry leader and is built to last! Optional hydraulic ramps make this tri-axle drop deck flatbed trailer ideal for paving equipment.

3 Available Lengths

$30,990.00

*Cash Price Listed. 3% processing fee added for payments not made by cash, wire, or cashier’s check.

See Lengths & Prices

866.455.7444

Download Brochure Kaufman Trailer Parts

G.V.W.R.:	70,000 lb. - 14,000 lb. approx. empty wt., Capacity is 56,000 lb. evenly distributed over the full length of the trailer. Concentrated load is 46,000 lb. in 12ft. of bed length.
Deck Length:	43ft. 6in (10 ft. upper + 2 ft. slope + 26 ft. lower + 5ft. dove)
Electrical:	DOT approved lighting, US made sealed wiring harness, LED lights
Deck Height:	39 in. (loaded) - with side steps standard
Frame:	24in.Fabricated main beam.Cambered, High Tensile,1 piece from front to rear of trailer
Deck Width:	Maximum 102 in.
Dovetail:	5 ft. Wood
Lower Deck:	26 ft. Oak deck
Upper Deck:	10 ft. Oak deck, with 2 ft. Oak slope, and 46 in. jumper ramps stored under slope.
Brakes:	All wheel air brake with spring lock each wheel (ABS)
Side Rail:	8 in. Channel
Wheels:	Heavy duty dual 17.5 in. wheels
Tires:	215/75 R17.5 LRH (4,540 lb.)
Jack:	2 - 25,000 lb. Dual speed jacks
Floors:	Full oak floor with 4 in. crossmembers, 16 in. oncenter
Axles:	3-22,500 Fleetcraft or Power Products oil bath axles
Coupler:	SAE Kingpin hitch
Suspension:	Hutchens slipper
Ramps:	72 in. x 28 in. Heavy duty oak lined, swing-up ramps with spring assist
Finish:	Primed, 2 coats of automotive grade enamel
Tie Downs:	D-rings

Option	Price	Image
Spare tire and rim	$400.00
72 in. x 28 in. Heavy duty cleated ramps with spring assist	$500.00
5 ft. Self-cleaning Dovetail	$500.00
60 in. Wood-lined, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment.	$500.00
Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron - additional cost) Specify to your Sales Rep 5' OR 6' dovetail. 6' dovetail recommended for paving equipment	$3,400.00
60 in. Cleated, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment.	$500.00

Product Number	Length	Price	Additional Info
FAD-3/22.5K-43.5FabD	42.5 ft.	$30,990.00	Frame: 24in. Fabricated main beam Crosspiece: 4 in. Channel, pierced Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 8 in. Channel
FAD-3/22.5K-47.5FabD	47.5 ft.	$31,990.00	Frame: 24in. Fabricated main beam Crosspiece: 4 in. Channel, pierced Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 8 in. Channel
FAD-3/22.5K-51.5FabD	51.5 ft.	$32,990.00	Frame: 24in. Fabricated main beam Crosspiece: 4 in. Channel, pierced Centers: 16 in. Side Rail: 8 in. Channel Ramp Runners: 8 in. Channel
