Kaufman Trailers

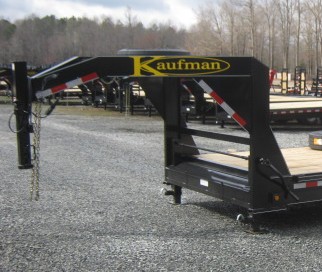

Deluxe 15000 GVWR Equipment Gooseneck Trailer – 20 ft.
$7,490.00 Factory Direct
Kaufman Trailer’s Deluxe 15000 GVWR Equipment Gooseneck Trailer is built with 6 in. channel main frame with 6 in. channel doubler from axles forward, and 8 in. channel uprights and neck. The 3 in. channel cross members are on 16 in. centers for more support under the floor. A treated wood floor is standard. An adjustable coupler, heavy duty 12,000 lb. drop foot jack, heavy duty diamond plate fenders, and tool box with a lockable lid are included. We add a rub rail on the stake pockets. The running gear is two 7,000 lb. axles with heavy duty slipper spring suspension and radial tires. The dovetail and swing up loading ramps make loading your equipment safe and easy. This model has beefed up ramps built with 4 in. channel ramp frame runners. The floor is even with the top of the frame for simple side loading of palletized materials. Sealed beam rubber mount LED lights round out this great value package. Diamond floor option is available on this Deluxe 15000 GVWR Equipment Gooseneck Trailer.
VIEW OUR ENTIRE LINE OF GOOSENECK TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications| G.V.W.R. | 15,000 lb. |
| Electrical | Sealed modular wiring harness with LED lights |
| Frame | 6 in. Channel, with 3 in. channel cross members |
| Dovetail | 2 ft. Dove |
| Upper Deck | N/A |
| Side Rail | N/A |
| Tongue | 8 in. Channel gooseneck |
| Tires | 235/80 R16 LRE (3,520 lb.) |
| Floors | 2 in. Treated Wood |
| Coupler | 2-5/16 in. Adjustable gooseneck coupler |
| Safety Chains | Heavy duty safety chains |
| Ramps | 60 in. x 20 in. heavy duty flip up ramps - 4 in. channel ramp runners with 2x2x1/4 cleats. |
| Tie Downs | Stake pockets and Rubrail |
| Deck Length | 20 ft. (18 ft. flat + 2 ft. dovetail) |
| Deck Height | 26 in. |
| Deck Width | 82 in. Between fenders |
| Fenders | Diamond plate fenders |
| Lower Deck | N/A |
| Brakes | All wheel electric brakes |
| Tailgate | N/A |
| Wheels | Silver or white mod (Based on stock) |
| Jack | 12,000 lb. Drop foot jack |
| Axles | 2-7,000 lb. e-z lube axles |
| Suspension | Slipper springs |
| Toolbox | Chain box with lockable lid |
| Finish | Primed, 2 coats of automotive grade enamel, pin striped |
| Spare tire and rim | $230.00 |
| Load Range G (14 ply rating) all-steel radials | $500.00 |
| Load Range G (14 ply rating) all-steel radial - spare tire | $300.00 |
| Diamond plate floor, (with 3 in. channel crossmembers 16 in. on center) | $1000.00 |
| Dual jacks | $140.00 |
| Fork holders (requires measurement information) | $200.00 |
| 5 ft. Heavy duty spring assist split gate (Capacity 13,000 lb. piece of equipment) | $600.00 |
| No dovetail (Straight deck) | $0.00 |
| No ramps (Straight deck) *Special deposit required | $-50.00 |
| Kingpin hitch | $100.00 |
| 6K Winch | $950.00 |
| 9K Winch | $1,250.00 |
| 20,000 GVWR Heavy Duty Package - Includes 3/7,000 lb. axles, standard 6 in. channel frame with 5 in. channel frame doubler, 16 in. on center crossmembers, and heavy duty spring assist ramps (***Premium tire upgrade for this option requires special quote***) | $1,800.00 |
| Product Number | Length | Price | Additional Info |
|---|---|---|---|
| FDWG-7K-20D | 20 ft. | $7,490.00 | Tongue: 8 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. |
| FDWG-7K-22D | 22 ft. | $7,690.00 | Tongue: 8 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. |
| FDWG-7K-24D | 24 ft. | $7,890.00 | Tongue: 8 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. |
| FDWG-7K-26D | 26 ft. | $8,190.00 | Tongue: 8 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. |
| FDWG-7K-28D | 28 ft. | $8,390.00 | Tongue: 8 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. |
