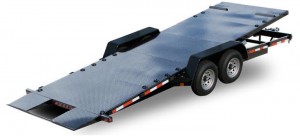

Diamond Floor Tilt Car Trailer
$8,090.00 Factory Direct

Our 15,000 GVWR diamond floor tilt car trailers are manufactured with a 6″ channel frame and tongue, and 6×2 heavy wall tubing on the full length tilting bed, with 3″ channel cross members on 16″ centers. The entire bed tilts for loading and is built with all tubing steel perimeter frame construction. 24″ toe plates and the gradual loading angle, made possible by a total bed length (including toe plates) of 24′, make it possible to load vehicles or equipment with low clearance that will not load on standard ramp and dovetail trailers. A hydraulic damper cushions the lowering of the bed during loading. There is a convenient one-handle latch system to secure the bed in the towing position once loading is complete. This diamond floor tilting bed car trailer also includes a 12k drop foot jack, diamond plate fenders, four-wheel brakes, radial tires, stake pockets with rub rail, and a sealed modular wiring harness with lifetime LED lights.

Due to its heavy duty running gear, this model does not ride as smoothly as lighter GVWR models when hauling cars.

VIEW OUR ENTIRE LINE OF CAR TRAILERS

CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444

Specifications
G.V.W.R.15,000 lb.
ElectricalSealed modular wiring harness with LED lights
Frame6 in. channel, and 6 in. x 2 in. heavy wall tubing
Dovetail24 in. toeplates
Upper DeckN/A
Side RailN/A
Tongue6 in. channel
Tires235/80 R16 LRE (3,520 lb.)
FloorsFull diamond plate with 3 in. channel crossmembers 16 in. on center
CouplerHD cast adjustable ball coupler or pintle ring
Safety ChainsHeavy duty safety chains
RampsN/A
Tie DownsStake pockets and Rubrail
Deck Length22 ft. + 24 in. toeplates (with hydraulic damper cylinder)
Deck HeightN/A
Deck Width82 in. Between fenders
FendersHeavy duty diamond plate fenders
Lower DeckN/A
BrakesBoth braking axles
TailgateN/A
WheelsSilver or white mod (Based on stock)
Jack12,000 lb. Drop foot jack
Axles2-7,000 lb. e-z lube axles
SuspensionSlipper springs
ToolboxChain box with lockable lid standard
FinishPrimed, 2 coats of automotive grade enamel
Additional Options
Spare tire and rim$230.00
6K Winch$950.00
Gooseneck$1000.00
Load Range G (14 ply rating) all-steel radials$500.00
Load Range G (14 ply rating) all-steel radial - spare tire$300.00
