$16,890.00 Factory Direct
Trailer Description

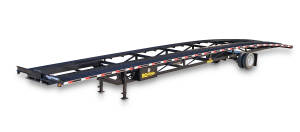

Our low profile tandem dual axle Wedge 3-car trailer is custom built to fit your trucks hitch height. This one 12K electric over hydraulic disc brake axle trailer is built to give you the most advantage on toll roads that charge per axle. This trailer is available only in Low-Profile configuration for chassis cabs. It includes 12 over the wheel tie-downs and ratchets in the toolbox and standard spare tire. It is constructed with a lightweight, hi-tensile tubing frame. Heavy gauge ridged mesh runners reduce weight and wind drag, while giving great loading traction in inclement weather. Tying down your load is quick and easy with the over the wheel tire tie-down ratchets and wheel straps that are included. The single 12K axle comes with 215/75R 17.5 Load Range H tires – spare is included.
Deluxe Package – includes 8′ aluminum ramps, USA made wiring harness with all copper wiring, lifetime LED lights – Special Package Pricing – See Options
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications | G.V.W.R. | 12,000 lb. to 15,000 lb. (customer specified) |
| Electrical | DOT approved lights, wiring, and connectors |
| Frame | 4 in. x 3 in. tubular steel |
| Dovetail | N/A |
| Upper Deck | N/A |
| Side Rail | 3 in. x 3 in. x 3/16 in. angle |
| Tongue | 6 in. x 3 in. tubular steel |
| Tires | 215/75 R17.5 LRH (4,850 lb.) |
| Floors | 23 in. Ridged mesh runners with 44 in. open center between runners |
| Coupler | SAE 2 in. kingpin only |
| Safety Chains | N/A |
| Ramps | 72 in. x 14-3/4 in. Slide in ramps, with 2 in. x 2 in. x 3/8 in. runners |
| Tie Downs | 12 Wheel straps with ratchets |
| Deck Length | 50 ft. (Slope behind axles) |
| Deck Height | |
| Deck Width | 90 in. |
| Fenders | N/A |
| Lower Deck | N/A |
| Brakes | Electric over hydraulic DISC brakes |
| Tailgate | N/A |
| Wheels | Silver or white mod (Based on stock) |
| Jack | Dual 12,000 lb. drop foot jacks |
| Axles | 1-12,000 lb. Oil bath axles |
| Suspension | Slipper springs |
| Toolbox | 18 in. x 18 in. x 36 in. lockable toolbox |
| Finish | Primed, 2 coats of automotive grade enamel, pin striped |
| Extra toolbox | $500.00 | |
| 102 in. wide (32 in. ridged mesh runners, with 38 in. open center) | $500.00 | |
| Trailer hauling package (includes 102 in. wide, center rail with ball towers, and 9,000 lb. electric winch) | $2,900.00 | |
| Dual speed jacks | $150.00 | |
| 9,000 lb. electric winch | $1,250.00 | |
| Deluxe Package - Sealed wiring harness, lifetime LED lights, and 8 ft. aluminum ramps | $1,000.00 | |
