Kaufman Trailers

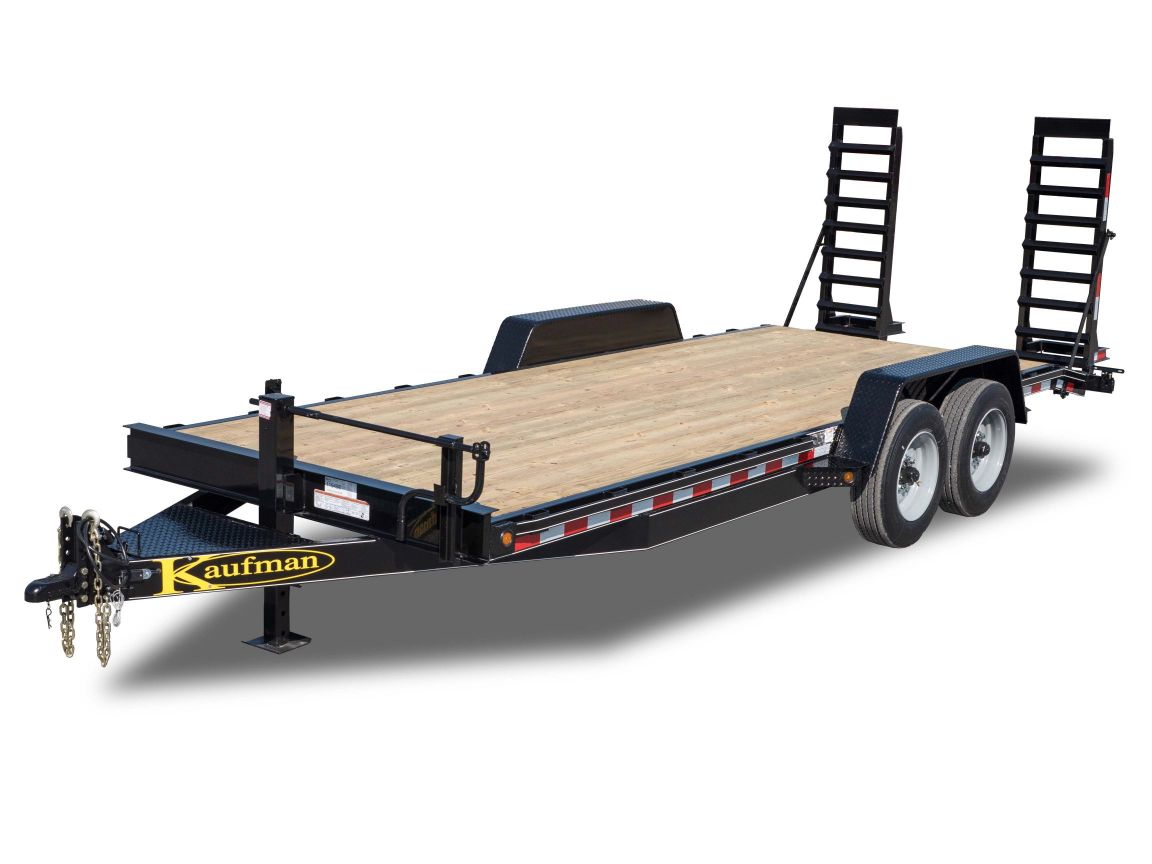

17000 GVWR Deluxe Wood Floor Equipment Trailer – 20 ft.
$7,790.00 Factory Direct
Our 17000 GVWR Deluxe Wood Floor Equipment Trailer is built with a 6 in. channel frame, 6″ channel full length wrap around tongue, a 12,000 lb. drop foot jack and a super duty 3-bolt cast iron adjustable coupler. 3 in. channel crossmembers are on 16 in. centers. The running gear upgrades to 8,000 lb. four wheel brake axles with heavy duty slipper spring suspension and 215/75 R17.5 load range H tires.
A tool box with a lockable lid, stake pockets with rub rail, and heavy gauge diamond plate fenders are all included. We beef up the ramps with 4 in. channel ramp runners and include spring assist. A dovetail helps make a gradual loading angle. A US made sealed modular wiring harness and lifetime LED lighting ensure trouble free lighting for years to come.
Contact our customer service team today to find out how easy it is to have a 17000 GVWR Deluxe Wood Floor Equipment Trailer delivered direct to your location.
-
- 8,000 lb. Axles With 215/17.5 LRH Tires On A Heavy Disc Wheel
VIEW OUR ENTIRE LINE OF EQUIPMENT TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications| G.V.W.R. | 17,000 GVWR |
| Electrical | Sealed modular wiring harness with LED lights |
| Frame | 6 in. Channel, with 3 in. channel cross members. 16 in. on center |
| Dovetail | 2 ft. |
| Upper Deck | N/A |
| Side Rail | N/A |
| Tongue | 6 in. Channel wrap around |
| Tires | 215/75 R17.5 |
| Floors | 2 in. Treated Wood |
| Coupler | Super duty cast iron 2 5/16 adjustable coupler |
| Safety Chains | Heavy duty safety chains |
| Ramps | 60 in. x 20 in. Flip up ramps. 4 in. channel ramp runners with 2x2x1/4 cleats. - with spring assist |
| Tie Downs | Stake pockets and Rubrail |
| Deck Length | 20 ft. (18 ft. flat + 2 ft. dovetail) |
| Deck Height | 26 in. |
| Deck Width | 82 in. Between fenders |
| Fenders | Diamond plate fenders |
| Lower Deck | N/A |
| Brakes | All wheel electric brakes |
| Tailgate | N/A |
| Wheels | Silver or white mod (Based on stock) |
| Jack | 12,000 lb. Drop foot jack |
| Axles | 2-8,000 lb. e-z lube axles |
| Suspension | Slipper springs |
| Toolbox | Chain box with lockable toolbox |
| Finish | Primed, 2 coats of automotive grade enamel, pin striped |
| Spare tire and rim (17.5) | $400.00 |
| Adjustable 2-5/16 in. ball and pintle ring | $80.00 |
| Fork holders (requires measurement information) | $200.00 |
| 5 ft. Heavy duty spring assist split gate (Capacity 12,500 lb. piece of equipment) | $600.00 |
| Product Number | Length | Price | Additional Info |
|---|---|---|---|
| FDW-8K-16D | 16 ft. | $7,770.00 | Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel |
| FDW-8K-18D | 18 ft. | $7,780.00 | Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel |
| FDW-8K-20D | 20 ft. | $7,790.00 | Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel |
| FDW-8K-22D | 22 ft. | $7,990.00 | Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel |
| FDW-8K-24D | 24 ft. | $8,190.00 | Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel |
| FDW-8K-26D | 26 ft. | $8,490.00 | Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel |
| FDW-8K-28D | 28 ft. | $8,690.00 | Tongue: 6 in. Channel Frame: 6 in. Channel with doubler Crosspiece: 3 in. Channel Centers: 16 in. Ramp Runners: 4 in. Channel |
