15000 GVWR Deluxe Wood Floor Tilt Equipment Trailer – 22 ft.
$7,190.00 Factory Direct
The 15000 GVWR Deluxe Wood Floor Tilt Equipment Trailer is fully equipped all our best features in a package deal. The frame is 6 in. channel with a 6 in. channel wrap around tongue. Running gear is 7,000 lb. 8 lug axles with 16 in. premium radial tires and heavy duty slipper spring suspension. The coupler is upgraded to a heavy duty cast iron unit. Other upgrades include 17 in. cross-member spacing, a toolbox with lockable lid, a rub rail on the stake pockets, and full reflective tape. A cold weather US made sealed modular wiring harness with lifetime LED lighting assures trouble-free lighting on every 15000 GVWR Deluxe Wood Floor Tilt Equipment Trailer.
-
- Rear View With Knife Edge Toe Plates
-

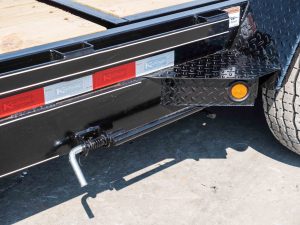

- One Handle Latch To Lock Down Or Release Tilt Bed With Spring Loaded Lock
-

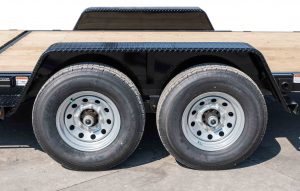

- 8 Lug 7K Axles – 235/80 R16 Premium West Lake LRE Tires – Slipper Spring Suspension
-

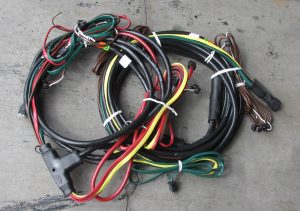

- US Made Sealco Harness. All Heavy Cable and Molded Connections. Ask Our Competitors To Show You THEIR Harness Before You Buy.
-

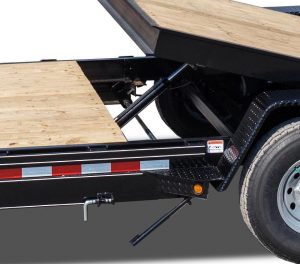

- Damper Cushion Cylinder For Controlled Lowering of Tilt Bed
-

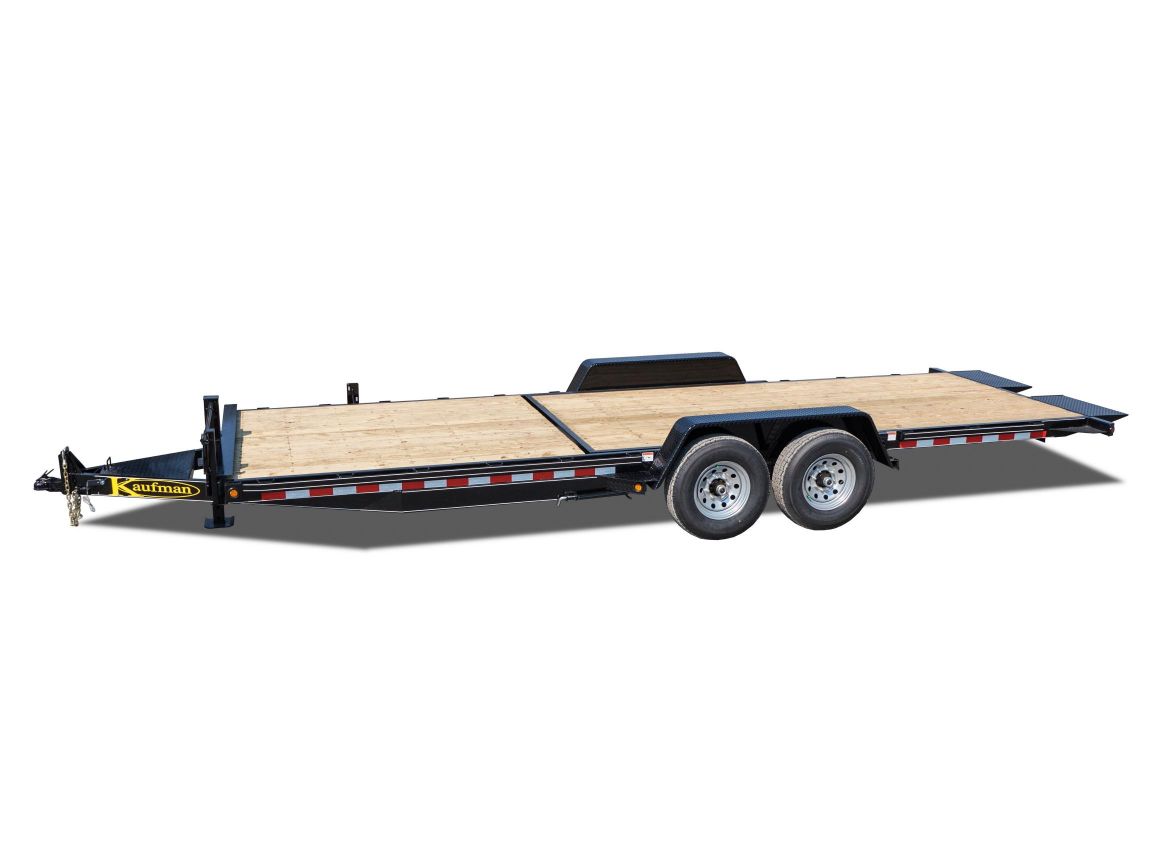

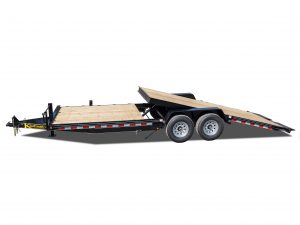

- Deluxe Tilt Equipment Trailer – Wood Floor – Click image to enlarge
VIEW OUR ENTIRE LINE OF EQUIPMENT TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications| G.V.W.R. | 15,000 lb. |
| Electrical | Sealed modular wiring harness with LED lights |
| Frame | 6 in. Channel, with 3 in. channel cross members on 17 in. centers |
| Dovetail | N/A |
| Upper Deck | N/A |
| Side Rail | N/A |
| Tongue | 6 in. Channel wrap around |
| Tires | 235/80 R16 LRE (3,520 lb.) |
| Floors | 2 in. Treated Wood |
| Coupler | 2-5/16 in. Adjustable ball coupler |
| Safety Chains | Heavy duty safety chains |
| Ramps | 29 in. Wide x 16 in. long beveled extensions |
| Tie Downs | Stake pockets and Rubrail |
| Deck Length | 22 ft. (8 ft. + 14 ft. 6 in. tilt deck with hydraulic cylinder) |
| Deck Height | 26 in. |
| Deck Width | 82 in. Between fenders |
| Fenders | Diamond plate fenders |
| Lower Deck | N/A |
| Brakes | All wheel electric brakes |
| Tailgate | N/A |
| Wheels | Silver or white mod (Based on stock) |
| Jack | 12,000 lb. Drop foot jack |
| Axles | 2-7,000 lb. e-z lube axles |
| Suspension | Slipper springs |

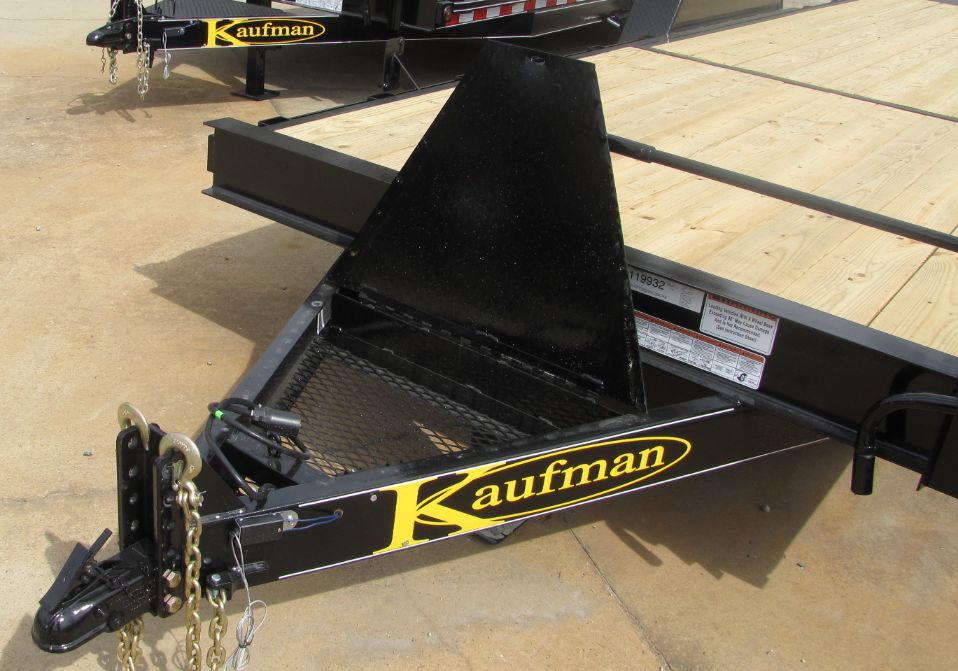

| Toolbox | Chain box with lockable lid standard |
| Finish | Primed, 2 coats of automotive grade enamel, pin striped |
| Spare tire and rim | $230.00 | |
| Load Range G (14 ply rating) all-steel radials | $500.00 | |
| Load Range G (14 ply rating) all-steel radial - spare tire | $300.00 |

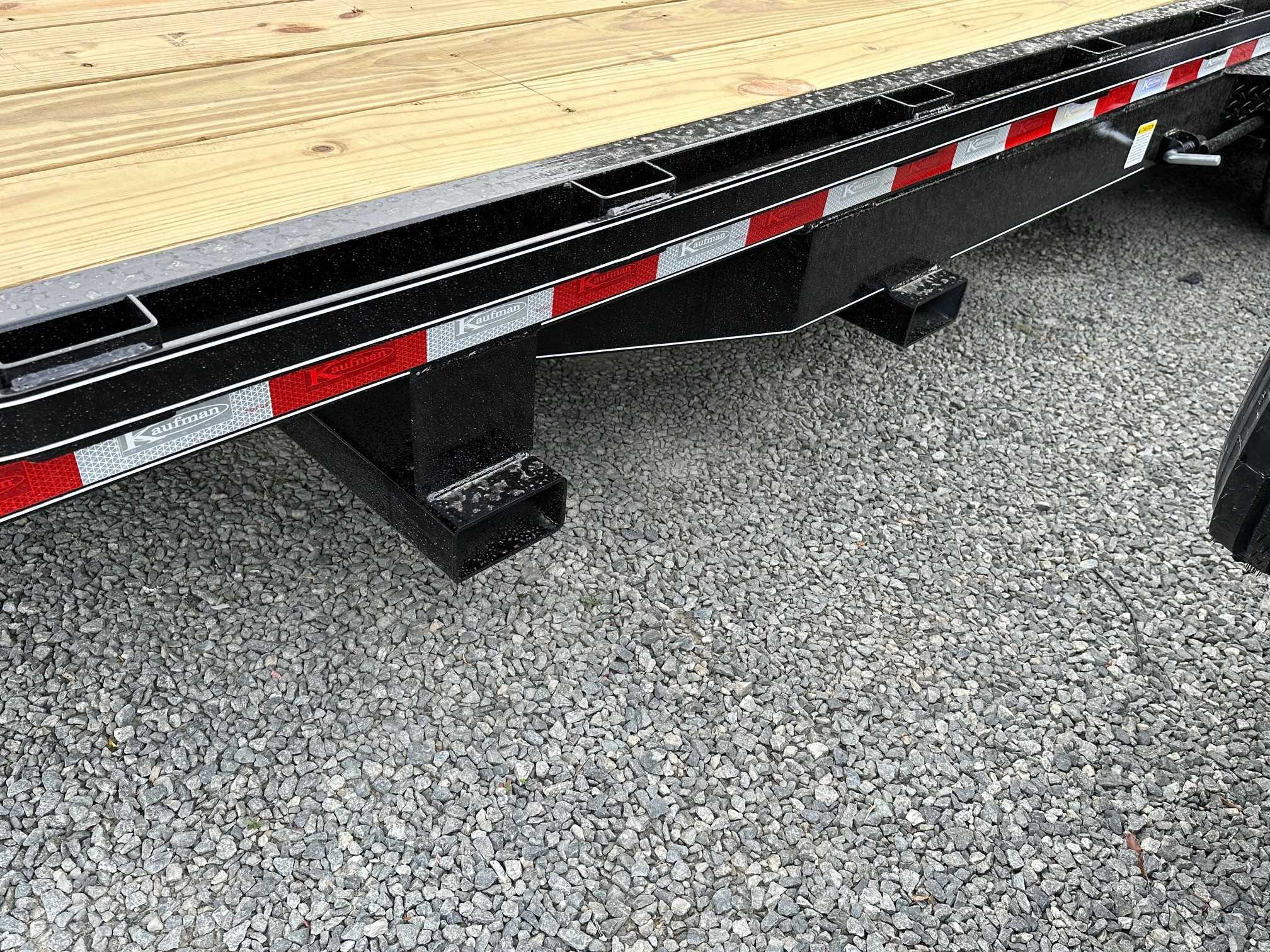

| Fork holders (requires measurement information) | $200.00 |  |
| Product Number | Length | Price | Additional Info |
|---|---|---|---|
| FDWT-7K-20D | 20 ft. | $7,180.00 | Tongue: 6 in. channel Frame: 6 in. channel Crosspiece: 3 in. channel Centers: 17 in. |
| FDWT-7K-22D | 22 ft. | $7,190.00 | Tongue: 6 in. channel Frame: 6 in. channel Crosspiece: 3 in. channel Centers: 17 in. |
