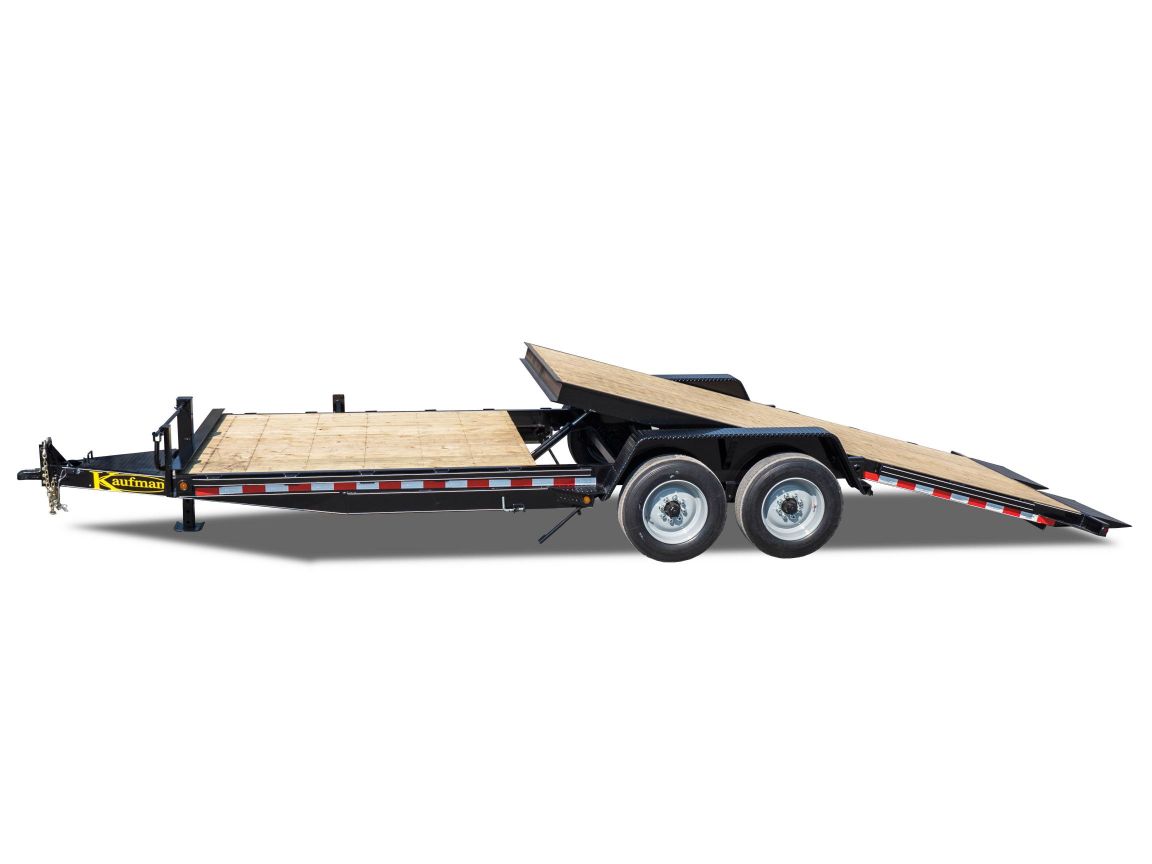

17000 GVWR Deluxe Wood Floor Tilt Equipment Trailer – 22 ft.
$8,590.00 Factory Direct
The 17000 GVWR Deluxe Wood Floor Tilt Equipment Trailer like all our other Deluxe models is fully equipped with all our best features. A heavy duty running gear package with heavier axles, tires, and a super duty cast iron coupler are the key features. The running gear features 8,000 lb. 8 lug axles with 17.5 in. heavy duty load range H radial tires and heavy duty slipper spring suspension. The coupler is a super duty three bolt cast iron unit. The frame is 6 in. channel with a 6 in. channel wrap around tongue. A tool box with a lockable lid, 17 in. cross-member spacing, stake pockets with a rub rail on the outside, and full reflective tape are all included. A US made sealed modular wiring harness with lifetime LED lighting assures trouble-free lighting on every 17000 GVWR Deluxe Wood Floor Tilt Equipment Trailer.
- US Made Sealco Harness. All Heavy Cable and Molded Connections. Ask Our Competitors To Show You THEIR Harness Before You Buy.
VIEW OUR ENTIRE LINE OF EQUIPMENT TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
SpecificationsG.V.W.R. | 17,000 GVWR |
Electrical | Sealed wiring harness with lifetime LED lights |
Frame | 6 in. Channel, with 3 in. channel crossmembers 17 in. on center |
Dovetail | N/A |
Upper Deck | N/A |
Side Rail | N/A |
Tongue | 6 in. Channel wrap around |
Tires | 215/75 R17.5 |
Floors | 2 in. Treated Wood |
Coupler | Super duty cast iron 2 5/16 adjustable coupler |
Safety Chains | Heavy duty safety chains |
Ramps | 29 in. Wide x 16 in. long beveled extensions |
Tie Downs | Stake pockets and Rubrail |
Deck Length | 22 ft. (8 ft. + 14 ft. 6 in. tilt deck with hydraulic cylinder) |
Deck Height | 26 in. |
Deck Width | 82 in. Between fenders |
Fenders | Diamond plate fenders |
Lower Deck | N/A |
Brakes | All wheel electric brakes |
Tailgate | N/A |
Wheels | Silver or white mod (Based on stock) |
Jack | 12,000 lb. Drop foot jack |
Axles | 2-8,000 lb. e-z lube axles |
Suspension | Slipper springs |
Toolbox | Chain box with lockable lid standard |
Finish | Primed, 2 coats of automotive grade enamel, pin striped |
Spare tire and rim (17.5) | $400.00 |
Adjustable 2-5/16 in. ball and pintle ring | $80.00 |
Fork holders (requires measurement information) | $200.00 |
Product Number | Length | Price | Additional Info |
---|---|---|---|
FDWT-8K-20D | 20 ft. | $8,580.00 | Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 17 in |
FDWT-8K-22D | 22 ft. | $8,590.00 | Tongue: 6 in. Channel Frame: 6 in. Channel Crosspiece: 3 in. Channel Centers: 17 in |
