Deluxe Drop Deck Flatbed Trailer
$23,490.00 Factory Direct

dropdeck-main-beam

Price Shown Does Not Include FET

Kaufman Trailers two axle Deluxe Drop Deck Flatbed Trailer is built with full length fabricated beam frames with pierced crossmember construction. These cambered beams are 24 in. deep in the main body and are manufactured with 80,000 psi high-tensile steel. Fleetcraft or Power Products 22,500 lb. airbrake oil bath axles ride on a Hutchens slipper spring suspension. A Haldex ABS braking system, spring brakes on both axles, and oak flooring are included. A Sealco modular wiring harness with lifetime LED lighting makes this top quality drop deck flatbed trailer a true industry leader and is built to last! Optional hydraulic ramps make this Deluxe Drop Deck Flatbed Trailer ideal for paving equipment.

VIEW OUR ENTIRE LINE OF FLATBED TRAILERS

CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444

Specifications
G.V.W.R.55,000 lb. - 11,000 lb. approx. empty wt., Capacity 44,000 lb. evenly distributed over full length of trailer. Concentrated load capacity is 40,000 lbs. in 12ft. of bed length.
ElectricalDOT approved lighting, US made sealed wiring harness, LED lights
Frame24 in. Fabricated main beam. Cambered, High Tensile, 1 piece from front to rear of trailer
Dovetail5 ft. Wood
Upper Deck10 ft. Oak deck, with 2 ft. Oak slope, and 46 in. jumper ramps stored under slope.
Side Rail8 in. channel
TongueN/A
Tires215/75 R17.5 LRH (4,540 lb.)
FloorsOak
CouplerSAE Kingpin hitch
Safety ChainsN/A

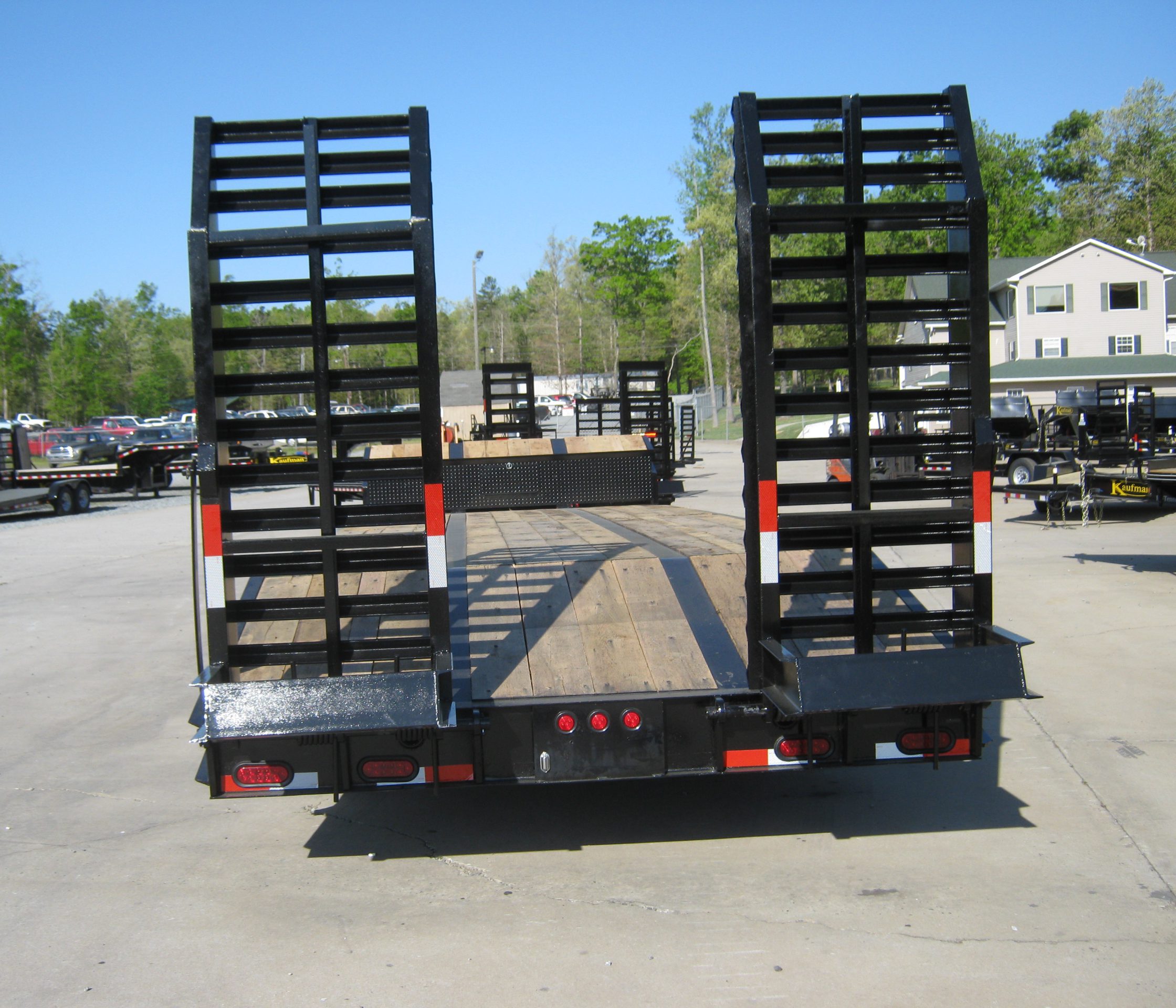

Ramps66 in. x 28 in. Heavy duty oak lined, swing-up 6 in. channel ramps with spring assist
Tie DownsD-rings
Deck Length39ft. 6in. (10 ft. upper, 2 ft. slope, 22 ft. lower, 5ft. dove)
Deck Height39 in. (loaded) - with side steps standard
Deck WidthMaximum 102 in.
FendersN/A
Lower Deck22 ft. Oak deck
BrakesAll wheel air brake with spring lock each wheel (ABS)
TailgateN/A
WheelsHeavy duty dual 17.5 in. wheels
Jack2-25,000 lb. Dual speed jacks
Axles2-22,500 Fleetcraft or Power Products oil bath axles
SuspensionHutchens slipper
ToolboxN/A
FinishPrimed, 2 coats of automotive grade enamel
Additional Options
Spare tire and rim$400.00
5 ft. Self-cleaning Dovetail$500.00
66 in. x 28 in. self cleaning cleated iron ramps (6 in. channel ramp runners)$300.00
72 in. x 28 in. Heavy duty wood lined ramps with spring assist (upgrades to 8" channel ramp runners)$300.00
72 in. x 28 in. Heavy duty cleated ramps with spring assist (upgrades to 8" channel ramp runners)$500.00
60 in. Wood-lined, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment.-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment.$500.00
60 in. Cleated, double-hinged, lay-flat ramps. Made heavy duty with channel framing for heavy equipment.$500.00
Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron - additional cost) Specify to your Sales Rep 5' OR 6' dovetail. 6' dovetail recommended for paving equipment$3,200.00
Additional Lengths
Product NumberLengthPriceAdditional Info
FAD-22.5K-39.5FabD39 ft. 6 in.$23,490.00Frame: 24in. Fabricated main beam
Crosspiece: 4 in. Channel, pierced
Centers: 16 in.
Side Rail: 8 in. Channel
Ramp Runners: 6 in. Channel
FAD-22.5K-43.5FabD43 ft. 6 in.$24,490.00Frame: 24in. Fabricated main beam
Crosspiece: 4 in. Channel, pierced
Centers: 16 in.
Side Rail: 8 in. Channel
Ramp Runners: 6 in. Channel
FAD-22.5K-47.5FabD47 ft. 6 in.$25,490.00Frame: 24in. Fabricated main beam
Crosspiece: 4 in. Channel, pierced
Centers: 16 in.
Side Rail: 8 in. Channel
Ramp Runners: 6 in. Channel
FAD-22.5K-51.5FabD51 ft. 6 in.$26,490.00Frame: 24in. Fabricated main beam
Crosspiece: 4 in. Channel, pierced
Centers: 16 in.
Side Rail: 8 in. Channel
Ramp Runners: 6 in. Channel
