If you’re in the market for a new trailer, you know there are a variety of options when it comes to features and accessories. One of those is the trailer wiring harness.

Trailer wiring harnesses come in two varieties to choose from—a sealed wiring harness or a standard wiring harness. Join the trailer accessories experts at Kaufman Trailers as we explore the differences between these trailer wiring harness options. We’ll answer frequently asked questions about trailer wiring and let you know how our trailer supply company can help you with your purchase so you can make an educated decision on the best accessories for your trailer.

Let’s dive into why wiring harnesses are important to tow an equipment trailer or any other trailer type you use for heavy-duty hauling.

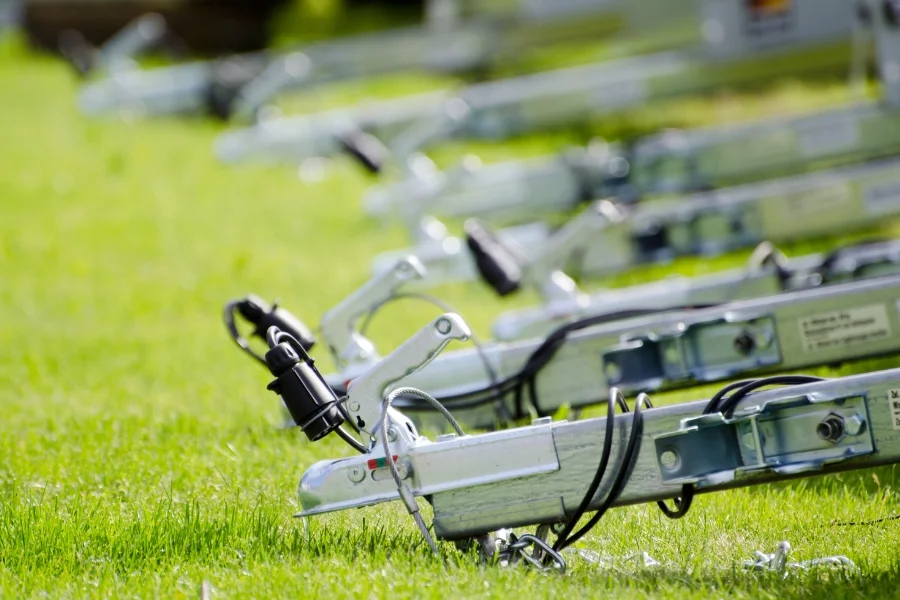

A trailer wiring harness that connects to a hauling vehicle, image for use for Kaufman Trailer's blog on sealed trailer wiring harness options

What is a Trailer Wiring Harness?

A trailer wiring harness is a set of wires and connectors specifically designed to connect a trailer to the towing vehicle’s electrical system. It allows the trailer to have functioning lights, including brake lights, turn signals, and sometimes auxiliary power.

The harness typically includes connectors that match the sockets on both the vehicle and the trailer, ensuring proper electrical connection and safe operation while towing. This setup ensures that the trailer’s lights operate synchronously with the utility trailer, or other trailer type, enhancing safety and compliance with road regulations.

Sealed Wiring Harness vs. Standard Wiring Harness

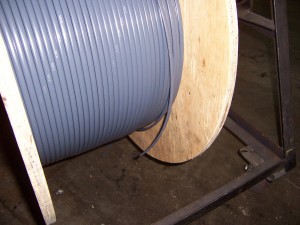

A standard trailer wiring harness provides basic electrical connections between the vehicle and the trailer. A standard trailer wiring harness consists of three plastic-coated wires in a plastic sheath. The finishers pull these off a big reel, string through the wire holders under the trailer, and then use butt connectors to the lights. It’s important to note that this system is not covered under warranty.

When you’re looking at the sealed wiring harness options at Kaufman Trailers, we suggest a pre-manufactured unit made by Sealco Manufacturing, as they offer a one-year warranty on their wiring systems for trailers. Sealed trailer wiring harnesses are designed for durability and protection against harsh environments. It uses a heavier gauge wire and has a heavy-duty rubber coating with plug-in connections that are sealed against moisture, dirt, and corrosion, making them ideal for trailers used in rugged or wet conditions.

Benefits of a Sealed Trailer Wiring Harness

Many people find that the sealed trailer wiring harness is the easiest trailer wiring option for the many benefits it has.

These include:

  • Protection against corrosion, moisture, and dirt
  • Wire protection from the weather
  • The lifespan of your wiring harness is longer because it’s protected.
  • Sealing wiring harnesses often come with warranties.
  • Color-coded for easy verification

Drawbacks of a Sealed Trailer Wiring Harness

While there are many benefits to using a sealed wiring harness for your trailer, there are also several drawbacks.

Here are some things to consider:

  • Cannot see the wires if there is an issue
  • Have to cut into the sheath to get to the wires

Ultimately, you need to decide whether the benefits of having your wiring sealed (protection from weather, moisture, etc.) outweigh the disadvantages of not being able to see the wires when there is a problem. If you don’t foresee this being a major issue, then you would want to proceed with the sealed trailer wiring harness option vs a standard one.

Understanding Types of Trailer Wiring Harness Options

Aside from choosing between standard vs sealed trailer wiring harness options, there are three options to choose from:

  • Custom Wiring
  • Splice-in Wiring
  • Replacement Plugs and Sockets


A custom-wiring harness is a vehicle-specific harness that plugs in without any splicing required. It will provide a standard connector output as well. This is the optimal solution when you want to install trailer light wiring on your vehicle.

Splice-in Wiring

Taillight converter splice-in wiring is another option if custom wiring is not available for your make and model. This connection splices into your vehicle to provide a standard trailer plug wiring connector.

Replacement Plugs and Sockets

Finally, you can use a replacement plug and socket if the trailer plug wiring on your vehicle or trailer isn’t working or is damaged. Plugs and sockets can be spliced into our existing trailer plug wiring.

FAQ Regarding Wiring Harness and Towing

Q: Can you tow a vehicle without a trailer wiring harness?

A: No. Any vehicle that tows a trailer, such as a car trailer needs a trailer wiring harness. This safely connects the taillights, turn signals, brake lights, and other electrical systems.

Q: What is the purpose of a trailer wiring harness?

A: The trailer wiring harness connects the brake lights, tail lights, and other electrical systems to ensure your trailer is compliant with safety regulations and highway expectations. It is the safest way to make sure your trailer is towing vehicles properly.

Image of green, red, yellow, and blue utility wires for use in a blog on trailer wiring harness options at Kaufman Trailers

Q: What do the different colors on the trailer wiring harness mean?

A: When you’re talking about a trailer wiring harness, four-way wiring is common and most suitable for light-duty trailers. There are four different color wires here: green, yellow, white, and brown. The white wire is the ground wire and the brown wire is for the trailer’s tail lights.

If there is a five-way wiring system, there is an added blue light for the brakes. This is typically for surge brakes that are built into a trailer or camper.

Six-way wiring includes a wire that is used for a fuse block or a fused battery lead. These are common on horse trailers and used to run a fan. There is also seven-way wiring that allows for connections such as hydraulic couplers.

Q: What is the blue wire on a trailer harness?

A: The blue wire on a trailer harness is an auxiliary wire. People use this wire when they want to connect the reverse lights from the tow vehicle to the reverse lockout solenoid. This is found right behind the surge brake actuator. When this wire is connected properly, you can disengage the trailer brakes to back up the trailer without getting out of the vehicle.

Q: How much does it cost to replace a trailer wiring harness?

A: The cost of the actual trailer wiring harness can cost you anywhere between $10-$50. That’s only a fraction of the final price. You need to factor in labor costs which will vary depending on the installer.

Q: What causes trailer wiring harness failure?

A: If a trailer wiring harness isn’t working it can be due to design mistakes, manufacturing mistakes, or poor-quality materials that were used.

If the wiring size doesn’t meet the amperage and wattage demands or if the initial measurements are off, it can lead to problems such as overheating and other serious issues. There can also be manufacturing mistakes if there are incorrect settings, poor connections, or improper wire layouts. Defective crimping or soldering can also be a problem.

Finally, if cheap materials are used, it can lead to trailer wiring harness failure. Always know what you’re really buying and what types of materials were used to prevent any problems.

Purchase a Trailer with a Sealed Trailer Wiring Harness Today!

At Kaufman Trailers you’ll find that air brake trailers, open-center gooseneck trailers, and tag-a-long two-car haulers all come standard with a sealed trailer wiring harness. Sealed wiring is also an option on all wedge trailers, equipment deckovers, and our 22-foot tilt trailer

To learn more about the various trailer wiring harness options available, call us today at 866-455-7444 or reach out to us online to speak to one of our knowledgeable sales representatives who will be more than happy to help you.
