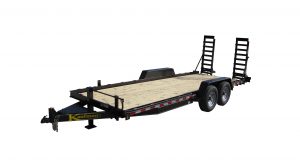

15000 GVWR Deluxe Wood Floor Skid Steer Trailer – 20 ft.
$5,490.00 Factory Direct
Our 15000 GVWR Deluxe Wood Floor Skid Steer Trailer is built with a 6 in. x 4 in. x 3/8 in. angle iron frame, 6″ channel full length wrap around tongue, a 12,000 lb. drop foot jack and a heavy duty cast iron adjustable coupler. Running gear is 7,000 lb. four wheel brake axles with heavy duty slipper spring suspension and 235/80 R16 load range E tires. A tool box with a lockable lid, stake pockets with rub rail, and heavy gauge diamond plate fenders are all included. We beef up the ramps with 4 in. channel ramp runners and include spring assist. Trouble free lighting is assured with a US made sealed modular wiring harness and lifetime LED lighting.
Contact our customer service team today to find out how easy it is to have a 15000 GVWR Deluxe Wood Floor Skid Steer Trailer delivered direct to your location.
Premium USA made tires – upgrade now available – see options
TRAILER IS SHOWN IN OPTIONAL YELLOW.
VIEW OUR ENTIRE LINE OF EQUIPMENT TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications| G.V.W.R. | 15,000 lb. |
| Electrical | Sealed modular wiring harness with LED lights |
| Frame | 4x6x3/8 angle frame, with 3 in channel crossmembers |
| Dovetail | N/A |
| Upper Deck | N/A |
| Side Rail | N/A |
| Tongue | 6 in. Channel wrap around |
| Tires | 235/80 R16 LRE (3,520 lb.) |
| Floors | 2 in. Treated Wood |
| Coupler | 2-5/16 in. Adjustable cast iron ball coupler |
| Safety Chains | Heavy duty safety chains |
| Ramps | 60 in. x 20 in. heavy duty flip up ramps - 4 in. channel ramp runners - with spring assist |
| Tie Downs | Stakepockets, and d-rings on headboard |
| Deck Length | 20 ft. |
| Deck Height | 21 in. |
| Deck Width | 82 in. between fenders |
| Fenders | Diamond plate femders |
| Lower Deck | N/A |
| Brakes | All wheel electric brakes |
| Tailgate | N/A |
| Wheels | Silver or white mod (Based on stock) |
| Jack | 12,000 lb. Drop foot jack |
| Axles | 2-7,000 lb. e-z lube axles |
| Suspension | Slipper springs |
| Toolbox | Chain box with lockable lid standard |
| Finish | Primed, 2 coats of automotive grade enamel, pin striped |
| Spare tire and rim | $190.00 |
| Load Range G (14 ply rating) all-steel radials (Chinese made - good quality) | $340.00 |
| Load Range G (14 ply rating) all-steel radial - spare tire (Chinese made - good quality) | $275.00 |
| Premium 235/85 R16 LRE USA made tires - Cooper Discoverer HT3 in NC - Firestone Transforce in NE | $380.00 |
| Premium 235/85 R16 LRE USA made spare tire - Cooper Discoverer HT3 in NC - Firestone Transforce in NE | $285.00 |
| Gooseneck | $700.00 |
| 6K Winch | $950.00 |
| 9K Winch | $1,150.00 |
| 20,000 GVWR Heavy Duty Package - Includes 3/7,000 lb. axles, required flat adjustable nose plate with pintle ring coupler, standard 6 in. channel frame with 5 in. channel frame doubler, 16 in. on center crossmembers, and heavy duty spring assist ramps (***Premium tire upgrade for this option requires special quote***) | $1,400.00 |
| No ramps (Straight deck) *Special deposit required | $-80.00 |
| Spring assist on ramps | $60.00 |
| Wood lined ramps - 60 in. x 20 in. | $100.00 |
| Adjustable 2-5/16 in. ball and pintle ring | $50.00 |
| Fork holders (requires measurement information) | $200.00 |
| 5 ft. Heavy duty spring assist split gate (Capacity 13,000 lb. piece of equipment) | $500.00 |
| Product Number | Length | Price | Additional Info |
|---|---|---|---|
| FSW-7K-16D | 16 ft. | $5,470.00 | Frame: 4x6x3/8 in. Angle Tongue: 6 in. Channel Crosspiece: 3 in. Channel Centers: approx. 16 in. |
| FSW-7K-18D | 18 ft. | $5,480.00 | Frame: 4x6x3/8 in. Angle Tongue: 6 in. Channel Crosspiece: 3 in. Channel Centers: approx. 16 in. |
| FSW-7K-20D | 20 ft. | $5,490.00 | Frame: 4x6x3/8 in. Angle Tongue: 6 in. Channel Crosspiece: 3 in. Channel Centers: approx. 16 in. |
