16000 GVWR Deluxe Flatbed Trailer – 22 ft.
$7,990.00 Factory Direct
Trailer Description

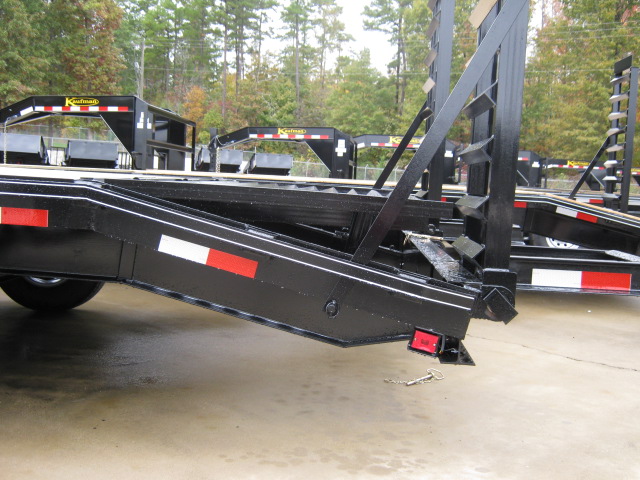

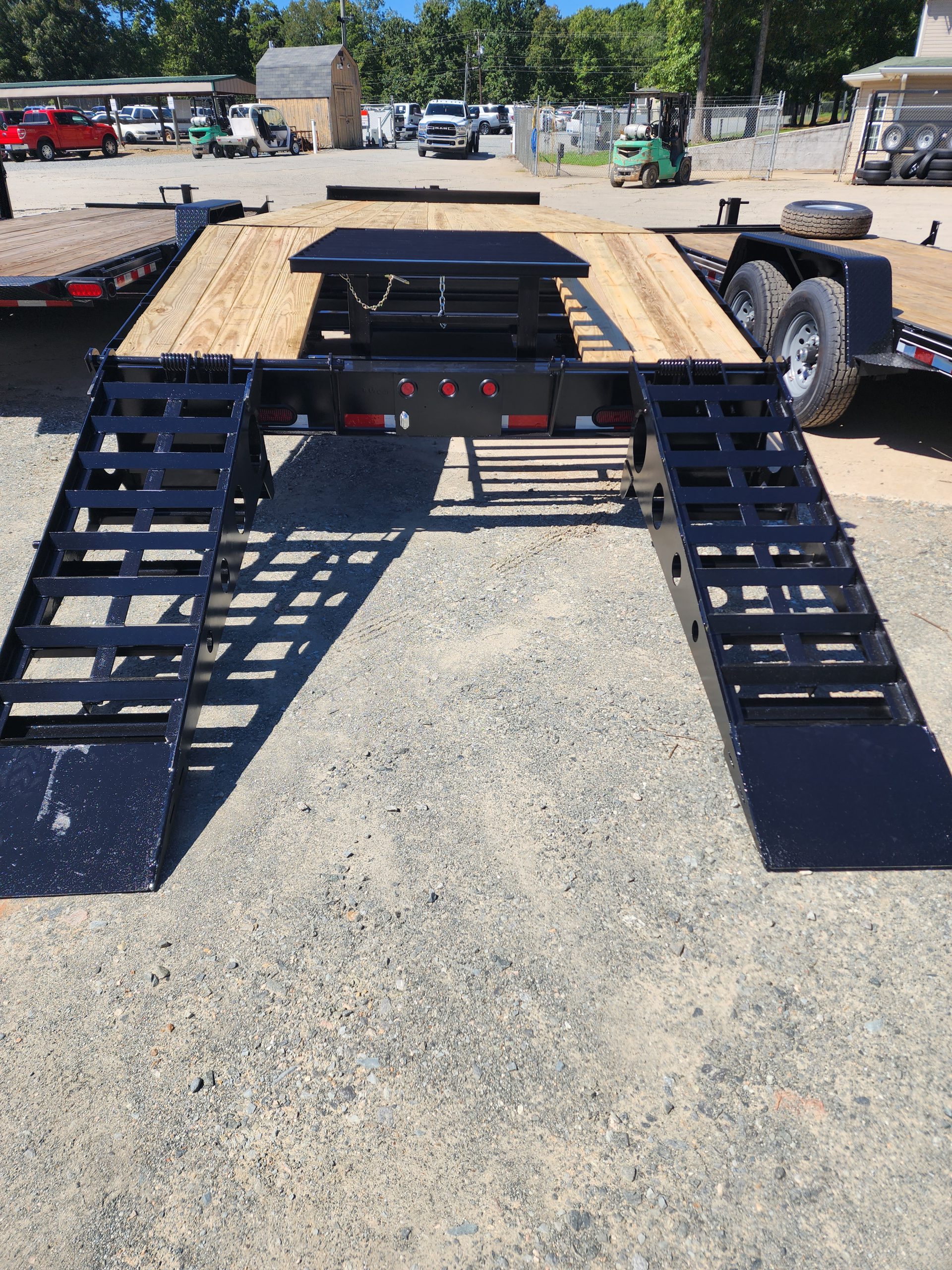

Kaufman’s heavy duty 16000 GVWR Deluxe Flatbed Trailer is built with a 10 in. I-beam mainframe. Crossmember spacing is 18 in. centers on the 3 in. channel cross-members with 6″ outer rails. This trailer has 18 ft. of flatbed with a 4 ft. dovetail and 5 ft. cleated swing up ramps for easy loading of equipment. The ramps are beefed up to 4 in. channel ramp frame runners. If ordered with the lay flat ramps, the dovetail is 6′ of the total trailer length. The tongue is cold formed in a hydraulic press for a one-piece main frame and tongue with stacked crossmembers. Two 7,000 lb. electric brake axles with heavy duty slipper spring suspension, and 16 in. radial tires provide a durable and long lasting gear. The lighting package upgrades to a US made sealed modular wiring harness with lifetime LED lighting. This Deluxe model includes a tool tray with a lockable lid. A heavy duty 12,000 lb. drop foot jack, stake pockets on the rub rail, treated wood flooring and an adjustable pintle ring on a heavy duty nose-plate complete the package deal on this 16000 GVWR Deluxe Flatbed Trailer.
Kaufman Trailers expert customer service team can help with all your trailer needs.
A very popular option for this 16000 GVWR Deluxe Flatbed Trailer is our SUPER DUTY axle/tire upgrade. This includes general duty 8,000 lb. axles and load range H 17.5″ tires on heavy duty wheels. The 8,000 lb. axles feature thicker, high tensile axle beam, larger bearings, and 5/8″ studs.
VIEW OUR ENTIRE LINE OF FLATBED TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications| G.V.W.R. | 16,000 lb., with H-D plate and pintle eye. 15,000 lb. with adj. 2-5/16 ball |

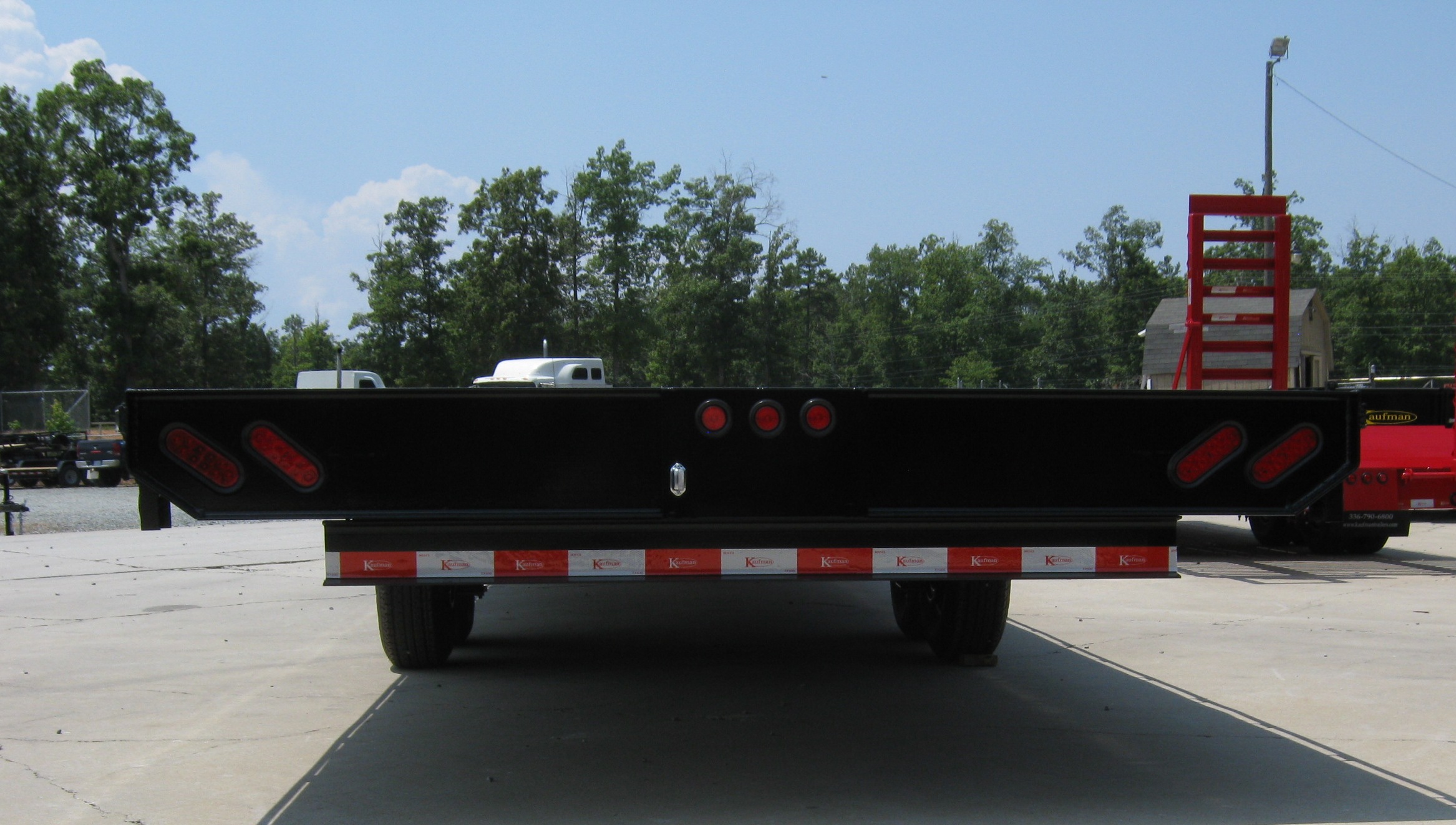

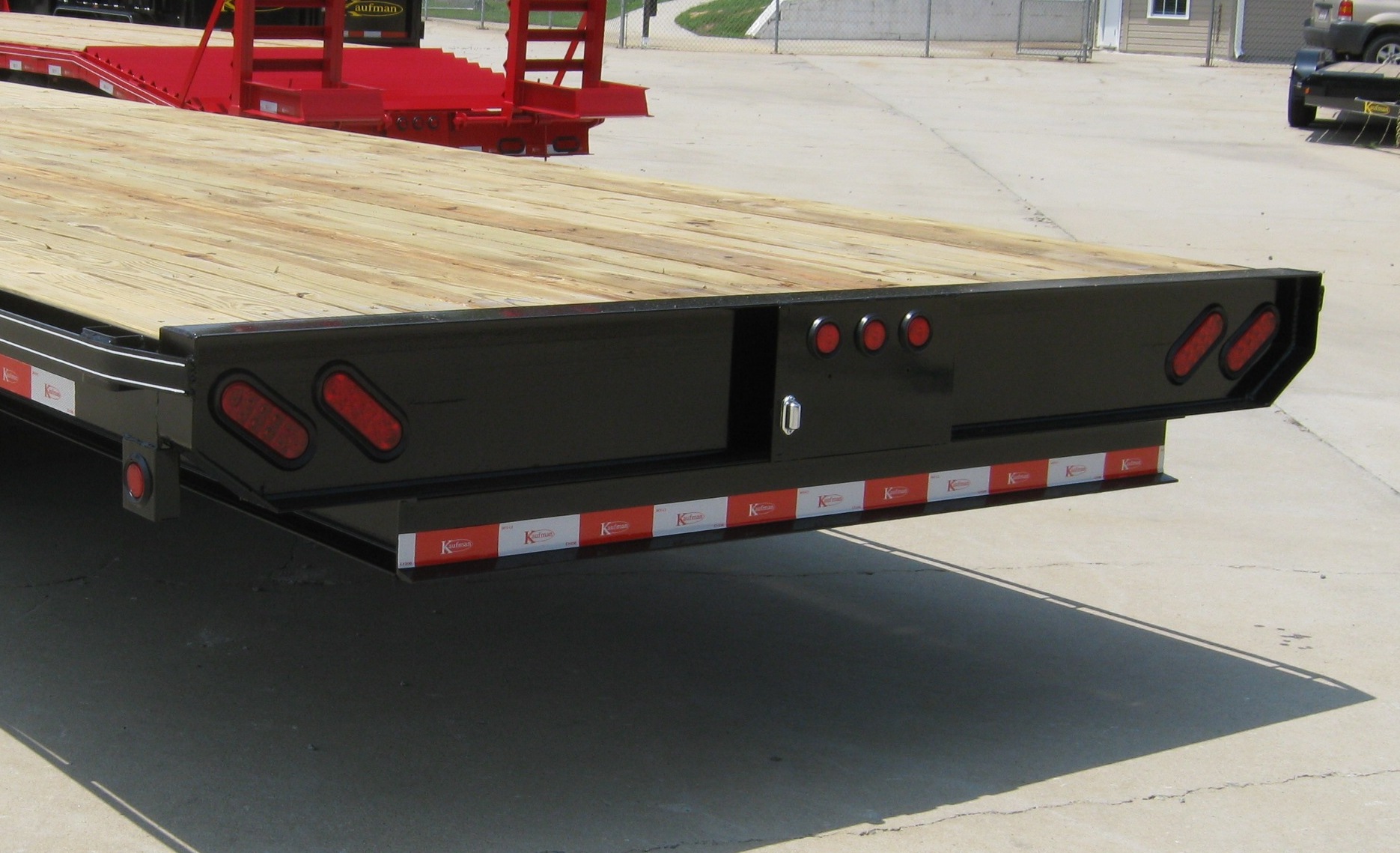

| Electrical | Sealed modular wiring harness with LED lights |
| Frame | 10 in. I-beam, with 3 in. channel crossmembers 17 in. on center |
| Dovetail | 4 ft. Wood Dove (6 ft. with lay flat ramps option) |
| Upper Deck | N/A |
| Side Rail | 6 in. flatbar |
| Tongue | Cold formed |
| Tires | 235/80 R16 LRE (3,520 lb.) |
| Floors | 2 in. Treated Wood |
| Coupler | Adjustable pintle eye |
| Safety Chains | Heavy duty safety chains |
| Ramps | 60 in. x 18 in. Flip up ramps, with spring assist. 4 in. channel ramp runners with 2x2x3/16ths cleats. |
| Tie Downs | Stake pockets and Rubrail |
| Deck Length | 22 ft. (18 ft. flat + 4 ft. dovetail) |
| Deck Height | 35 in. with side steps |
| Deck Width | Maximum 102 in. |
| Fenders | N/A |
| Lower Deck | N/A |
| Brakes | All wheel electric brakes |
| Tailgate | N/A |
| Wheels | Silver or white mod (Based on stock) |
| Jack | Single 12,000 lb. drop foot jack |
| Axles | 2-7,000 lb. e-z lube axles |
| Suspension | Slipper springs |
| Toolbox | Chain box with lockable lid standard |
| Finish | Primed, 2 coats of automotive grade enamel, pin striped |
| Spare tire and rim | $230.00 |
| Spare tire and rim (17.5 upgrade) | $400.00 |
| Load Range G (14 ply rating) all-steel radials | $500.00 |
| Load Range G (14 ply rating) all-steel radial - spare tire | $300.00 |
| Torque tube - recommended with extra length | $100.00 |

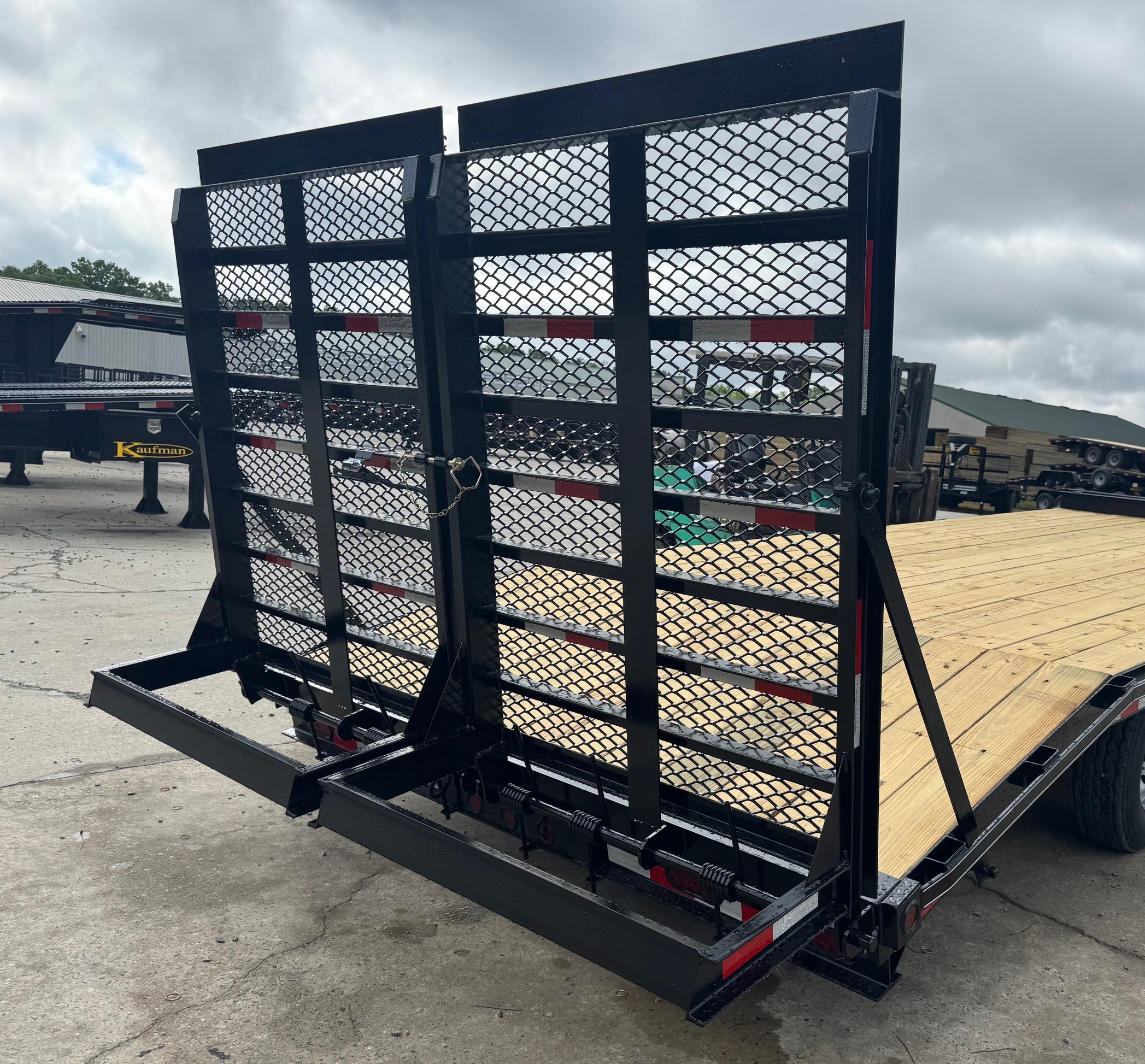

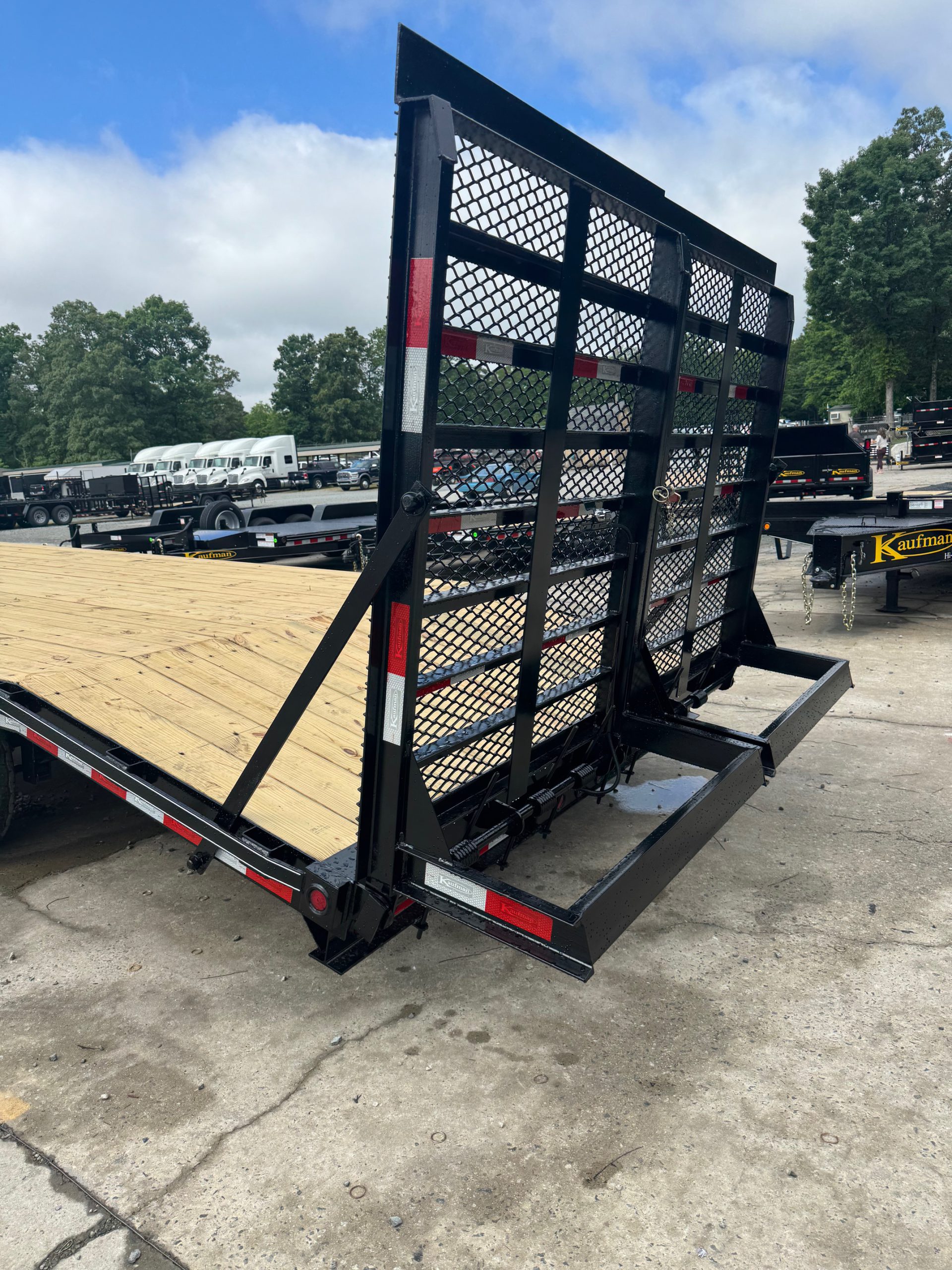

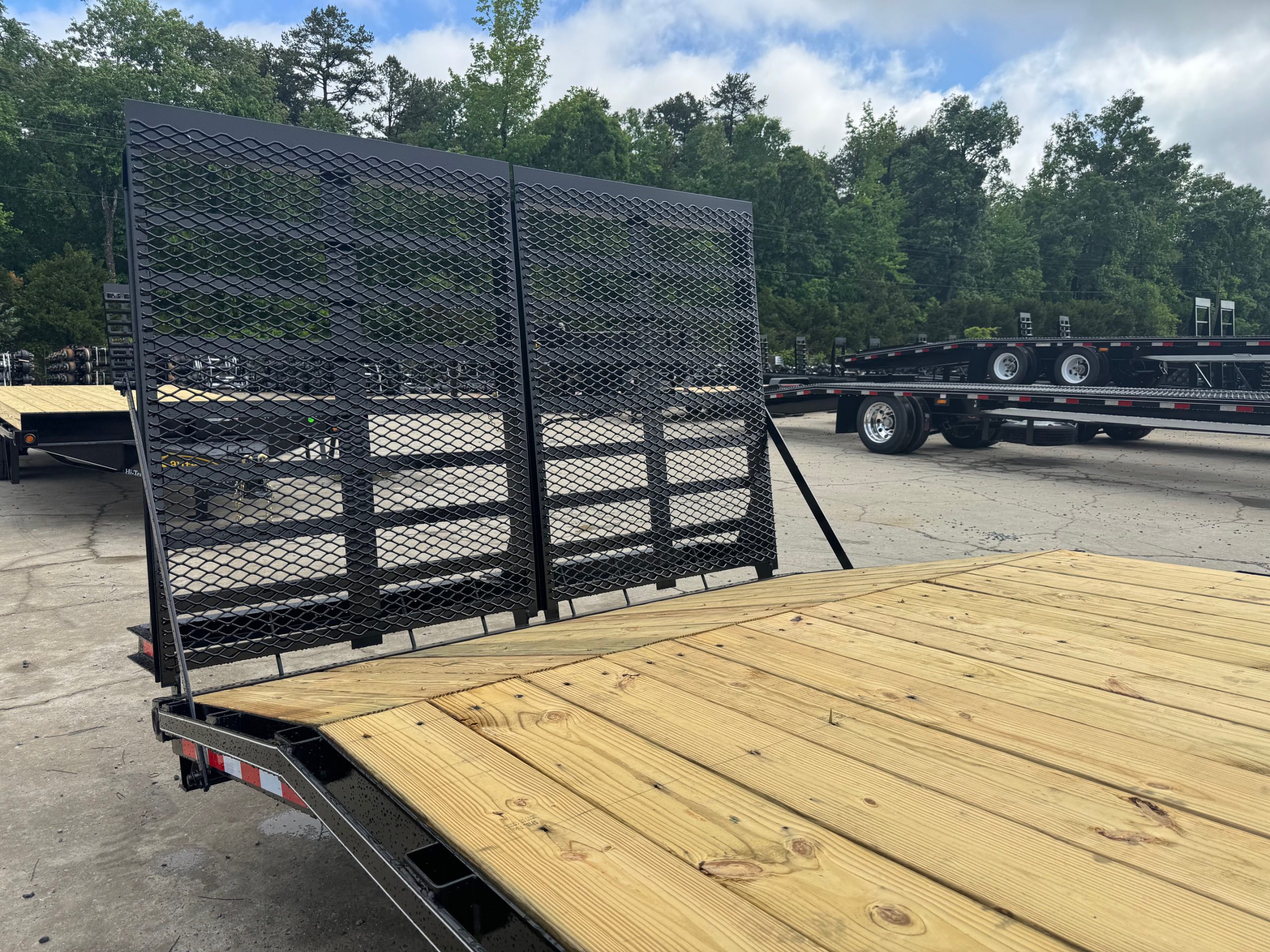

| 5 ft. Heavy duty spring assist split gate (Capacity 13,000 lb. piece of equipment) | $700.00 |

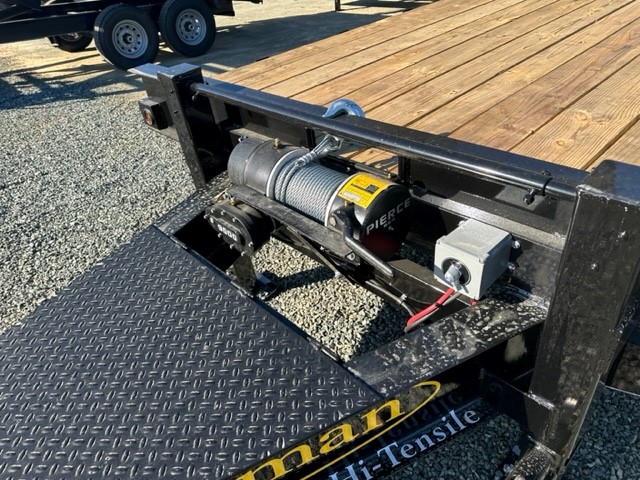

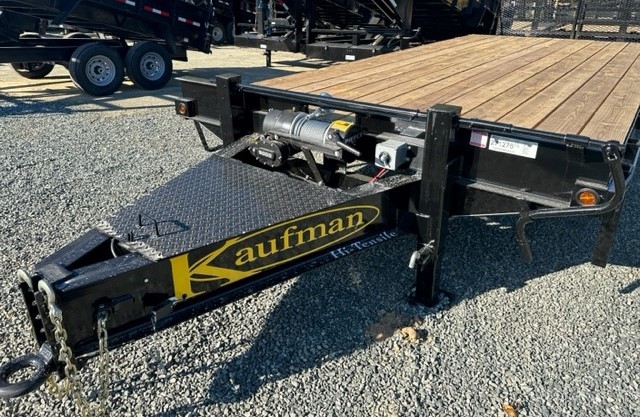

| 9K Winch | $1,250.00 |
| Sliding 4 in. ratchets (each) - requires sliding track | $30.00 |
| Sliding track for ratchets (per foot) | $30.00 |
| Dual 12K jacks | $140.00 |
| Dual 12K two speed jacks | $290.00 |

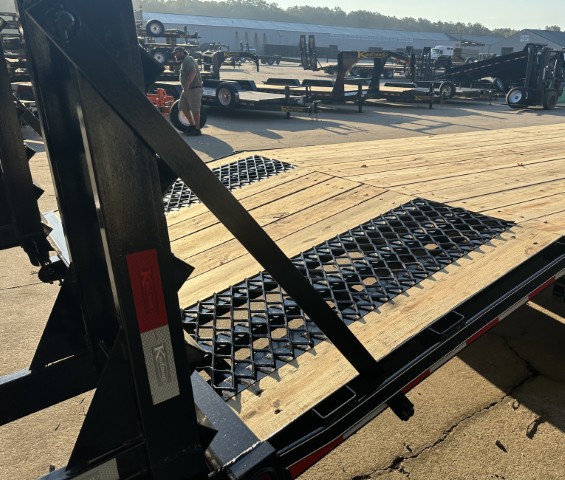

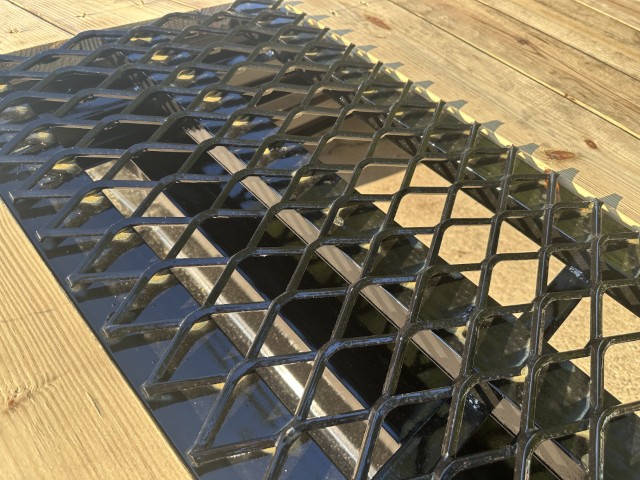

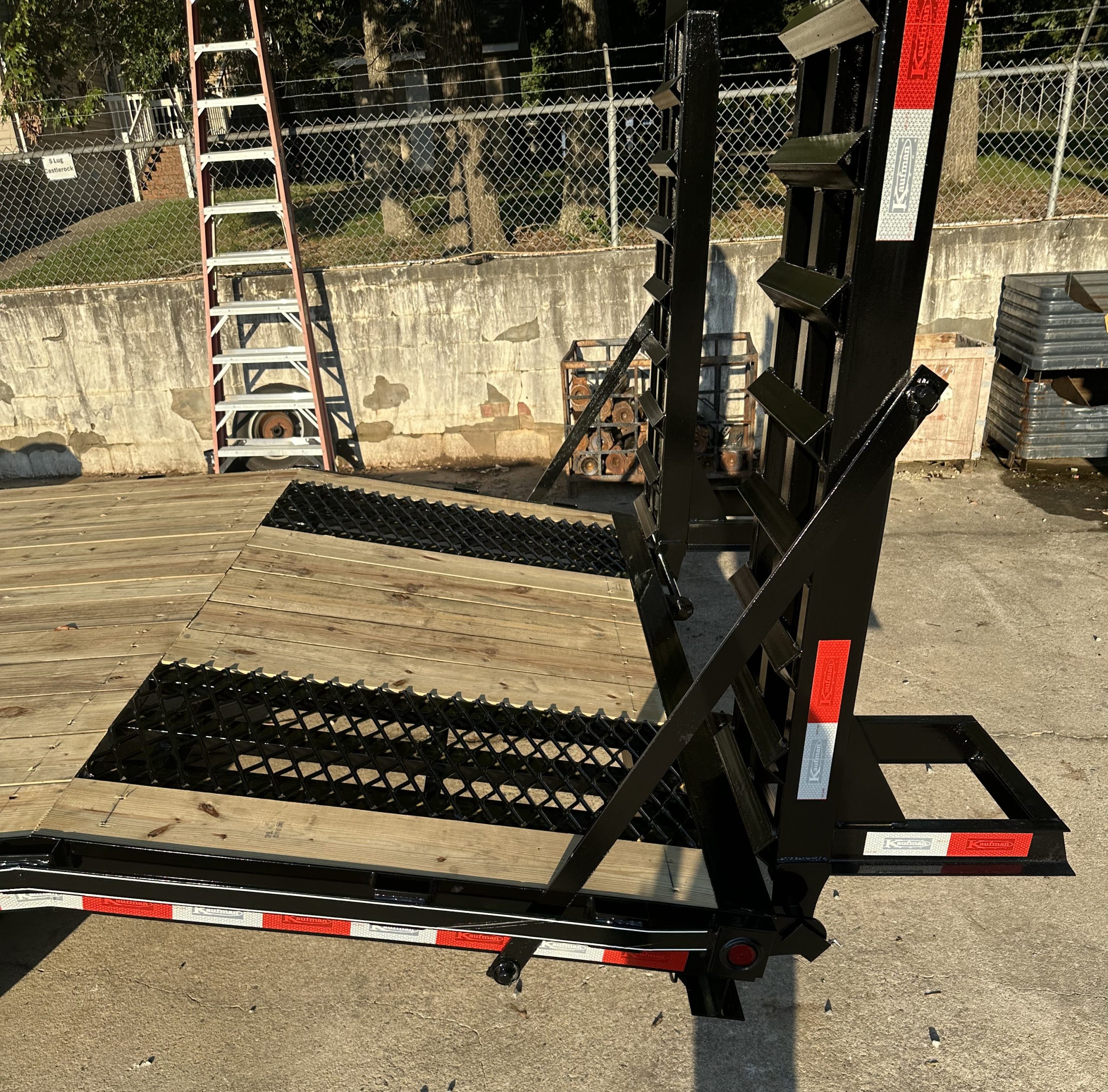

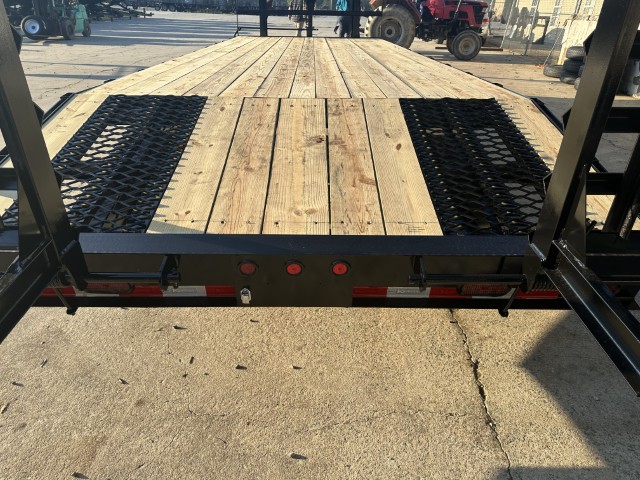

| Ridged Metal Traction Dovetail (2 - 22" x 48" HD ridged mesh inserts in dovetail) | $200.00 |
| No dovetail and no ramps (Straight deck) *Special deposit required | $-99.00 |

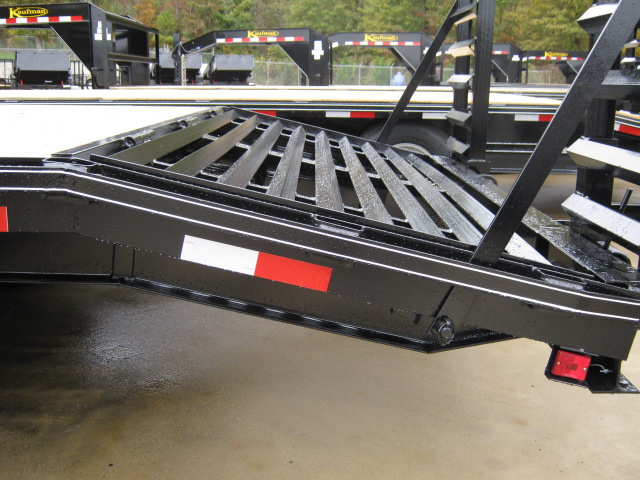

| 4ft. Self cleaning cleated dovetail | $300.00 |
| 6ft. Self cleaning cleated dovetail (required if ordered with 6ft. lay flat ramps) | $450.00 |

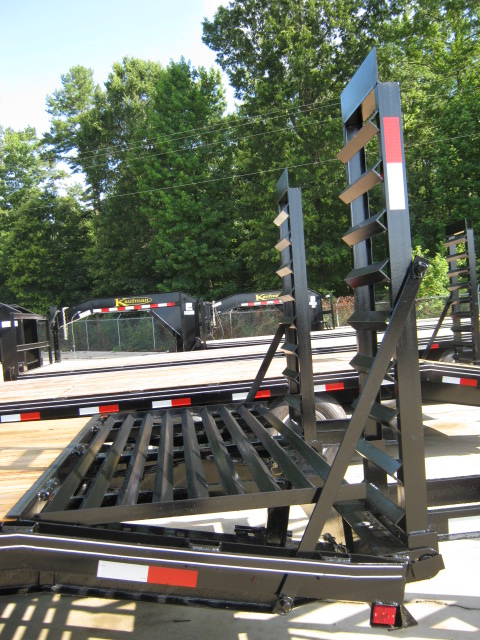

| Pop-up cleated dovetail (18 ft. flat + 4 ft. pop-up dove) | $400.00 |
| Third swing up ramp | $200.00 |
| Slide-in ramp for tri-axle tractor | $200.00 |

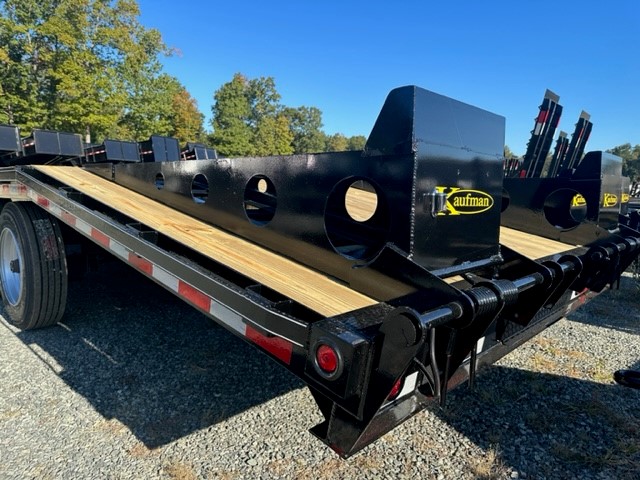

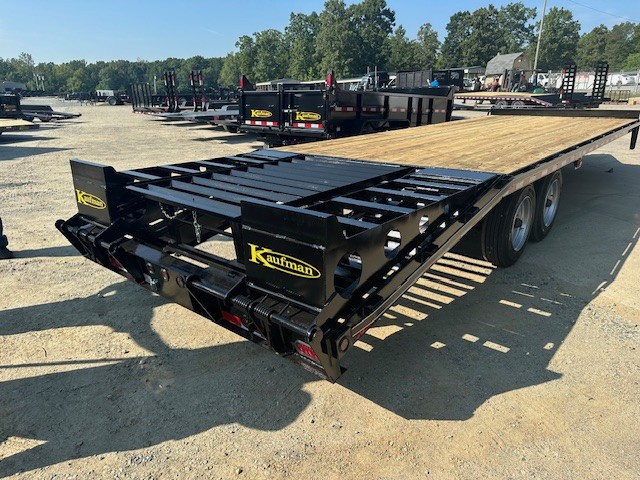

| 2 72" Wedge shaped, lay-flat spring assist ramps (Flat length of trailer is shortened by 2ft. to make 6ft. dovetail) | $400.00 |
| 3 - 6 ft. Wedge shaped, lay-flat spring assist ramps (Flat length of trailer is shortened by 2ft. to make 6ft. dovetail) | $700.00 |
| 6 ft. Wedge shaped, lay-flat spring assist ramps WITH cleated center popup (Flat length of trailer is shortened by 2ft. to make 6ft. dovetail) | $700.00 |
| Fork holders (requires measurement information) | $200.00 |
| Capacity upgrade with 8,000 lb. general duty axles, and 215/75 R17.5 tires | $1,000.00 |
| Product Number | Length | Price | Additional Info |
|---|---|---|---|
| FP-7K-22D | 22 ft. | $7,990.00 | Tongue: Cold Formed Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 17 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel |
| FP-7K-24D | 24 ft. | $8,290.00 | Tongue: Cold Formed Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 17 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel |
| FP-7K-26D | 26 ft. | $8,590.00 | Tongue: Cold Formed Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 17 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel |
| FP-7K-28D | 28 ft. | $8,890.00 | Tongue: Cold Formed Frame: 10 in. I-beam Crosspiece: 3 in. Channel Centers: 17 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel |
| FP-7K-30D | 30 ft. | $9,190.00 | Tongue: Cold Formed Frame: 12 in. I-beam, with torque tube Crosspiece: 3 in. Channel Centers: 17 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel |
| FP-7K-35D | 35 ft. | $10,490.00 | Tongue: Cold Formed Frame: 12 in. I-beam, with torque tube Crosspiece: 3 in. Channel Centers: 17 in. Side Rail: 6 in. flatbar Ramp Runners: 4 in. Channel |
